CRL Drill-Thru Trim Ring Support Bracket
CRL Drill-Thru Trim Ring Support Bracket
Regular price
$9.66 CAD
Regular price
Sale price
$9.66 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# Y033TR
Shipping Weight: 0.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 0.64 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Brushed Stainless Steel
Material
Stainless Steel
Overview
- Provides "Frameless" Look
- Component to CRL's Cable System for 3/8" to 1/2" (10 to 12 mm) Glass

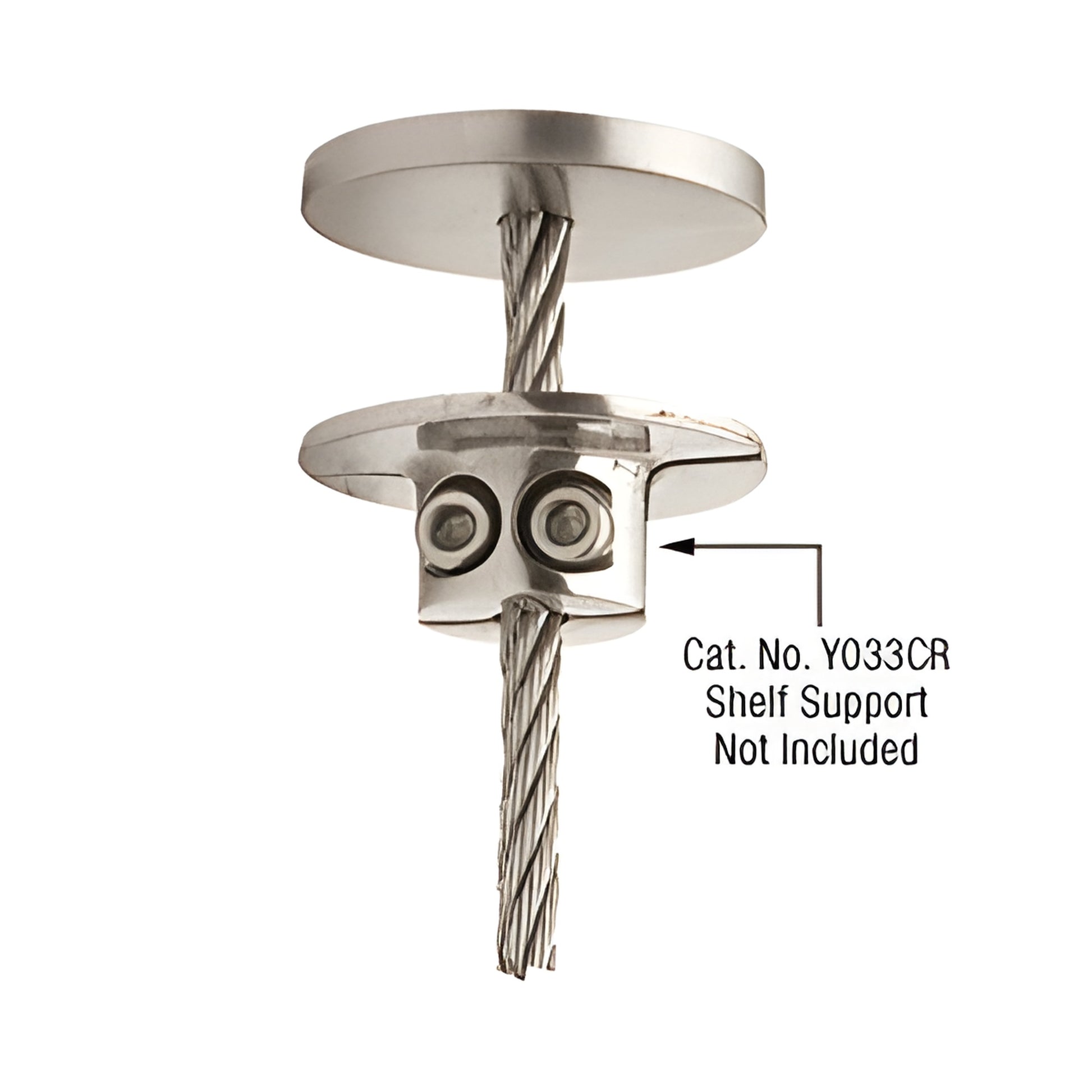

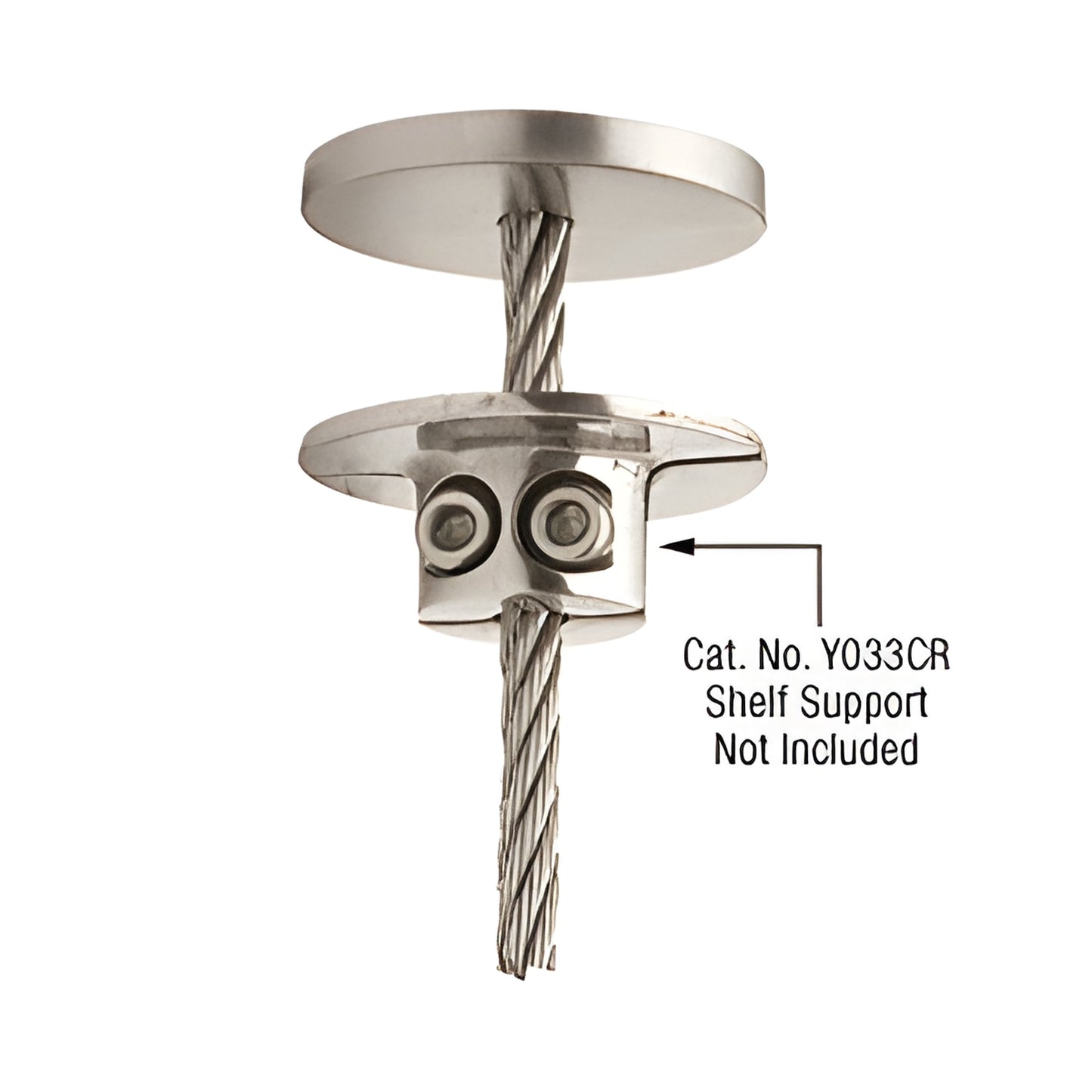

CRL’s Trim Ring Drill-Thru Shelf Support for 1/2" (12 mm) glass shelves is a two-part stainless steel clamp that fastens to the cable with two socket head screws. The trim ring sits above the glass to cover the drill hole and deliver a clean, finished appearance ideal for frameless glass shelving and cable railing systems. The Drill-Thru Support requires a 1/2" (12 mm) diameter hole for the cable and provides a 175 lb. (79.4 kg) weight capacity per support—making it a robust stainless steel clamp option for display shelves and architectural glass installations.
SKU: Y033TR
Stainless Steel Advisory:
Although stainless steel is corrosion resistant, it is not completely rust- or stain-proof. CRL recommends periodic maintenance to preserve the factory finish. For full details, see the Stainless Steel Disclaimer in the Technical References section below.
Order the Trim Ring Drill-Thru Shelf Support (SKU Y033TR) for durable, finished frameless glass shelving solutions.
