CRL DRS 1202 Black Bronze Pivot Closer F3 Hold-Open for 1/2" Glass
CRL DRS 1202 Black Bronze Pivot Closer F3 Hold-Open for 1/2" Glass
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D12023DU12
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Overview
- Maximum panel weight: 176 lbs (80 kg)
- Opening force: 9.5 lbs (4.3 kg)
- Includes top and bottom pivot
- Optional top and bottom low-profile rails, with or without locks
- Custom fabricated to meet your design requirements
- Unique hydraulic closing device located in the vertical pivot rail
- Optional transom hardware sold separately

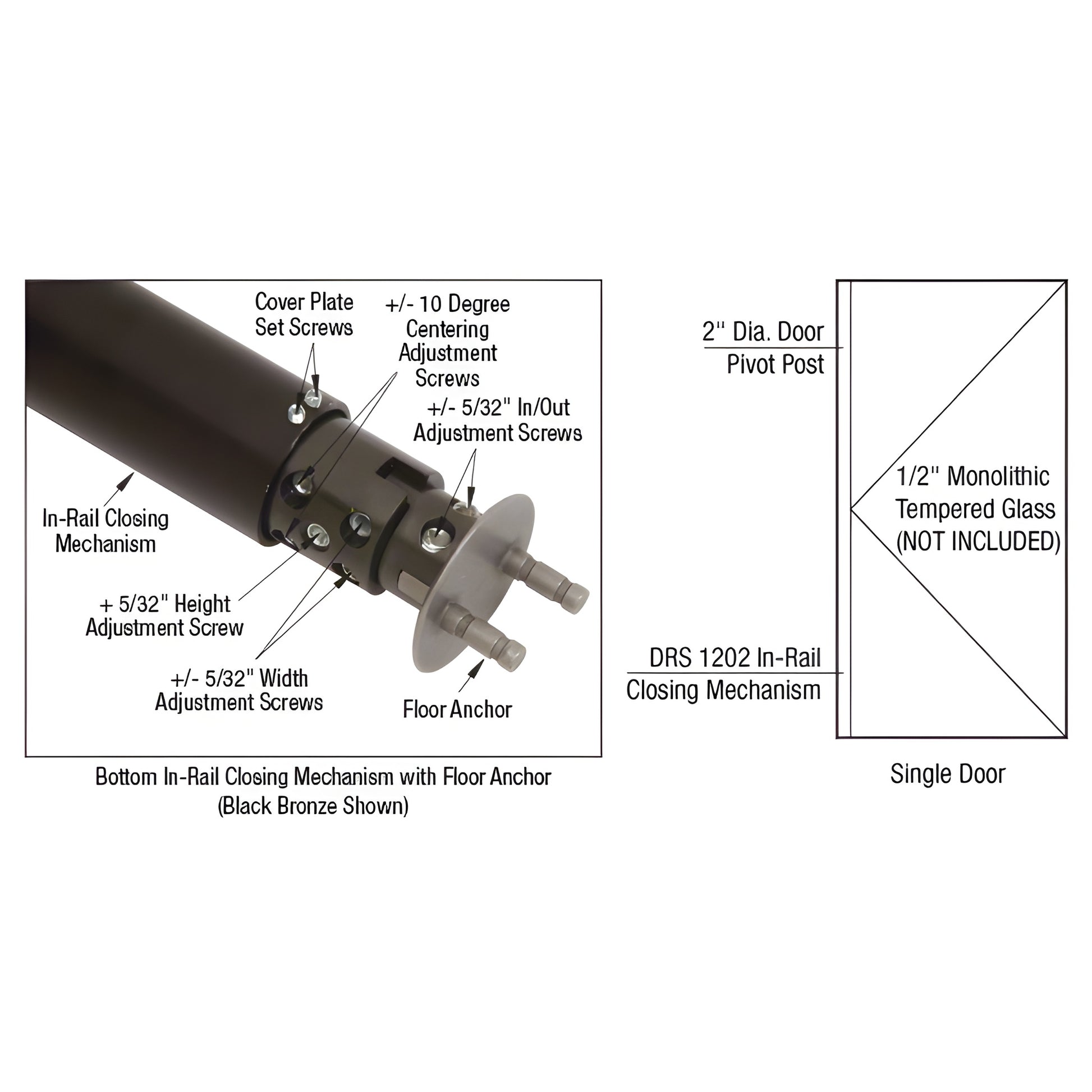

CRL DRS 1202 Series Doors — Frameless glass door pivot system with a full-height vertical pivot tube housing a fully adjustable hydraulic closer. Doors can be manufactured up to 96" (2.44 m) tall as a single door or pair without traditional top or bottom rails. Optional transom hardware supports openings up to 127" (3.23 m) tall; compatible with adjacent sidelites for flexible storefront and interior glass applications. SKU: D12023DU12.
Request a quote or contact CRL Customer Service to specify custom dimensions and hardware options.
Specifications
CAD Drawings - pdf
