Product Details
- Allows +/- 2 degrees of angle adjustment for precise alignment
- Rail bodies come prepped for floor locks and Blumcraft® panic handles
- 3/16" (5 mm) of side-to-side adjustment in either direction
- Side Covers can be slid on and off without removing the door from the pivot
- 2 Rail Bodies
- 1 Slide Block
- 2 - 48"" Side Covers
- 8' Gasket roll
- 2 End Caps

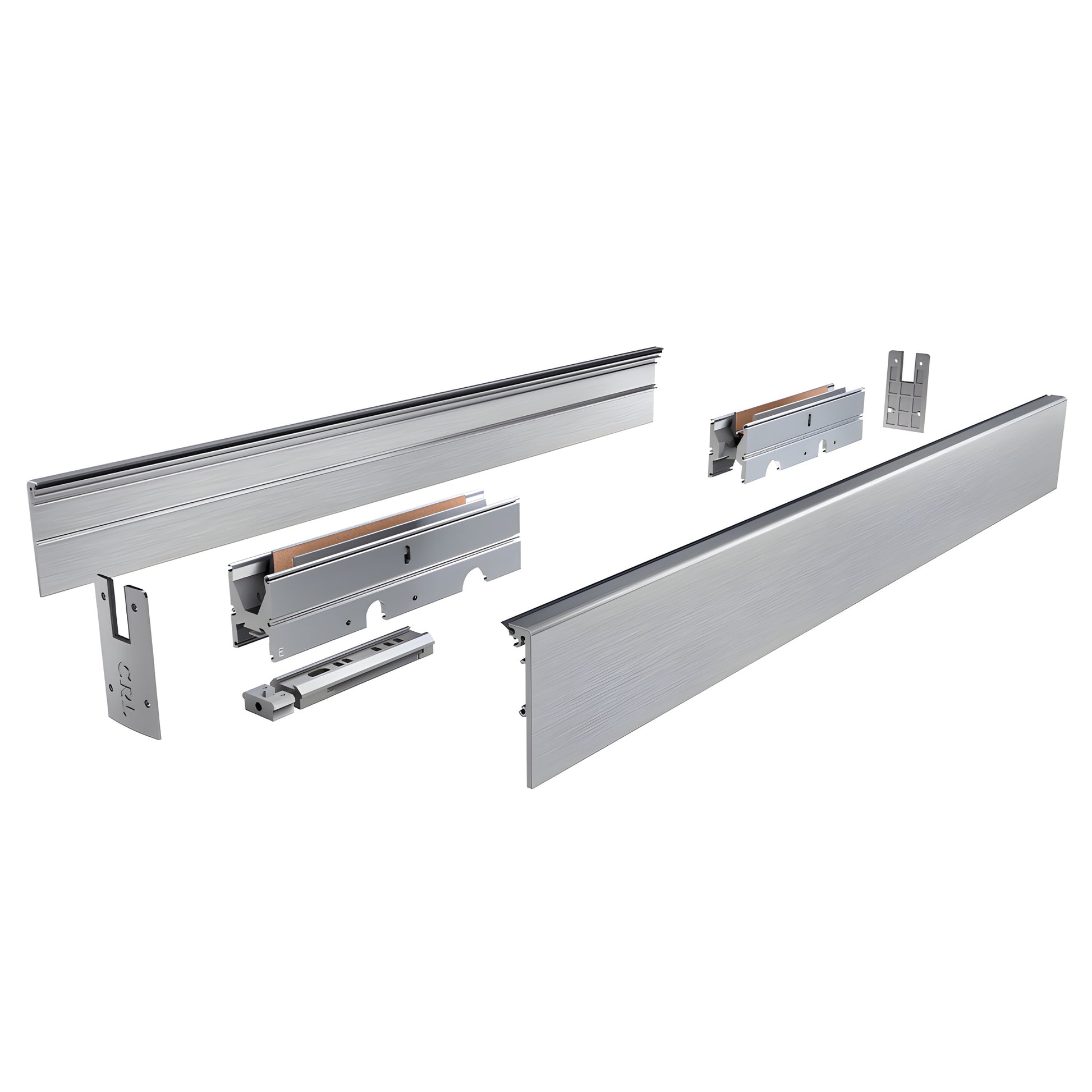

The CRL DRX™ Modular Door Rail System is a revolutionary dry-glaze door rail solution specifically designed to deliver maximum flexibility and customization with minimal lead times. The patented, modular system deconstructs a standard door rail to offer greater control over when, where, and how door rails are installed.
Two individual DRX™ door rail bodies are secured to the glass panel, no matter the length. Side covers and end caps are easily attached during or after door installation. This break-through innovation provides versatility, faster lead times, and easier on-site installation.
Each DRX Kit includes
Stainless Steel Advisory:
Although Stainless Steel is resistant to corrosion, it is not rust or stain proof. CRL recommends periodic maintenance to help maintain its factory finish. For more information, view the Stainless Steel Disclaimer found in the Technical References section below.
