CRL 36in Frameless Glass Door Kit BP-Style Brushed SS No Lock

• Door-only or complete entrance kits available (SKU: BP4BS12SE)
• 3' single door or 6' double door kits for use with 1/2" (12 mm) tempered glass
• Brushed or polished stainless steel, clear or black/bronze anodized finishes — net door width 35-3/4" (908 mm)

CRL Dry Glaze Frameless Glass Door Kits provide a patented dry-glaze rail system for glass storefronts and interior glass entrances. Choose door-only kits or complete entrance kits — you supply the 1/2" (12 mm) fully tempered glass. These BP-style dry-glaze kits are optimized for commercial frameless glass doors and ADA-compatible storefront applications.

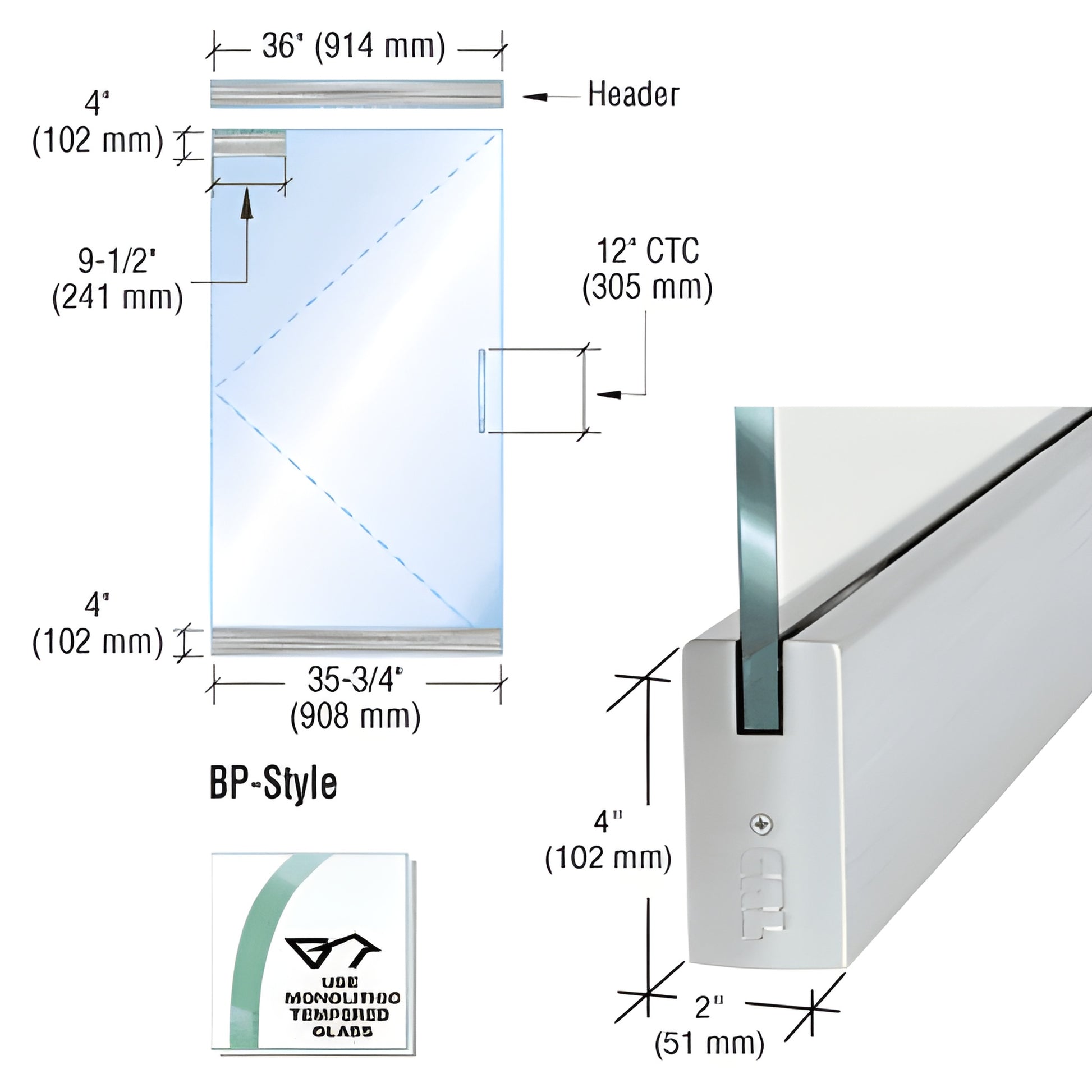

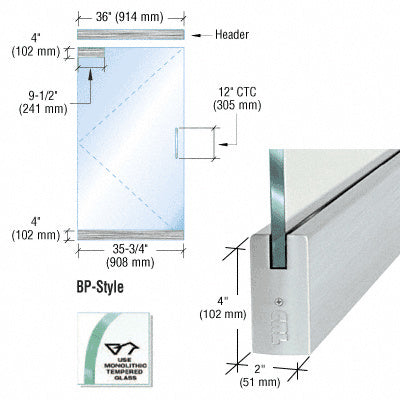

This kit uses patented dry glaze rails and is available in brushed or polished stainless steel or clear/black/bronze anodized finishes. It requires two 5/8" (16 mm) holes at 12" (305 mm) on center for the pull handle and a top-patch notch. Net door width is 35-3/4" (908 mm). CRL follows GANA guidelines for maximum door sizes.

Door-only kits include rails, a Jackson® overhead concealed door closer with bottom pivot, and a pull handle. Complete entrance kits also include a 1-3/4" x 4" (45 x 102 mm) header prepped for a Jackson® overhead concealed door closer. Optional locks are available in the bottom rails; thresholds can be ordered separately.

Without Lock Kits Include:

• One DR4S Series dry glaze top patch rail
• One DR4S Series dry glaze rail
• One Model 20104M20 Jackson® overhead door closer
• One CRL8010AS closer arm
• One CRL8010DP bottom pivot
• One CRL8010FS mounting clip
• One Model CM12X12 pull handle
• One Model DCH4 36" header

Stainless Steel Advisory:

Applications & differentiators: Ideal for commercial frameless glass entrances, storefronts, and interior glass doors where a clean, hardware-minimal aesthetic is required. Patented dry-glaze rails reduce visible fasteners and simplify installation for 1/2" tempered glass
