CRL 3' Dry-Glazed Frameless Glass Door Kit Brushed Stainless No Lock

• Door Only or Complete Entrance Kits Available (SKU: BP4BS12S)
• 3' Single Door or 6' Double Door Kits for 1/2" (12 mm) Tempered Glass
• Brushed or Polished Stainless Steel, Clear or Black/Bronze Anodized Finishes — Net Door Width 35-3/4" (908 mm)

CRL dry glazed frameless glass door kits are engineered for single or double commercial entrances. Choose Door Only or Complete Entrance Kits — you supply the 1/2" (12 mm) fully tempered glass. These BP style dry-glaze rails are patented for a clean, frameless look and are available in brushed stainless, polished stainless, clear anodized, or black/bronze anodized finishes.

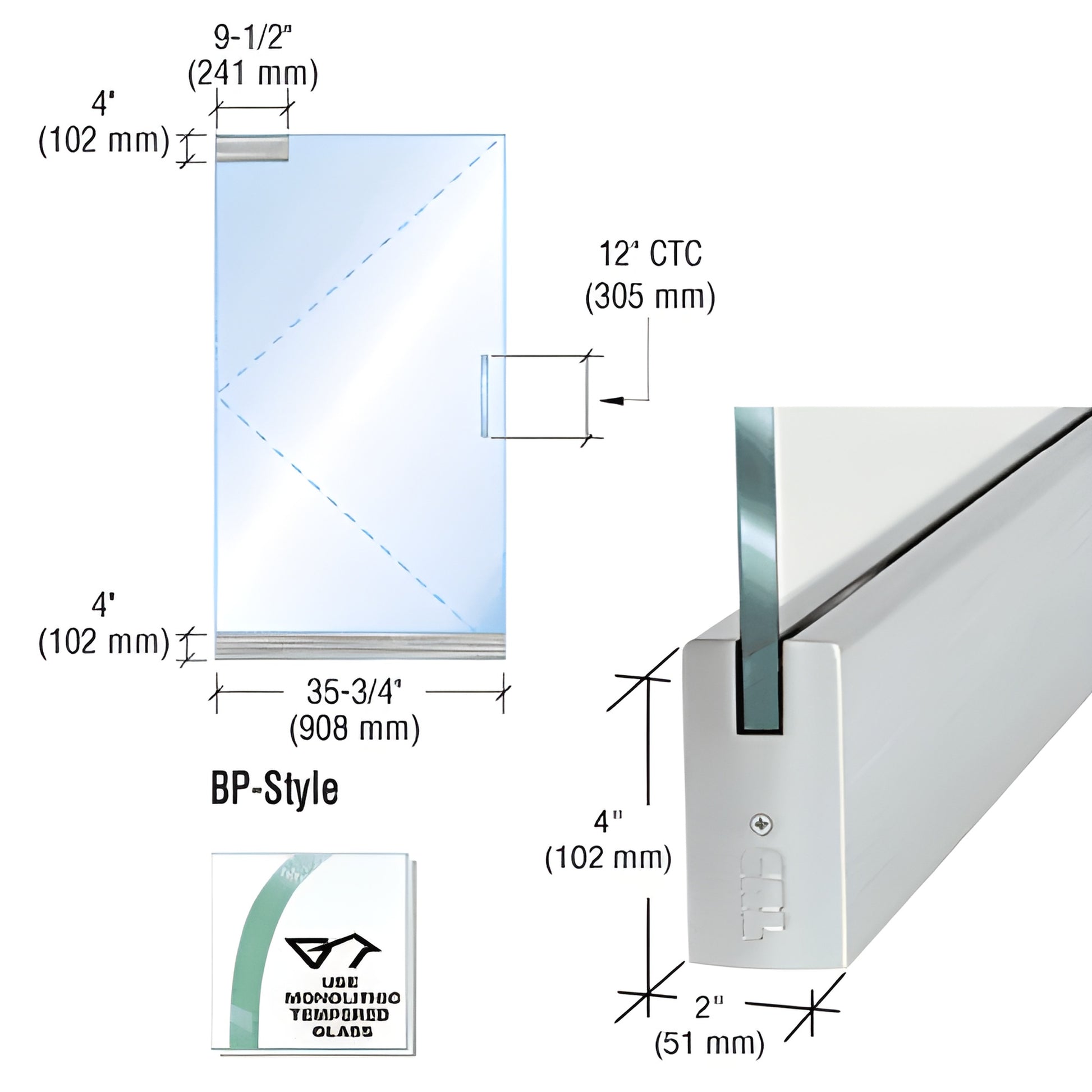

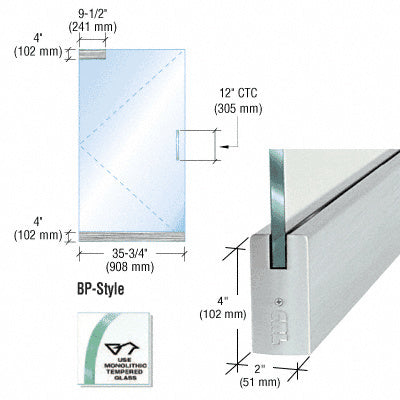

This kit fits 1/2" (12 mm) tempered glass and requires two 5/8" (16 mm) pull-handle holes spaced 12" (305 mm) on center plus a notch for the top patch. Net door width is 35-3/4" (908 mm).

Door Only Kits include rails, Jackson® overhead concealed door closer with bottom pivot, and a pull handle. Complete Entrance Kits add a 1-3/4" x 4" (45 x 102 mm) header prepped for the Jackson® overhead concealed closer. Optional locks in bottom rails and separate thresholds available.

NOTE: For maximum door sizes, CRL follows GANA Guidelines.

Without Lock Kits Include:

• One DR4S Series Dry Glaze Top Patch Rail
• One DR4S Series Dry Glaze Rail
• One Model 20104M20 Jackson® Overhead Door Closer
• One CRL8010AS Closer Arm
• One CRL8010DP Bottom Pivot
• One CRL8010FS Mounting Clip
• One Model CM12X12 Pull Handle

Stainless Steel Advisory:

Ready to order a BP4BS12S dry glazed frameless glass door kit or need help selecting options? Contact CRL Customer Service or add the kit to your cart to proceed.
