CRL Dual-Purpose Floor or Threshold Mounted Pivot for Use with 1" Deep Bottom Door Rail Applications

• Dual-Purpose Pivot Mounts Directly to Floor or Threshold
• 3/16" (5 mm) Height Adjustment
• For Use with Both End-Load and Side-Load Arms

This

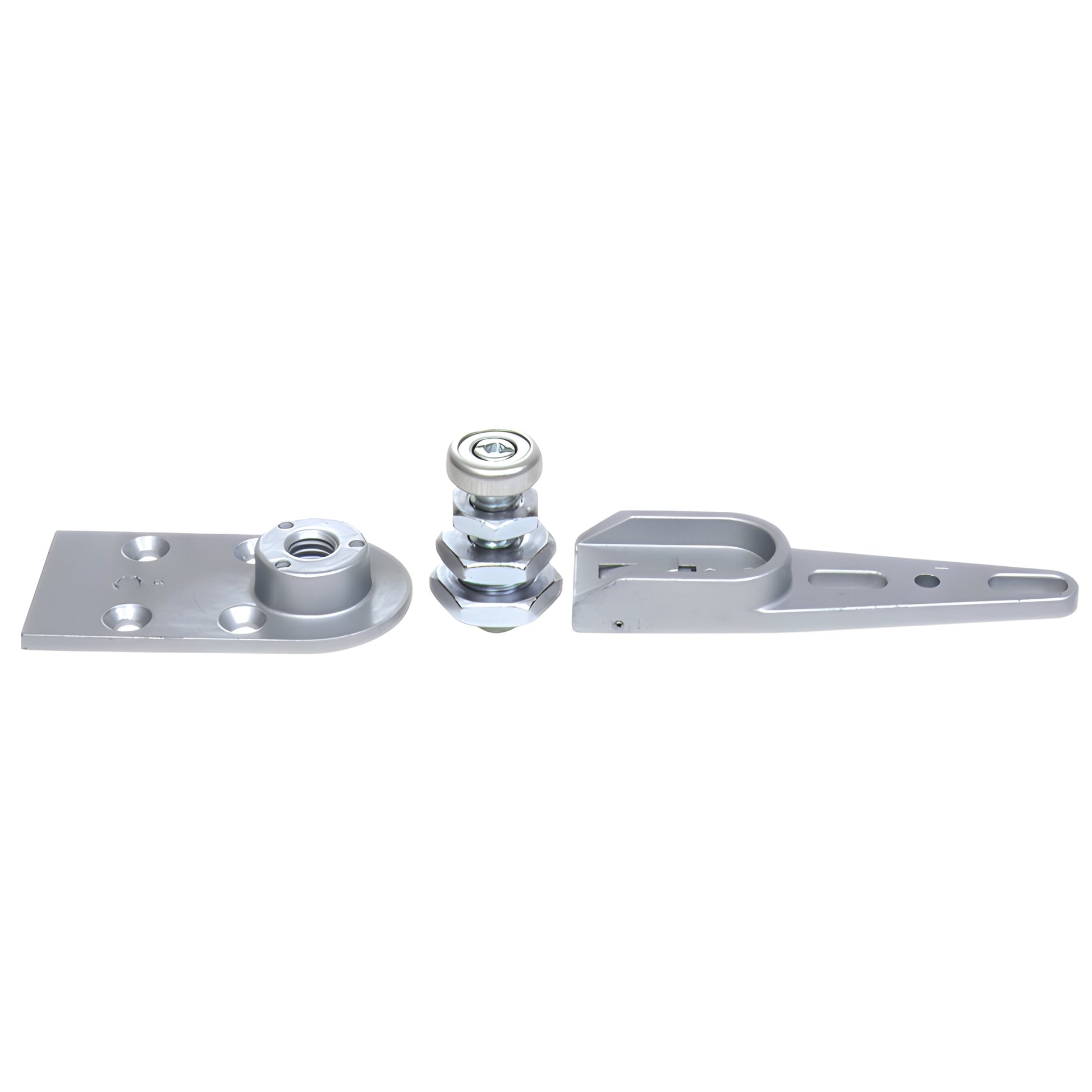

CRL Adjustable Dual-Purpose Bottom Pivot Set

is for use with 1" (25 mm) deep bottom door rail applications, and is the standard Bottom Pivot Set supplied with our 'S' Type and 'A' Type Door Closer packages. It can be used with the base plate for floor mounting or attached directly to the threshold. A 3/16" (5 mm) height adjustment is possible with the door on or off the pivot. This Pivot is suitable for either end-load or side-load center-hung applications. Maximum weight capacity is 200 lbs. (90.7 kg).
