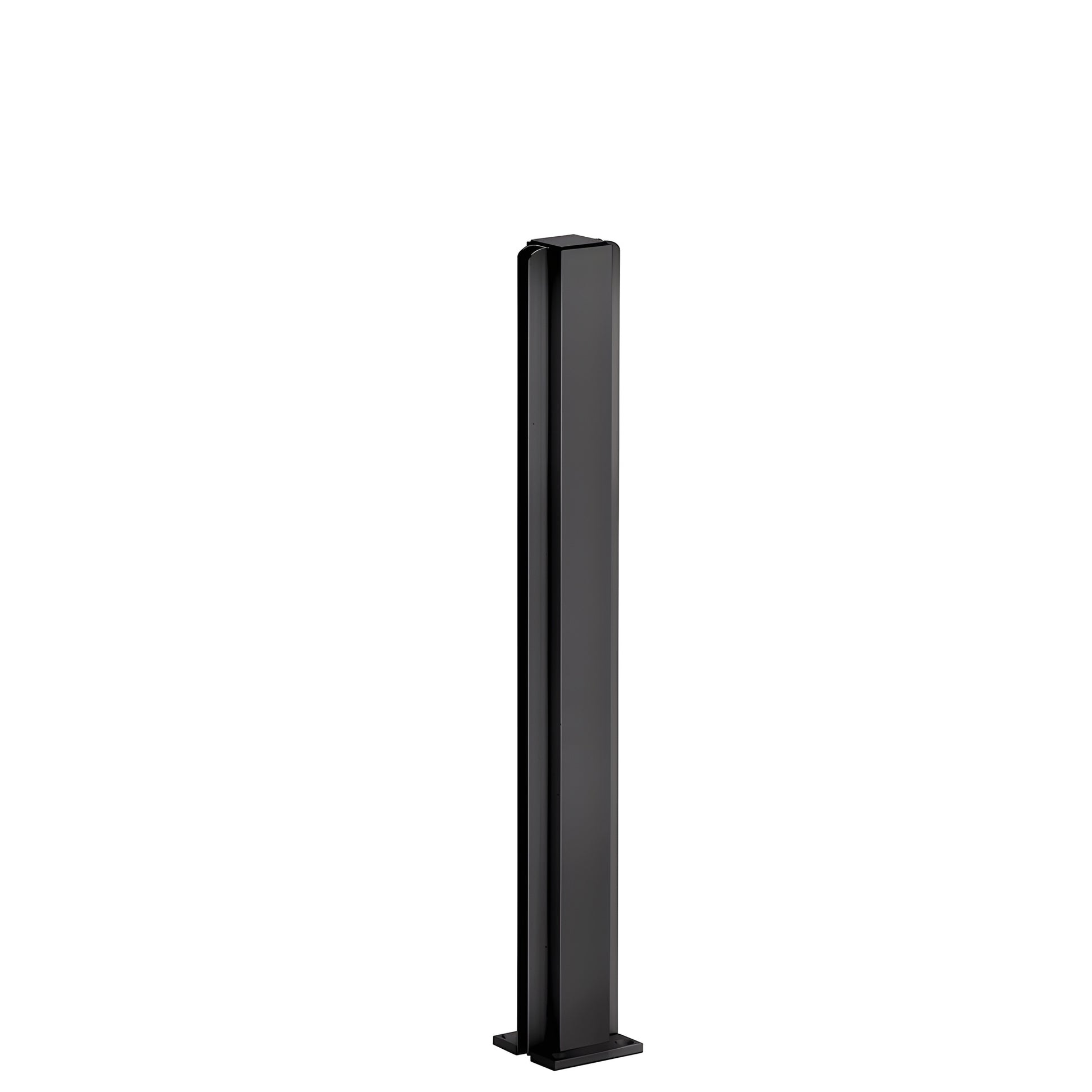

• Dark bronze anodized 18 in aluminum square partition post (center) with full-length U-channel for 1/4 in glass, SKU D990DU18C
  • Dark bronze anodized 18 in aluminum square partition post (center) with full-length U-channel for 1/4 in glass, SKU D990DU18C
1 2

CRL

CRL Duranodic Bronze 18 in Center Mount Partition Post

CRL Duranodic Bronze 18 in Center Mount Partition Post

$152.84 CAD
$152.84 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# D990DU18C
Shipping Weight: 1.15 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Base Type
Square Flat - Mechanical
Cap Type
Flat
Configuration
Center Post
Finish/Color
Dark Bronze Anodized
Glazed
No
Glazing Attachment Type
U-Channel
Glazing Thickness
1/4 in. (6 mm)
Height
18 in. (457.2 mm)
Material
Aluminum
Series
Design
Tube Size
1-1/8 in. (28.6 mm)
Tube Type
Square

Overview

  • Stock post sizes, RED-E to ship
  • Standard heights: 12", 18", and 24" (305, 457, 610 mm) in four finishes
  • Five configurations: End, Center, Corner, 3-Way, and 4-Way
  • Aluminum tubing with full-length glazing channels for 1/4" (6 mm) glass
  • Top cap and mounting base included; use with monolithic tempered glass

CRL Design Series partition posts (SKU D990DU18C) are a commercial glass partition solution used for banks, offices, and restaurants. Their slim-profile aluminum posts include full-length glazing channels and an easy-to-install mounting base for fast on-site assembly. Posts arrive fully assembled with one top cap, one mounting base and four wood screws.

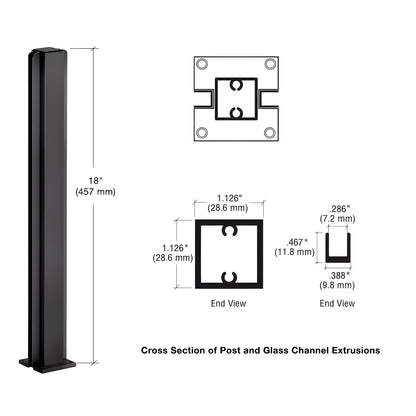

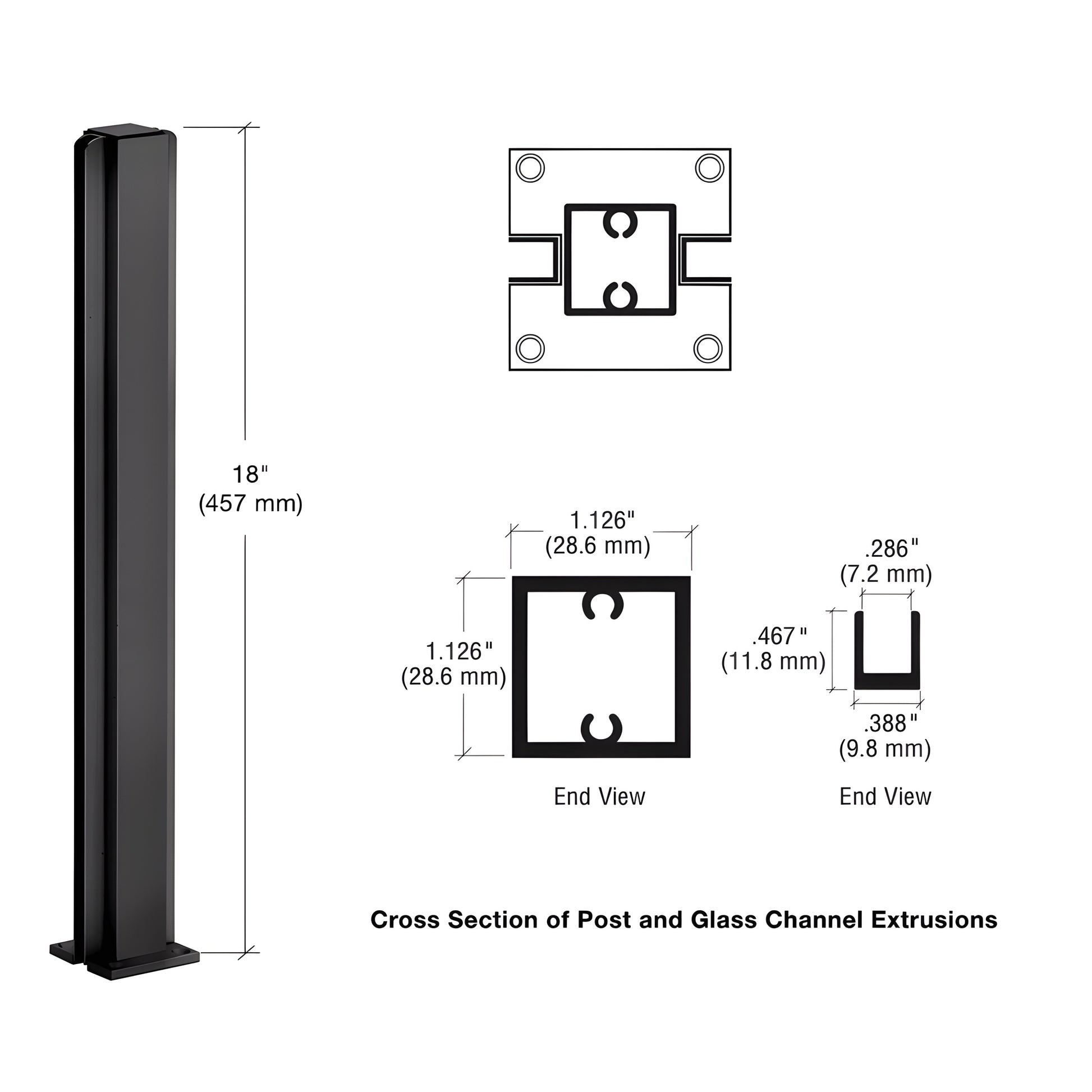

These posts measure 1-1/8" (28.6 mm) square. Mounting base plates are 2" (51 mm) square. Glazing channels run full length and rise 15/32" (12 mm) from the post surface. Glazing vinyl for 1/4" (6 mm) and 3/16" (5 mm) glass is supplied to fill the glass channel. For sealing, secure glass using Cat. No. 33SC Clear Silicone.

Custom 135° posts are available in select finishes and sizes. You can also build your own Design Series partition posts from CRL components — see instructions and requirements and the parts page.

Product Warning:

Secure glass into the glazing channels using Cat. No. 33SC Clear Silicone.

Most shipping weights are approximate and have not been verified. If exact weight is required to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors may vary depending on monitor settings.


Order SKU D990DU18C or contact CRL Customer Service to confirm finish availability and lead time.
