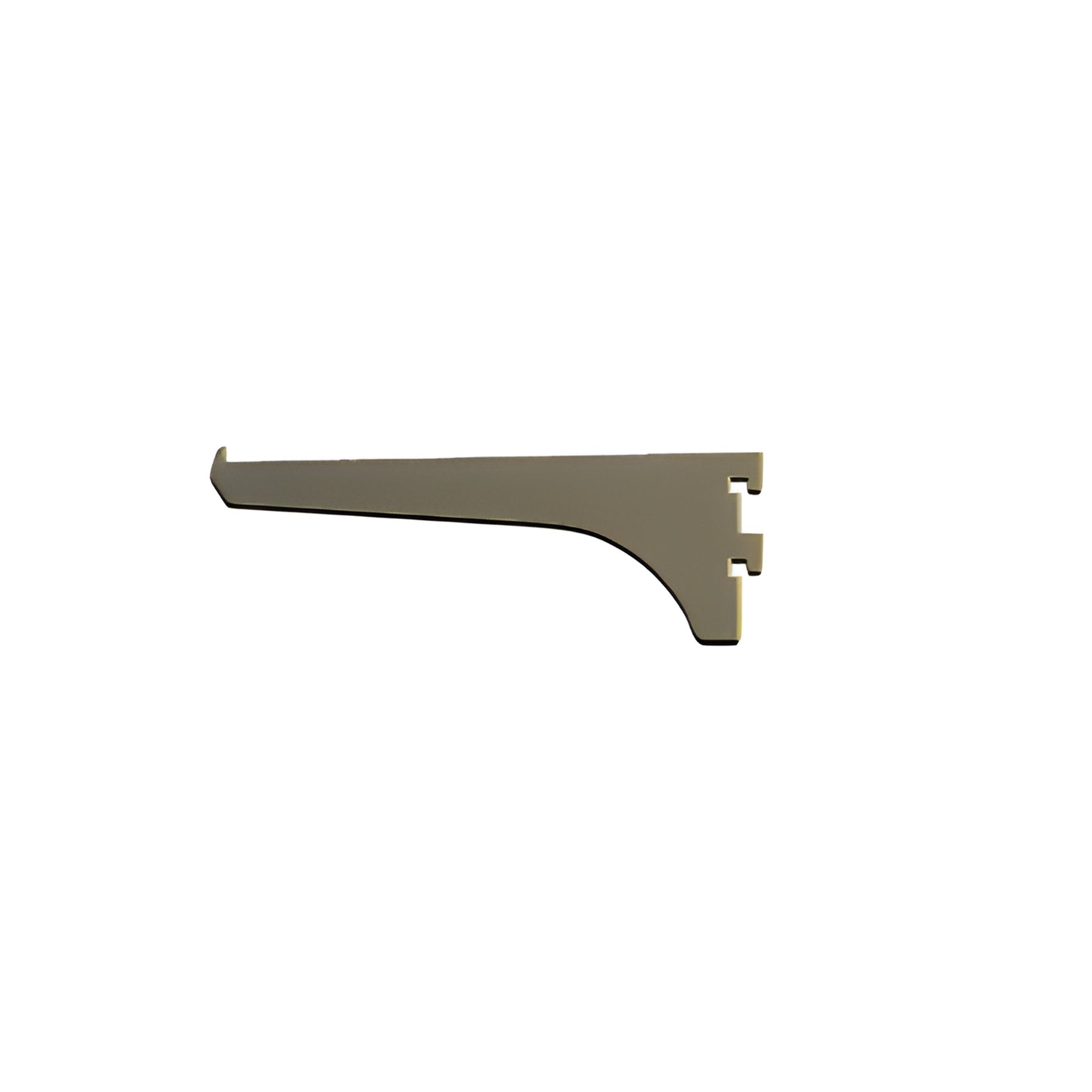

CRL 6-in Aluminum Mounting Bracket, Duranodic Bronze

• SKU: 122DU6 — CRL Series 22 & 322 Aluminum Bracket
• Available in Five Finishes and Five Lengths: 4", 6", 8", 10", and 12" (102, 152, 203, 254, and 305 mm)
• Designed to fit Series 22 and Series 322 aluminum standards with a hidden slip-in installation

CRL Aluminum Brackets — heavy-duty, slip-in shelf brackets for Series 22 and Series 322 Aluminum Standards. These brackets have no back flange and install by sliding into the hidden standard slot and lightly tapping down to secure. Ideal for concealed, clean-profile shelving and wall-mounted storage solutions.


Aluminum Bracket Weight Capacities: measured with two standards mounted 16" (406 mm) apart and fastened to wall studs:

4" (102 mm) = 75 lbs (34 kg)
6" (152 mm) = 65 lbs (29 kg)
8" (203 mm) = 55 lbs (25 kg)
10" (254 mm) = 45 lbs (20 kg)
12" (305 mm) = 35 lbs (16 kg)

Product Warning:

These Aluminum Brackets are not interchangeable with steel standard and bracket systems from other manufacturers; use only with CRL Series 22 and 322 standards.

Order now to get CRL 122DU6 brackets in your preferred finish and length — contact Customer Service for bulk or custom inquiries.
