CRL Duranodic Bronze Anodized Aluminum Clamp-On Glazed Window Frame

• Clamp-On Frame Vision Window with Surround Sound System for Natural Voice Transmission
• Drawings and specifications available online — request by SKU: C0V1DU

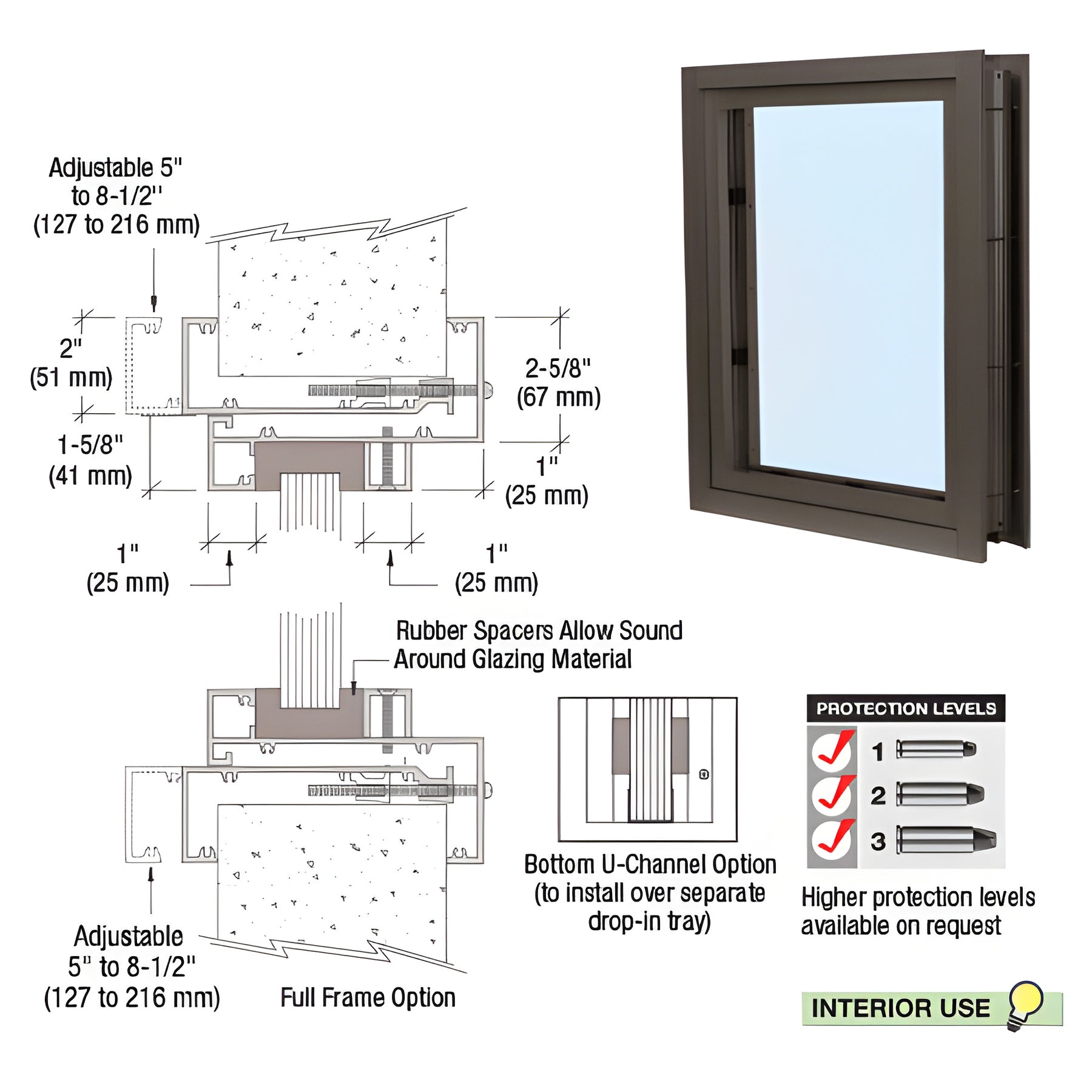

CRL Clamp-On Frame Vision Windows with surround sound enable clear, natural voice transmission without a separate speak-thru device. Designed for interior walls 5" to 8-1/2" (127 to 216 mm) thick, the uniform four-sided frame clamps securely with interior tightening screws. These vision windows are typically installed above built-in exchange drawers and can be ordered with U-Channel under the glazing to allow access to drop-in deal trays. Customer specifies overall width and height at time of order. Note: not weather tight — for interior use only.


SPECIFICATIONS:
Materials: Glazing options: 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame finishes: Satin Anodized, Duranodic Bronze, RAL powder paint colors, or custom KYNAR® paint colors.
Instructions Included.


Product Warning:

CRL recommends a maximum width of 36" (914 mm) when surround sound is used.

For drawings, detailed specifications, or to order SKU: C0V1DU, visit our product page or contact CRL Customer Service. Order now to secure interior clamp-on vision windows with surround sound.
