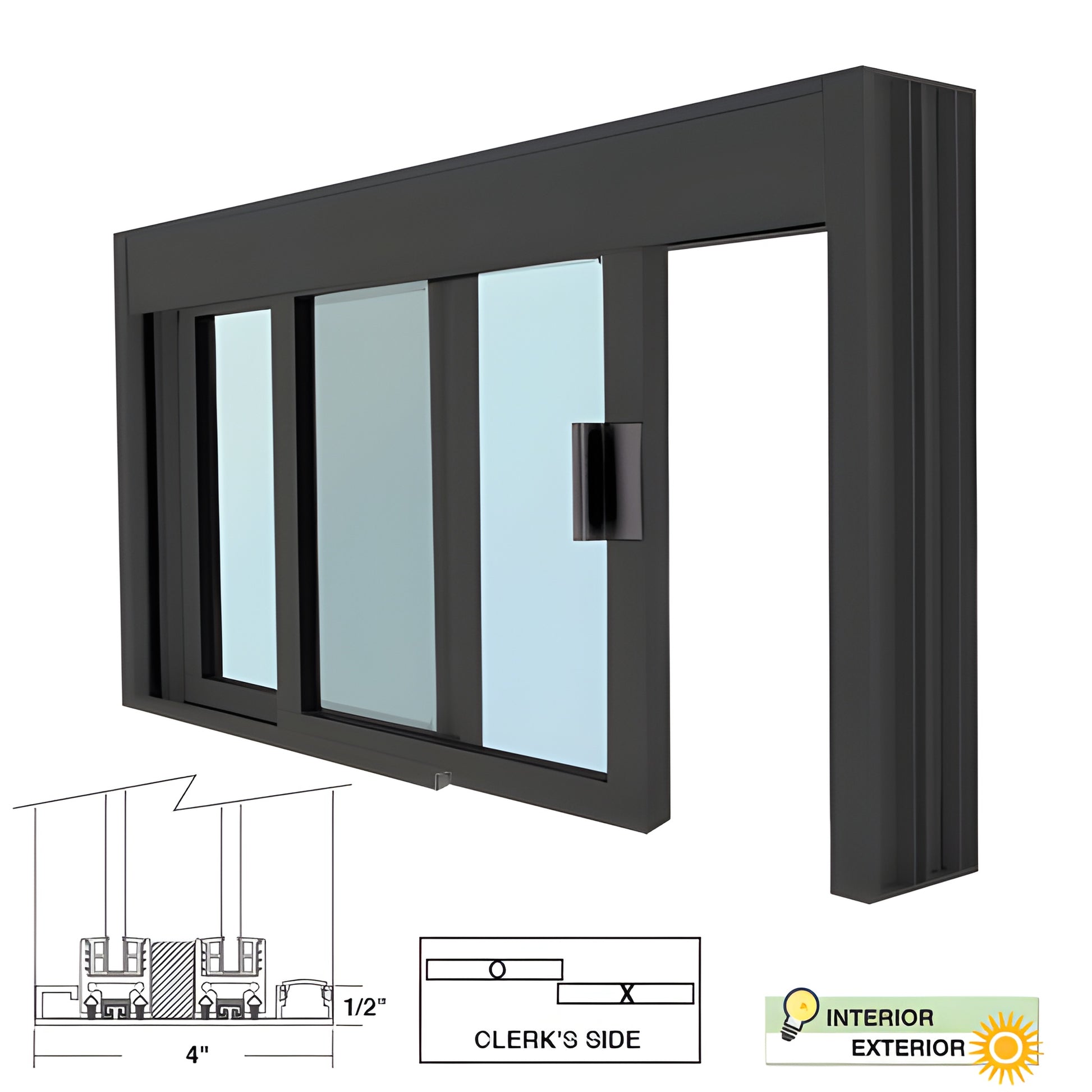

• Duranodic bronze anodized aluminum sliding service window, 47-1/2 35-3/4, 1/4" tempered glass, self-latching (DW48360XGDU)
1 1

CRL

CRL Duranodic Bronze Anodized Manual Glazed Service Window Half-Track

CRL Duranodic Bronze Anodized Manual Glazed Service Window Half-Track

$2,346.89 CAD
$2,346.89 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DW48360XGDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Finish/Color
Duranodic Bronze Anodized
Frame Depth
4 in. (101.6 mm)
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
1/4" Clear Tempered Glass
Handle Type
Self Latching
Material
Aluminum
Screen
No
Usage
Interior,Exterior

Overview

  • Ships factory glazed with 1/4" clear tempered glass
  • OX clerkside configuration (X = sliding panel)
  • Self-latching handle for secure closing
  • Popular 47-1/2" W x 35-3/4" H frame size — fits 48" x 36" opening
  • No track under sliding panel for unobstructed counter passage; manual open/manual close
  • Optional keyed lock assembly: DWKEYLOCK (sold separately)

CRL Standard Size Manual Deluxe Service Window (SKU: DW48360XGDU) ships fully assembled and can be factory glazed or shipped ready-to-glaze. Built for heavy-duty commercial use — ideal for drive-thru service windows, walk-up service counters, and interior openings that require enhanced security and performance.

Available finishes: Satin Anodized or Duranodic Bronze. Bottom options: half-track (no track under sliding panel for clear passage) or stainless steel step-sill with water-dam for exterior applications. CRL also offers custom versions of these durable manual deluxe service windows.

Product Warning:
Heavy duty service windows; not designed to serve as the primary building seal in severe weather conditions.

Most shipping weights are approximate and have not been verified. If exact weight is needed to determine shipping costs, please contact CRL Customer Service prior to ordering. Product images shown are of the actual product or a close representation; colors may vary depending on your monitor.

Need a quote or help selecting options for your drive-thru or walk-up application? Contact us to order SKU DW48360XGDU or request custom configurations.
