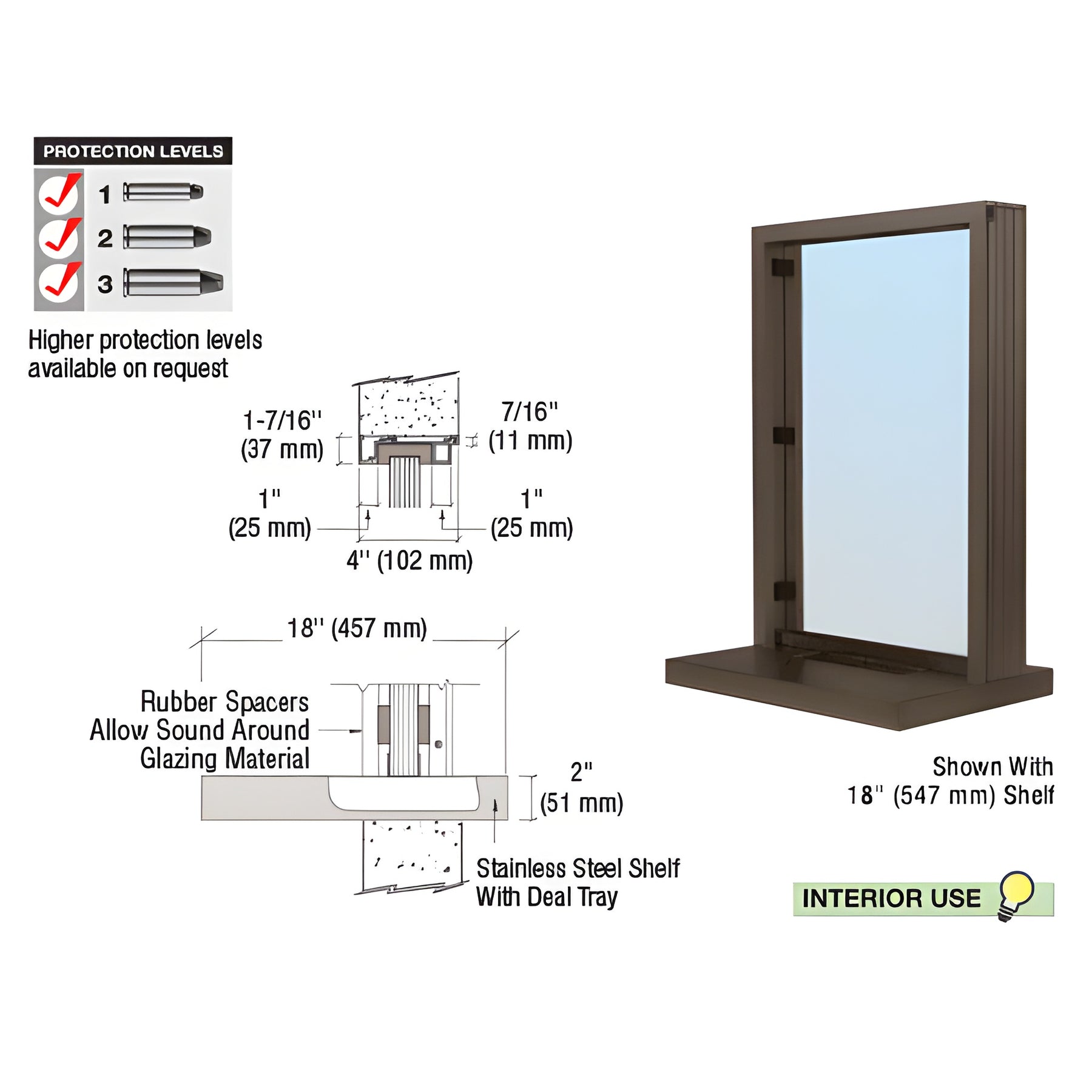

CRL Duranodic Bronze Inset Service Window w/ 18in Shelf & Deal Tray

CRL Duranodic Bronze Inset Service Window w/ 18in Shelf & Deal Tray

Shipping calculated at checkout.
Quantity
Item# N11W18DU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Deal Tray Included
Non-Ricochet Bullet Resistant Deal Tray
Finish/Color
Duranodic Bronze Anodized
Frame Depth
4 in. (101.6 mm)
Glazed
Yes
Glazing Thickness
1/4 in. To 1-1/4 in. (6 mm To 32 mm )
Glazing Type
Specify
Includes
Surround Sound
Material
Aluminum
Protection Level
Specify (1,2,3)
Recommendations
CRL Recommends A Maximum Width Of 36" When Surround Sound Is Used
Shelf Depth
18 in. (457.2 mm)
Shelf Thickness
2 in. (50.8 mm)
Usage
Interior
Window Style
Fixed Single Lite

Overview

  • Narrow inset frame with surround sound voice transmission and built-in non-ricochet bullet resistant deal tray (SKU: N11W18DU)

CRL Interior Glazed Narrow Inset Frame Windows — Secure, low-profile glazing system with Surround Sound voice transmission and a brushed stainless steel shelf that integrates a non-ricochet bullet resistant deal tray. The extruded aluminum frame is designed for installation into walls at least 4" (102 mm) thick. Typical shelf depths are 12" (305 mm) and 18" (457 mm); the 18" shelf provides a convenient writing surface. Installing or securing the frame to the wall requires removal and reinstallation of the glazing material and spacer blocks.

Key differentiators:
  • Integrated Surround Sound voice transmission for clear communication in secure transaction windows
  • Built-in non-ricochet bullet resistant deal tray—available Level 1 or Level 3 protection
  • Satin anodized or custom powder/KYNAR® frame finishes with #4 brushed stainless steel shelf

SPECIFICATIONS:
Materials: Glazing options include 1/4" (6 mm) glass; 1-5/16" (33 mm) Level 1 glass; 1-1/4" (32 mm) Level 1 acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1" (25 mm) Level 2 Lexgard®; 1-3/16" (30 mm) Level 3 glass-clad polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®. Shelf: stainless steel.
Finishes: Frame — Satin Anodized, Duranodic Bronze, RAL powder coat, or custom KYNAR®; Shelf — Brushed Stainless Steel #4 finish.
Deal Tray: Level 1 or Level 3 protection available.
Instructions included.

Product Warning:

CRL recommends a maximum clear width of 36" (914 mm) when the Surround Sound system is used.

Most shipping weights are approximate. If exact weight is required to determine shipping costs, contact CRL Customer Service prior to ordering. Product images shown are representative; actual colors may vary with monitor settings.



Order or request a quote for SKU N11W18DU today to specify glazing, finish, and deal tray level for your secure transaction window.
