CRL Duranodic Bronze Anodized Glazed Service Window w/ Bottom Track

CRL Duranodic Bronze Anodized Glazed Service Window w/ Bottom Track

$2,358.37 CAD
$2,358.37 CAD
Sale Sold out
Shipping calculated at checkout.
View More Information Buy More, Save More
Item# DW48480XGDU
Shipping Weight: NA
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
OX
Finish/Color
Duranodic Bronze Anodized
Frame Depth
4 in. (101.6 mm)
Frame Width
2-5/8 in. (66.7 mm)
Glazing Type
1/4 in. (6 mm) Clear Tempered Glass
Height
47-3/4 in. (1174.7 mm)
Material
Aluminum
Screen
No
Usage
Interior,Exterior
Width
47-1/2 in. (1181.1 mm)

Overview

  • Ships factory glazed with 1/4" clear tempered glass

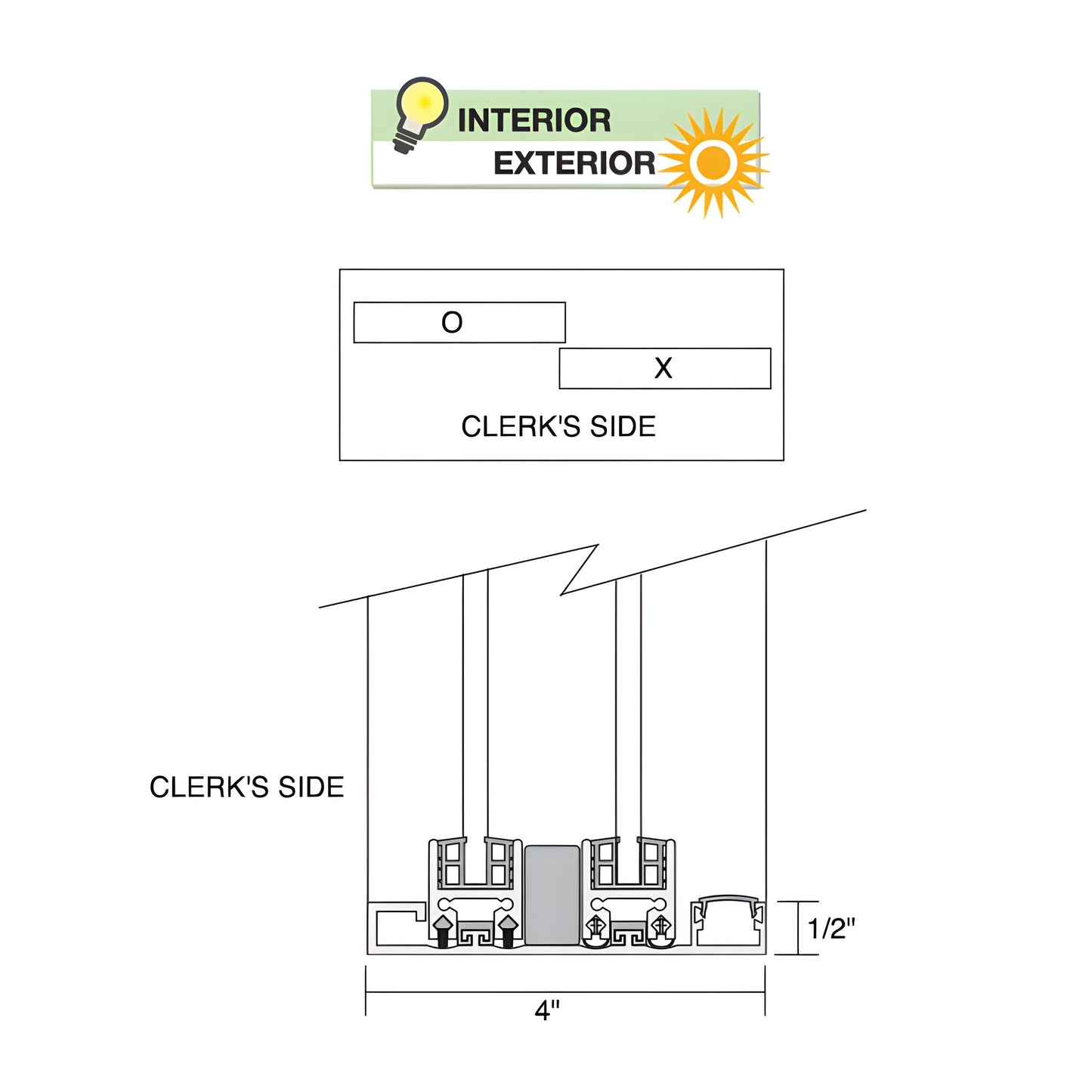

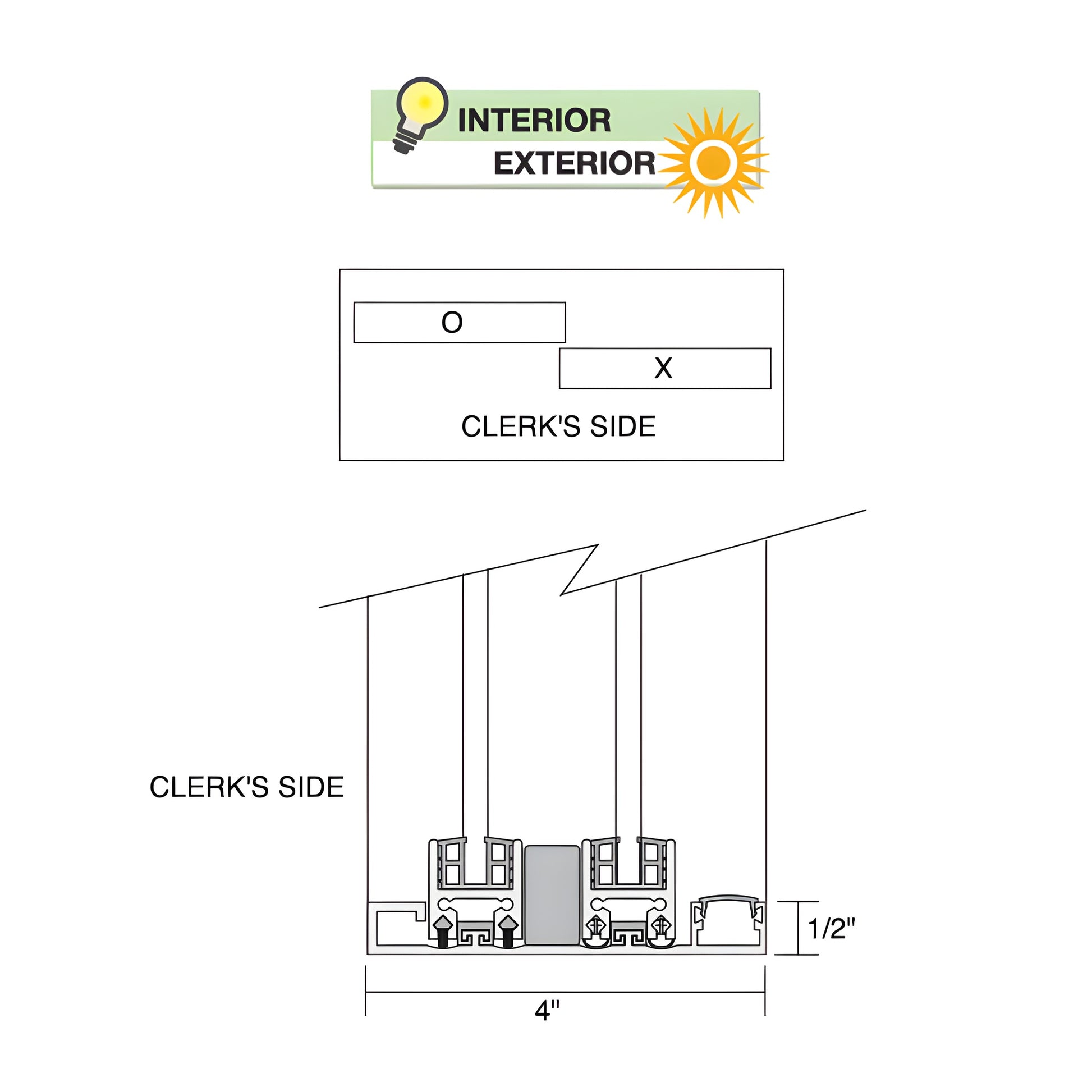

  • OX clerk side configuration (X = sliding panel, O = fixed panel)
  • Popular 47-1/2" W x 47-3/4" H frame; fits 48" x 48" opening
  • Manual open / manual close with full bottom track
  • Optional keyed lock assembly: DWKEYLOCK (sold separately)
  • Clerk side view — designed for drive-thru and walk-up service

SKU: DW48480XGDU

CRL Standard Size Manual Deluxe Service Window ships fully assembled, either ready to glaze or factory glazed and ready to install. Built for heavy‑duty commercial use—drive‑thru, walk‑up service, and interior security applications—this manual deluxe service window combines durable construction with easy installation.

Key differentiators:

  • Factory glazed tempered glass for security and safety
  • Choice of Satin Anodized or Duranodic Bronze finish for commercial aesthetics
  • Available bottom conditions: half‑track (no track under sliding panel for clear counter passage) or stainless steel step‑sill with water dam for exterior openings
  • Optional keyed lock for enhanced security (DWKEYLOCK)

The unit includes a concealed hydraulic self‑closing mechanism in the header for reliable operation. CRL also provides custom versions of this high‑quality, popular window to meet special job requirements.

Product Warning:
Heavy duty service windows; not designed to be the primary building seal for severe weather conditions.

Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images are of the actual product or a close representation; colors may vary depending on your monitor settings.

Order the DW48480XGDU manual deluxe service window for a secure, factory‑glazed 48" x 48" commercial service opening — contact CRL or your dealer to purchase or request a custom quote.
