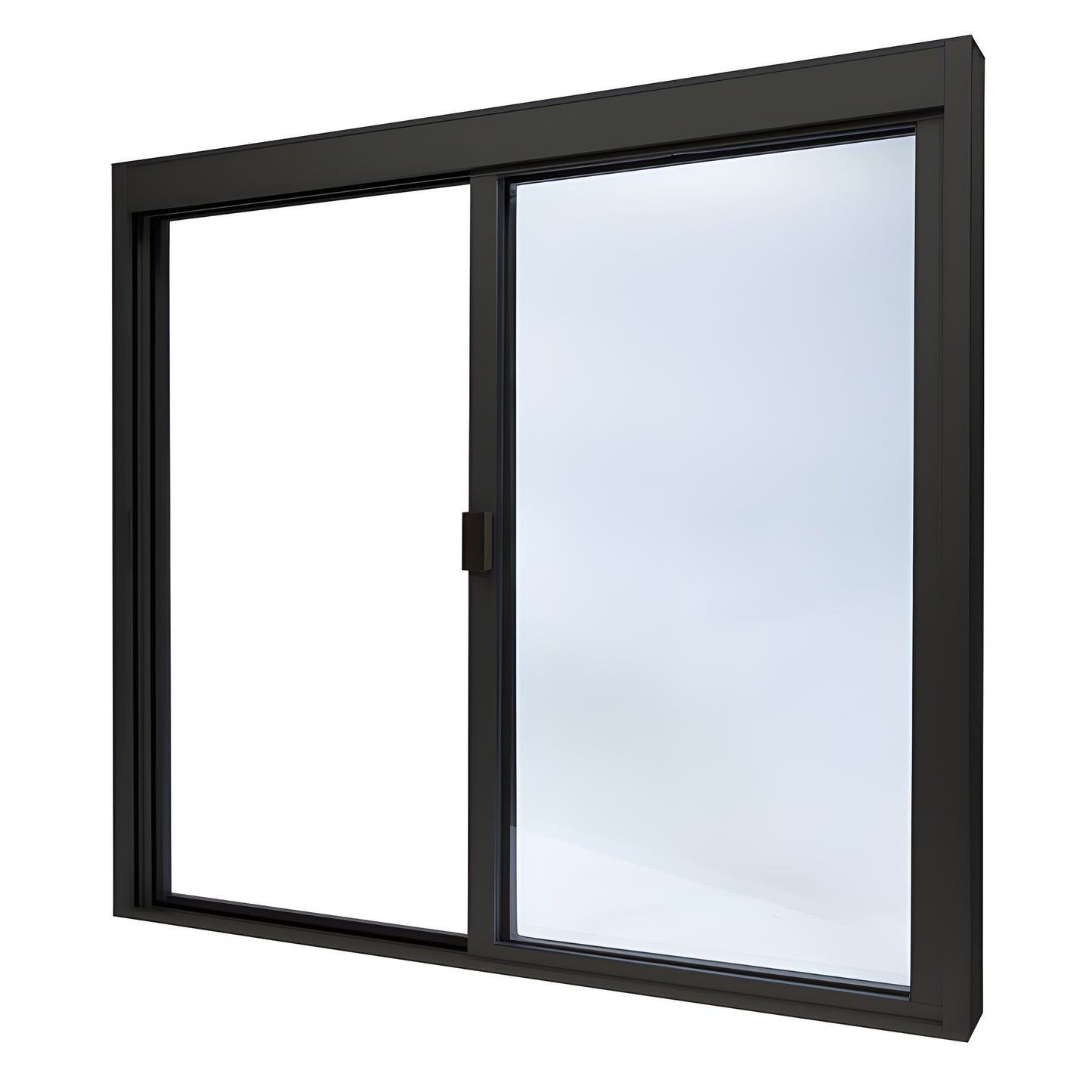

CRL Duranodic Bronze Anodized Manual Service Window with Bottom Track
CRL Duranodic Bronze Anodized Manual Service Window with Bottom Track
Regular price
$2,550.71 CAD
Regular price
Sale price
$2,550.71 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# DW4848X0GDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
XO
Finish/Color
Duranodic Bronze Anodized
Frame Depth
4 in. (101.6 mm)
Frame Width
2-5/8 in. (66.7 mm)
Glazing Type
1/4 in. (6 mm) Clear Tempered Glass
Height
38 in. (965.2 mm)
Material
Aluminum
Screen
No
Usage
Interior,Exterior
Overview
- Ships factory glazed with 1/4" clear tempered glass

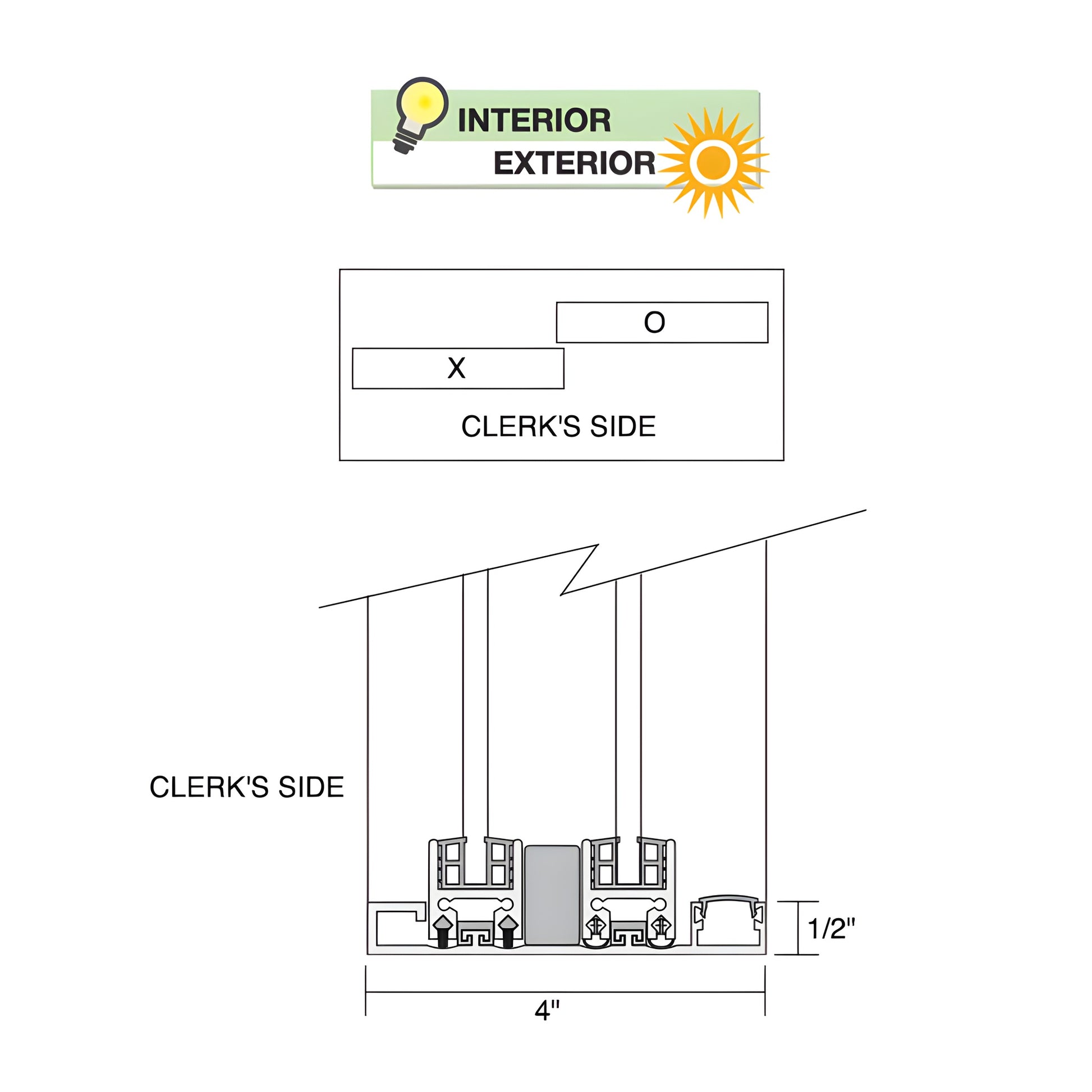

- XO clerkside configuration (X = sliding panel)
- Popular 47-1/2" W x 47-3/4" H frame size fits 48” x 48” opening (SKU: DW4848X0GDU)
- Manual open / manual close operation with full bottom track for secure, smooth sliding
- Optional keyed lock assembly: DWKEYLOCK (sold separately)
CRL Standard Size Manual Deluxe Service Windows ship fully assembled and are available factory glazed or ready-to-glaze. Built for heavy-duty commercial use—ideal for drive-thru and walk-up service windows or interior applications requiring enhanced security and performance.
Available finishes: Satin Anodized or Duranodic Bronze. Bottom options include half-track (clear passage across the counter) or stainless steel step-sill with water-dam for exterior installations. The self-closing function uses a hydraulic mechanism concealed in the header for reliable, tamper-resistant performance. CRL also offers custom versions of these high-quality manual deluxe service windows.
Product Warning:
Heavy Duty Service Windows; not designed to be the primary building seal for severe weather conditions.
Order SKU DW4848X0GDU today or contact CRL for custom sizes and installation support.
