CRL Anodized Bronze Self-Closing Service Window w/ Bottom Track
CRL Anodized Bronze Self-Closing Service Window w/ Bottom Track
Regular price
$4,082.30 CAD
Regular price
Sale price
$4,082.30 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SCDW48440XGDU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
OX
Finish/Color
Duranodic Bronze Anodized
Frame Depth
4-1/2 in. (114.3 mm)
Glazed
Yes
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
1/4" Clear Tempered Glass
Handle Type
Self Latching
Material
Aluminum
Screen
No
Security Feature

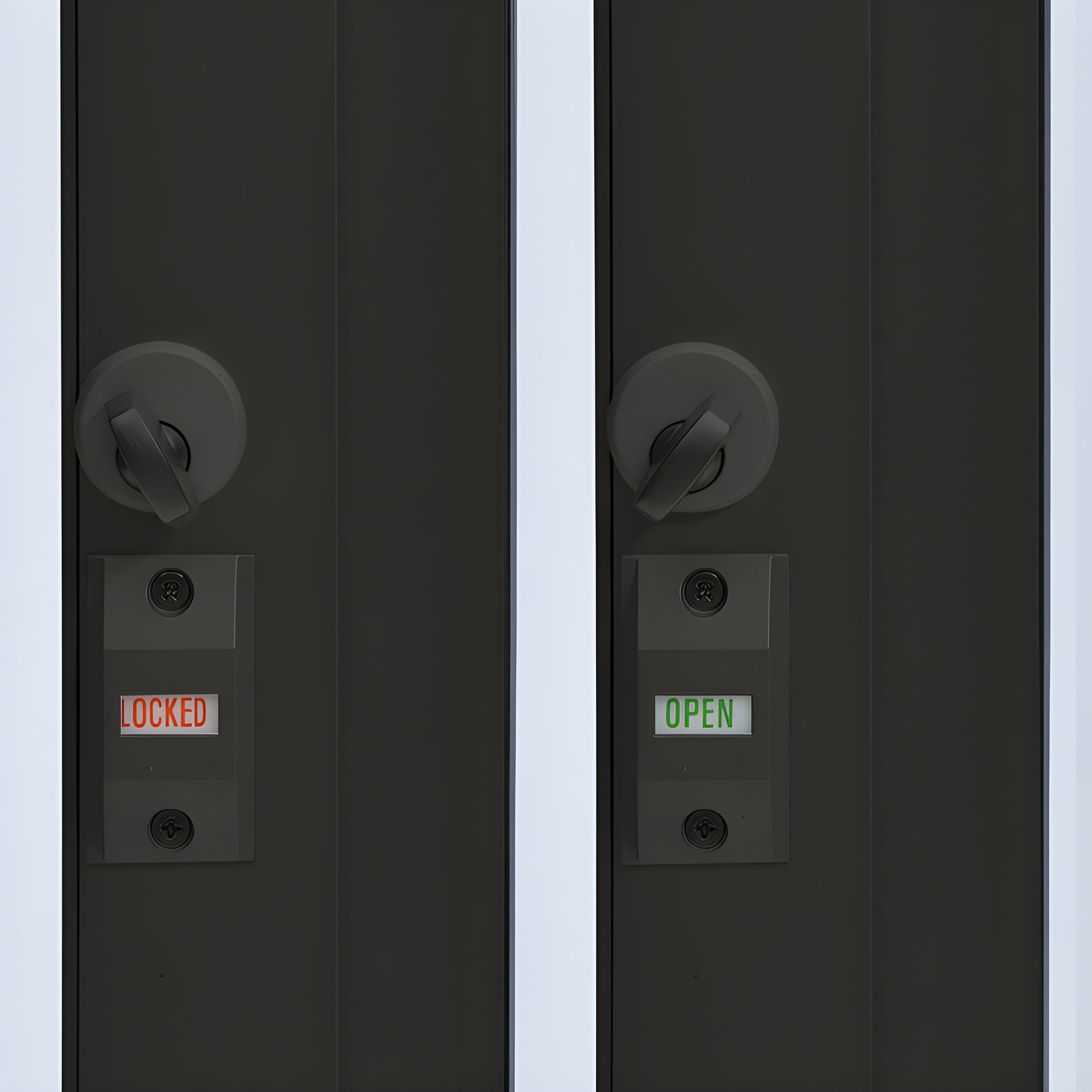

Thumbturn Lock with Indicator

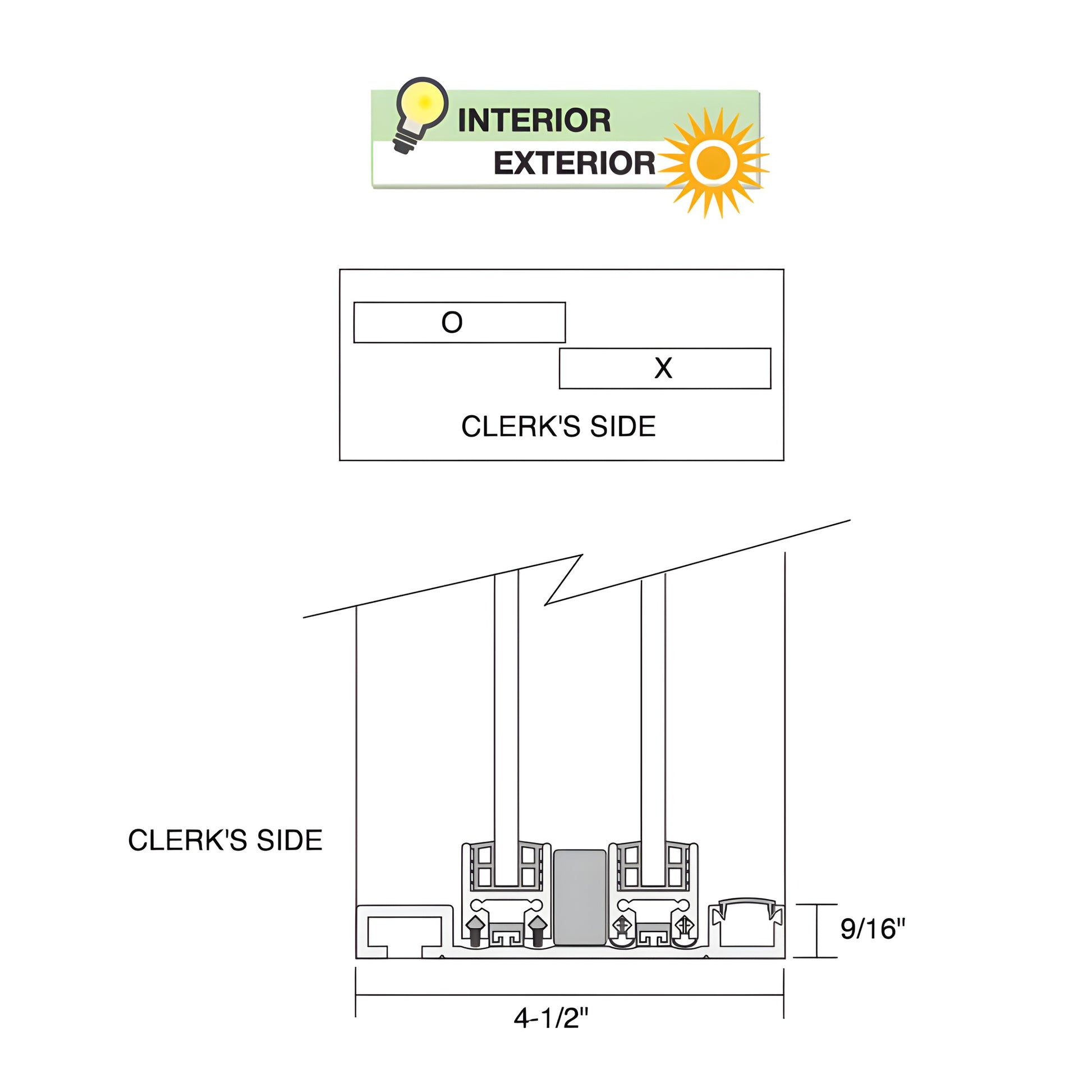

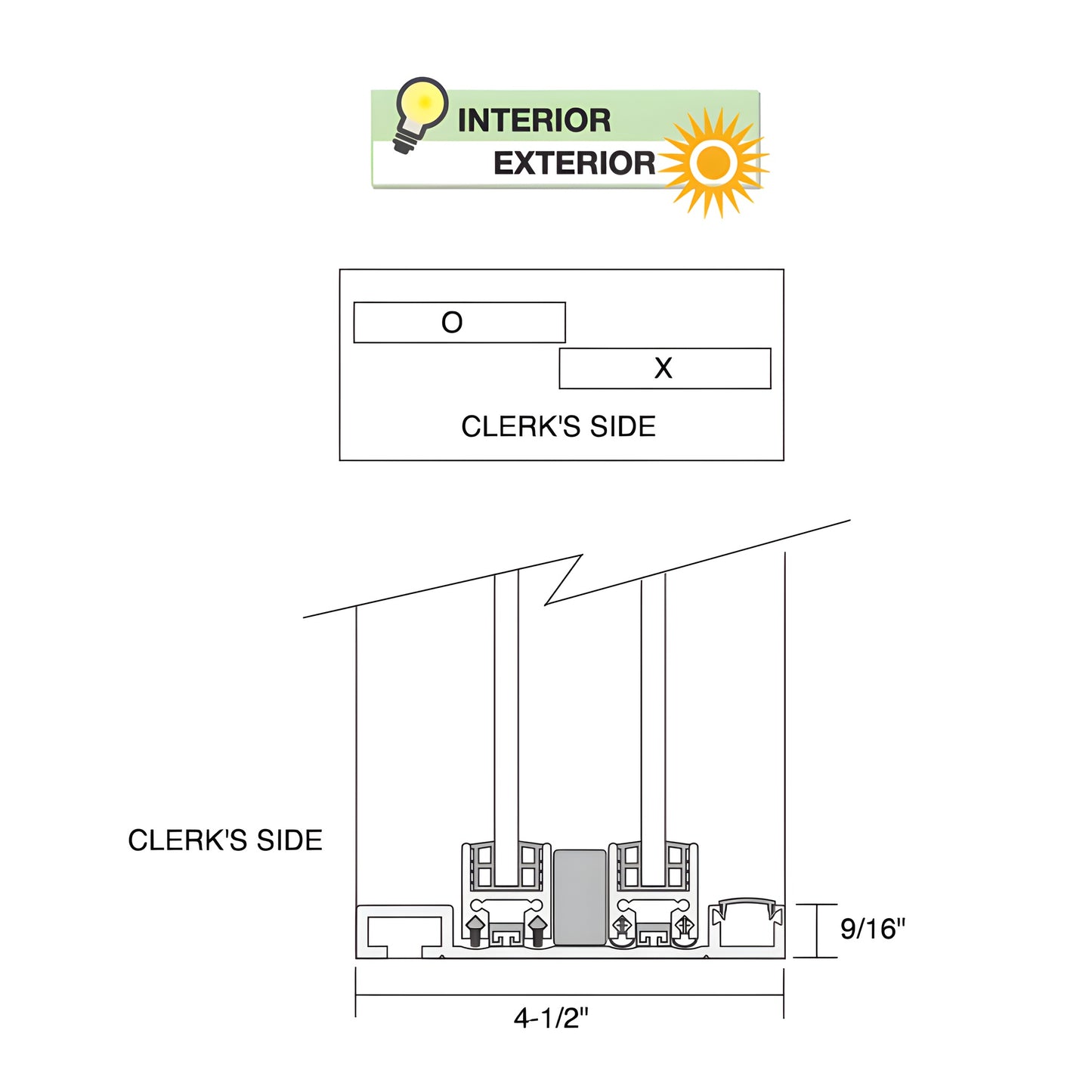

Sill Condition
Full Bottom Track
Usage
Interior,Exterior
Overview
- Ships factory glazed with 1/4" clear tempered glass
- OX clerkside configuration (X = sliding panel)
- Thumb turn and self-latching handle for secure operation
- Popular 47-1/2" W x 43-3/4" H frame fits 48" x 44" opening
- Full bottom track; manual open with self-closing hydraulic header

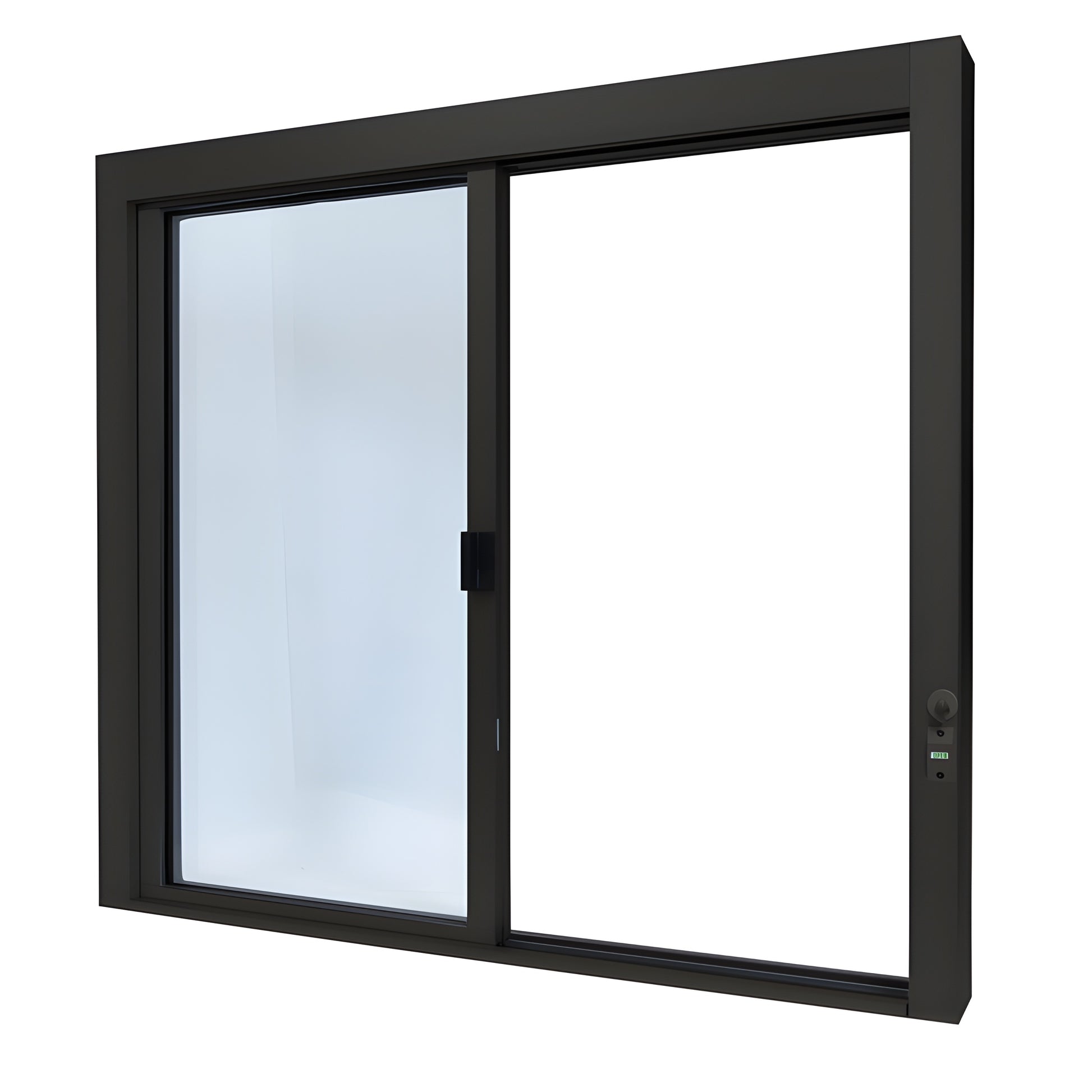

CRL standard-size Self-Closing Service Windows (SKU: SCDW48440XGDU) ship fully assembled and are available factory glazed—ready to install. Built for heavy-duty commercial use (drive-thru and walk-up service), these self-closing service windows also suit interior applications requiring enhanced security and performance.
The self-closing function uses a hydraulic mechanism concealed in the header for smooth, reliable closing. Standard finishes include satin anodized and Duranodic bronze. Bottom configurations include a full bottom track or a stainless-steel step-sill with water dam for exterior installations; a half-track option (no track under sliding panel) is also available for clear counter passage. CRL also provides custom versions of these high-quality service windows.
Product Warning:
Heavy-duty service windows; not designed to be a primary building seal for severe weather conditions.
For pricing, custom options, or verified shipping weight, contact CRL Customer Service or request a quote today.
