- No Grooves Needed in Counter
- Spring-Loaded Latches
- Comes with Glass Installed
- Available in Two Finishes

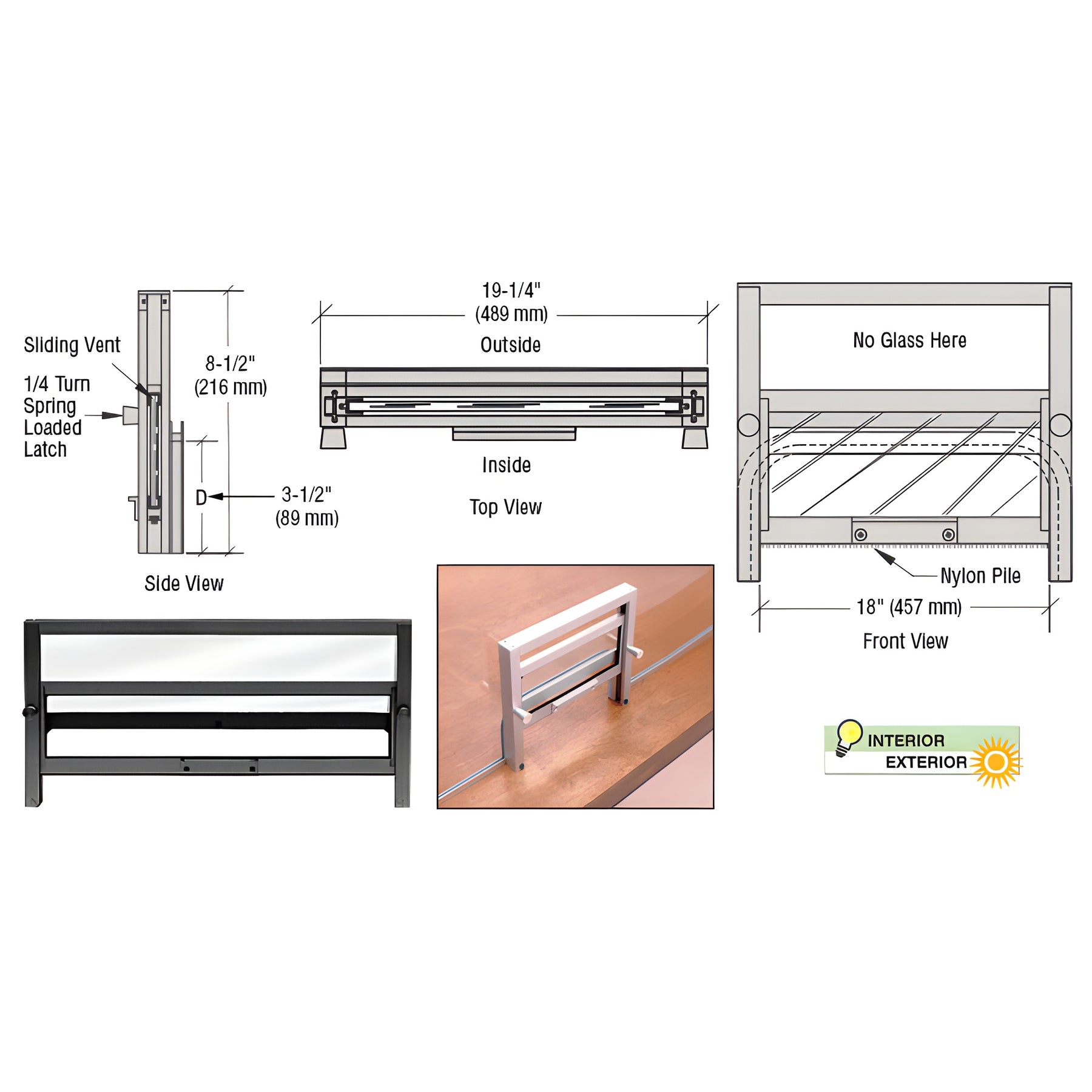

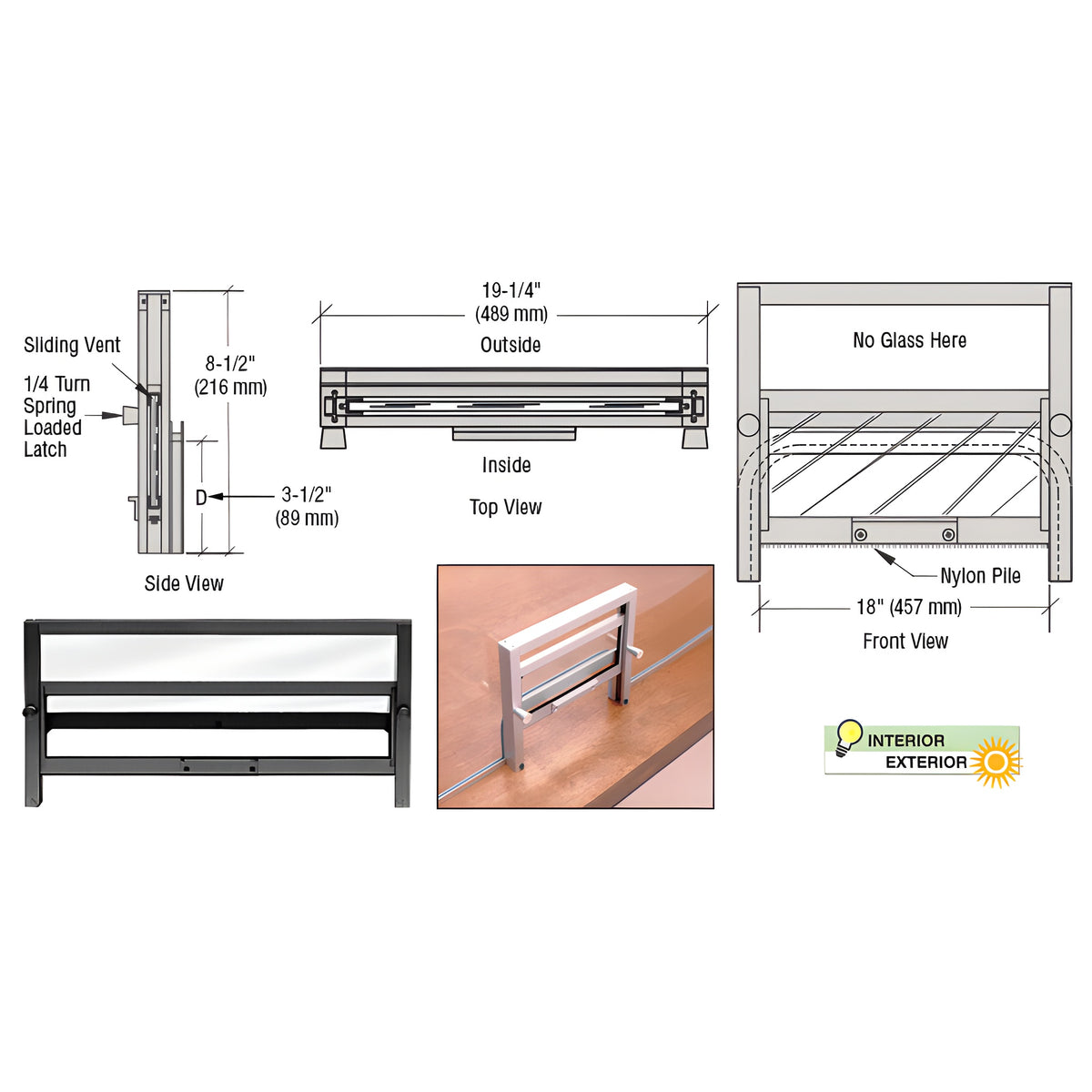

The
CRL Vertical Sliding Ticket Window
can be installed above the countertop without altering its surface. It is fabricated of heavy gauge extruded aluminum in satin anodized or bronze anodized finishes. The sliding lower panel is glazed with 1/4" (6 mm) clear glass, and has spring-tensioned guides to hold it in the raised position. Two spring-loaded knob latches will secure the window in the closed position. Pile weather stripping along the lower frame prevents drafts. Frame protrudes only 1" (25 mm) on clerk's side, and glass channel installs easily in 1/4" (6 mm) thick glass. Template included. Glass cut-out information and installation guide are available. Custom sized channels to install on thicker glazed units are also available on special order.
SPECIFICATIONS
Materials
Extruded Aluminum; Tempered Glass; Nylon Pile Weather Stripping
Finishes
Satin Anodized or Bronze Anodized
Glazing
1/4" (6 mm) Clear Glass
Glass Fabrication
Cut-Out Required
Instructions and Template Included
