Product Details
- Clamp-On Frame Vision Window Typically Used Above Built-In Exchange Drawers in Walk-Up Installations
- Drawings and Specifications are Available Online
- Custom Anodizing Available

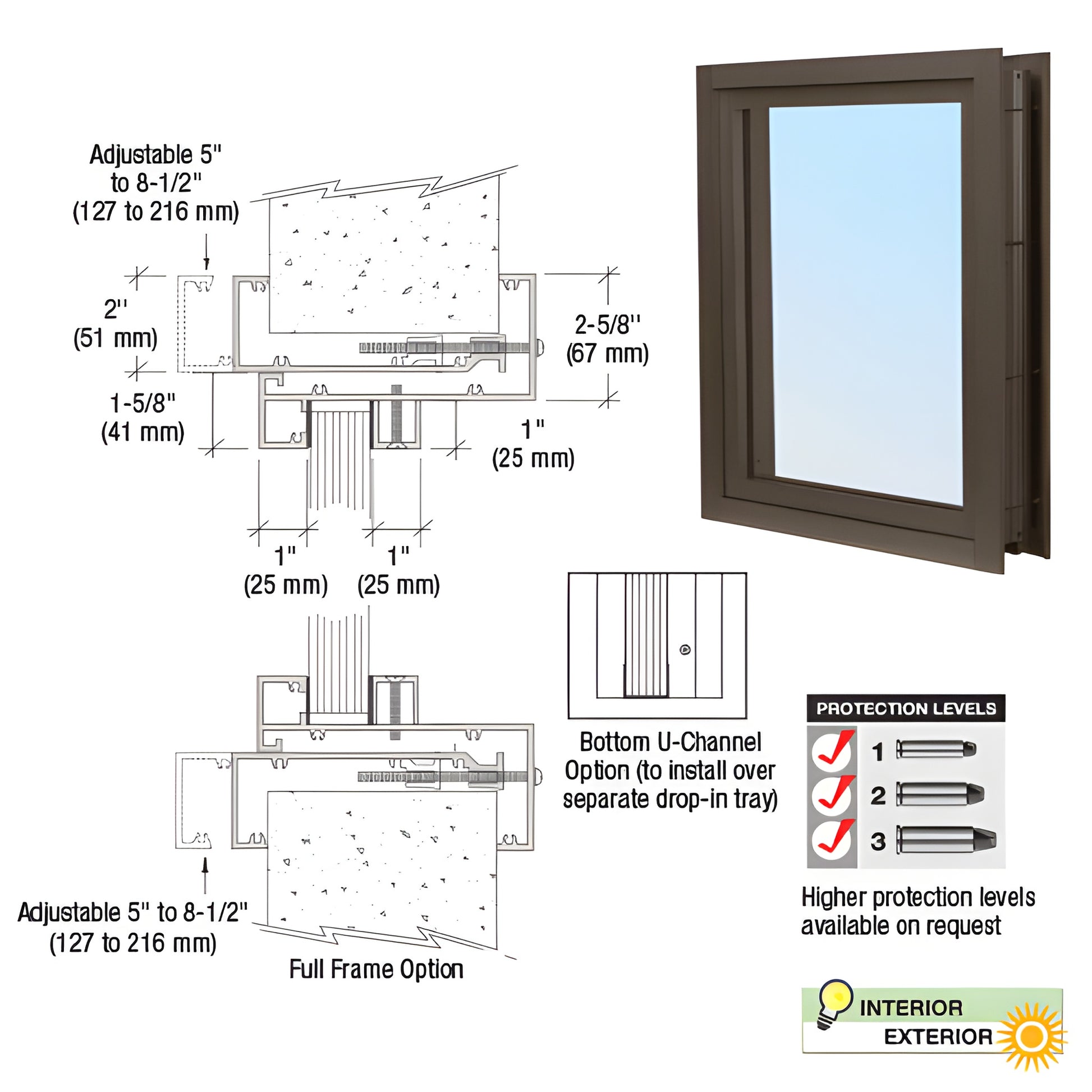

CRL Clamp-On Frame Vision Windows are designed for installation in wall openings having a thickness from 5" to 8-1/2" (127 to 216 mm). The frame has a uniform design on all four sides, and the selected glazing material will be sealed into the frame for a weather tight installation. Vision Windows are commonly installed above built-in Transaction Drawers or Package Receivers. Tightening screws on the interior side of the frame clamps the window securely in the opening. Can also be ordered with U-Channel only under the glazing to enable access to Drop-In Deal Trays. Customer specifies overall width and height when ordering.
SPECIFICATIONS:
Materials: Glazing - 1/4" (6 mm) Glass; 1-5/16" (33 mm) Level 1 Glass; 1-1/4" (32 mm) Level 1 Acrylic; 3/4" (19 mm) Level 1 Lexgard®; 1-3/8" (35 mm) Level 2 Glass; 1" (25 mm) Level 2 Lexgard®; 1-7/8" (48 mm) Level 3 Glass; 1-3/16" (30 mm) Level 3 Glass Clad Polycarbonate; 1-1/4" (32 mm) Level 3 Lexgard®.
Finishes: Frame - Satin Anodized, Duranodic Bronze, RAL Powder Paint Colors or Custom KYNAR® Paint Colors
Instructions Included
