CRL
CRL Duranodic Bronze Extra-Depth Aluminum Upper Channel
Item# D613DU
Shipping Weight: 2.0 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 2.0 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov

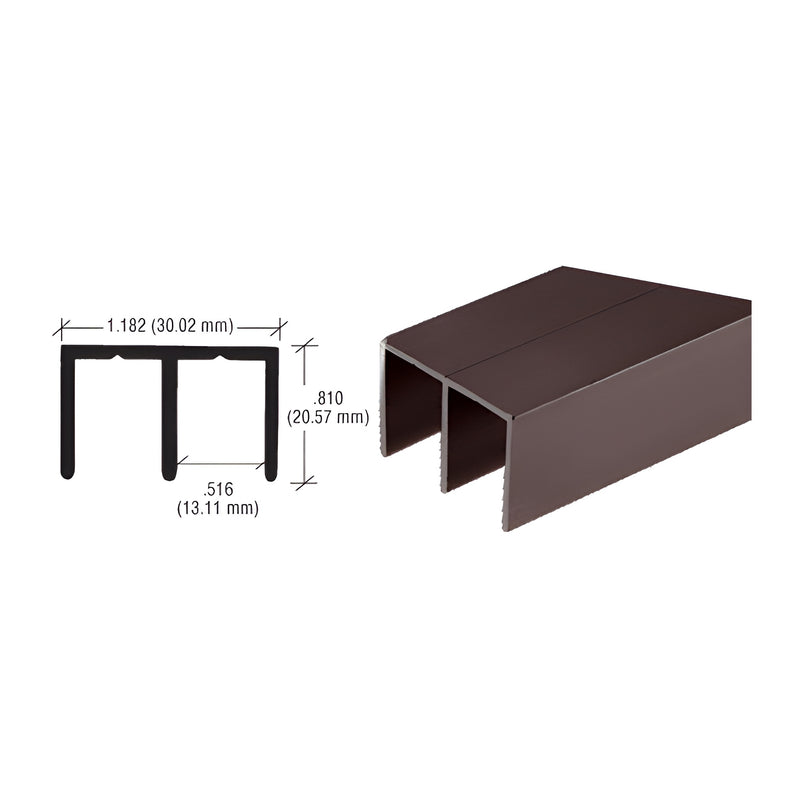

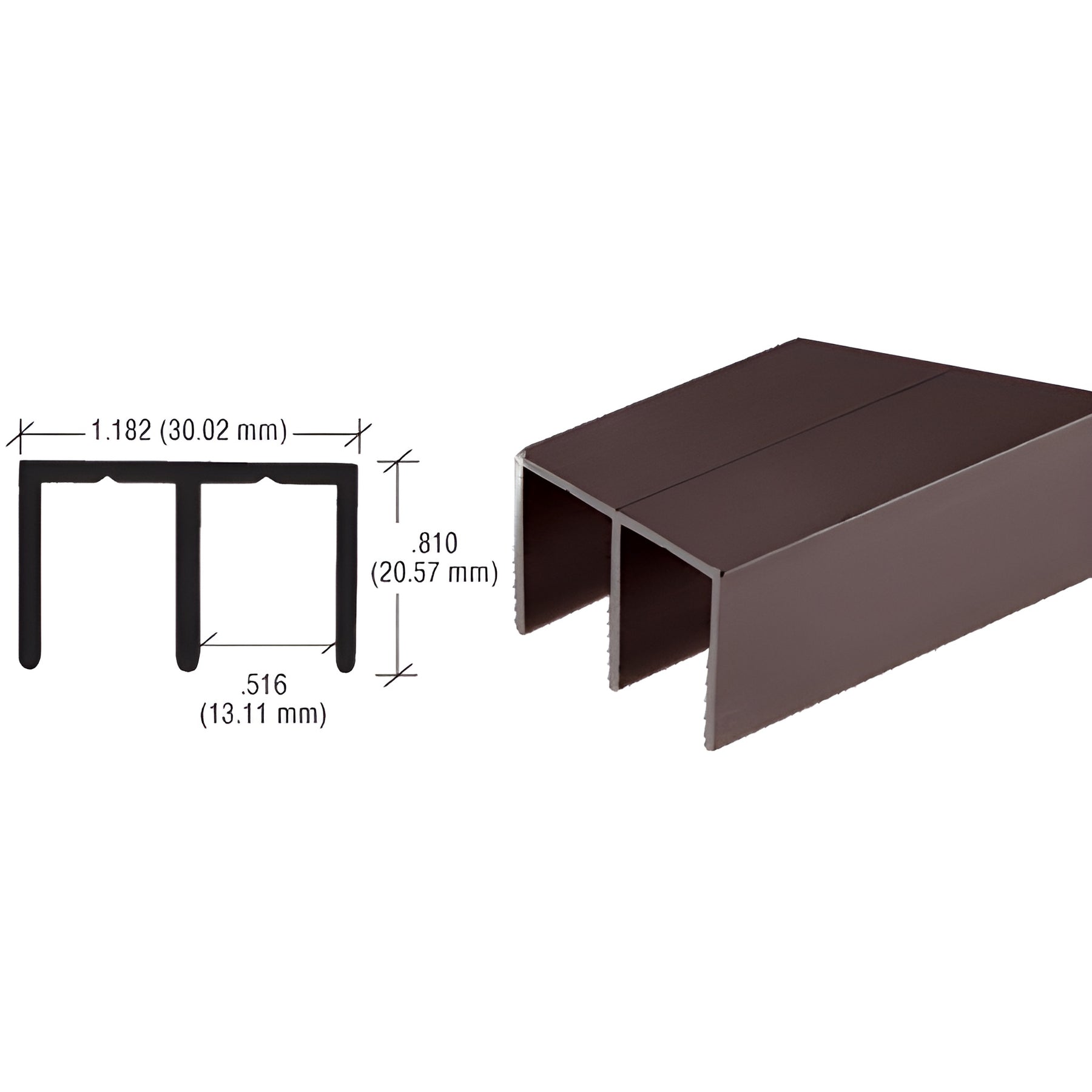

Finish/Color
Dark Bronze Anodized
Height
0.81 in. (20.6 mm)
Length
144 in. (3657.6 mm)
Material
Aluminum
Open Width
0.516 in. (13.1 mm)
Width
1.182 in. (30 mm)
- Made from the Highest Quality No. 6063 Alloy
- Available in Several Finishes
This CRL Extra Depth Aluminum Upper Channel (SKU: D613DU) is a universal double channel designed for sliding door and panel systems. The extra depth allows sliding panels to be lifted into the track and seated on bottom rails, and the D613 upper channel can be used as a top, bottom, or side channel for versatile installation in residential and commercial aluminum sliding door assemblies.
CRL Aluminum Extrusions and Accessories let you customize track assemblies to your specific needs. Manufactured from high-quality No. 6063 T-5 aluminum and uniformly anodized, these extrusions resist scratches, blemishes, and atmospheric corrosion—ideal for durable, long-lasting aluminum sliding door tracks and architectural profiles.
Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment.
Most shipping weights are approximate and have not been verified. If the exact weight is needed to determine shipping costs, please request this prior to submitting your order by contacting CRL Customer Service. Product images shown are of the actual product or a close representation; colors can vary depending on monitor calibration.
