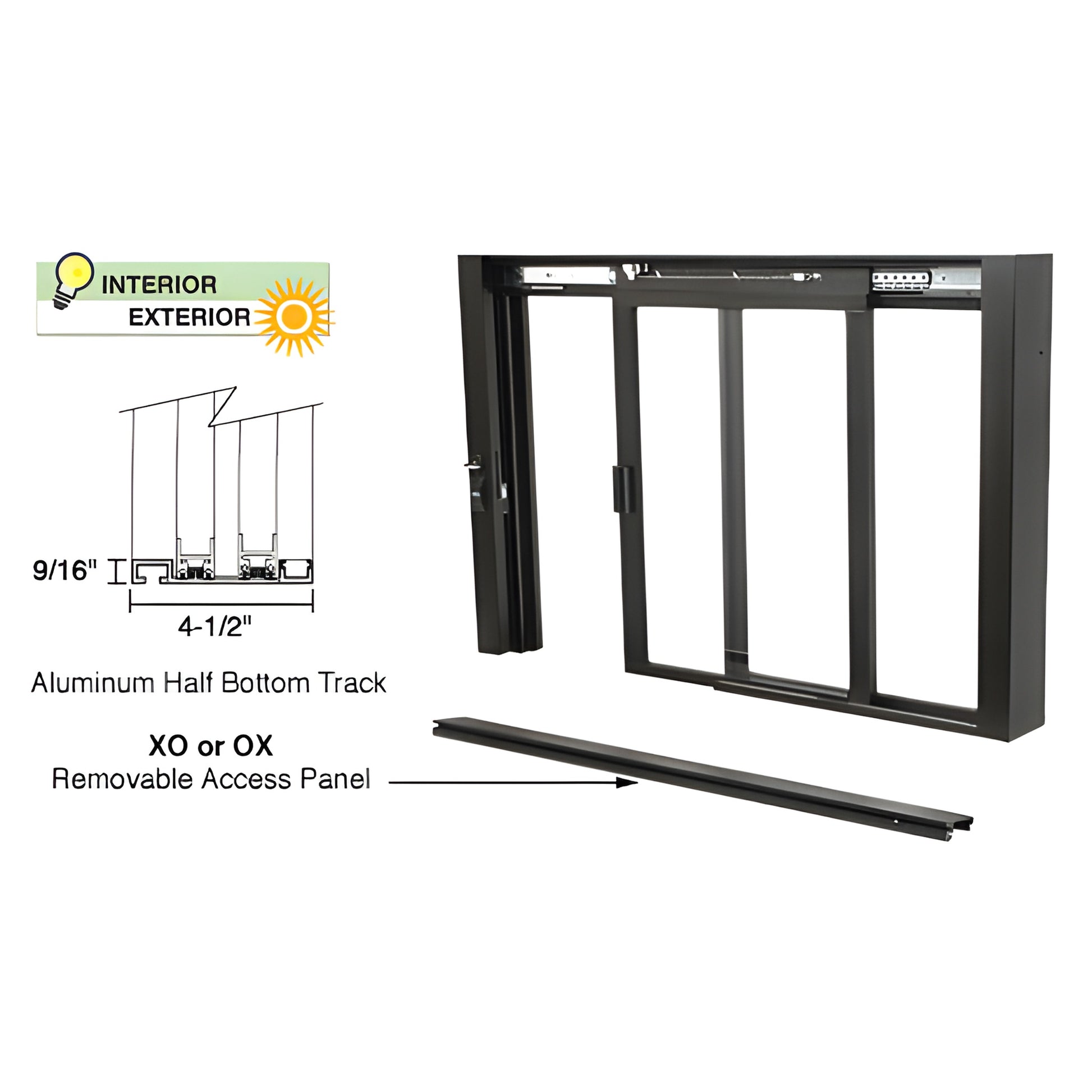

CRL Duranodic Bronze Self-Closing Sliding Service Window

• Custom fabricated to fit rough opening (SKU: SCDW1801DU)
• One fixed panel + one sliding panel configuration
• Self-closing mechanism with self-latching handle for secure operation
• Removable header access panel for easy servicing
• Drawings and specifications available for design and approval
• Available in stock and custom finishes to match your project

CRL "SCDW" Series Service Windows deliver a durable, self-closing service window solution commonly specified for fast food drive-thru and retail counter openings. Built for interior or exterior use and designed for high- or low-frequency traffic, these units use high-quality components for reliable, trouble-free operation.

Because each SCDW unit is custom built to your dimensions, CRL works with you to specify glazing, sill conditions, and transaction hardware so the finished window meets your installation and customer requirements. Options and technical drawings are available to support architects, contractors, and store planners.

For additional information, contact CRL Technical Sales Department.

SPECIFICATIONS:
Materials: Aluminum extrusions; pile weatherstrip; glazing vinyl; stainless steel shelf or sill
Finishes: Satin Anodized, Bronze Anodized, Powder Painted, or KYNAR® Painted (stock & custom finishes available)
Glazing Options: 1/4" to 1/2" (6 to 12 mm) tempered, laminated, or tinted glass; 1/2" (12 mm) insulating glass unit
Option: Fly fan switch
Rough Opening: Add 1/2" (12 mm) to width and 1/4" (6 mm) to height of the frame, including track, sill, or shelf.

NOTE: 26" (660 mm) minimum frame width for SCDW Series Windows.

Why choose SCDW1801DU: Custom-fit, self-closing service window with removable access panel and multiple finish and glazing options—ideal for fast food, retail, and institutional applications. Contact CRL to request drawings, pricing, or to start your custom order.
