CRL Duranodic Bronze Sliding Door Track D609/D603 with Steel Rollers

• D2300 Series
• With D649 Ball Bearing Wheels
• Ideal for commercial or residential sliding door applications
• Designed for quick, easy installation
• Available in up to six stock finishes, including new brushed nickel
• 12' (3.66 m) length

CRL's 12' (3.66 m) Deluxe Rolling Track Assemblies (SKU: D2300DUBB) offer durable, high-performance upper track extrusions with three extrusion options to match your design preference. Engineered for frequent use, these commercial sliding door tracks deliver smooth operation and long-lasting service. Multiple finishes, including brushed nickel, make this a versatile choice for both residential and commercial sliding door systems.

Key features and benefits:

• 12-foot deluxe rolling track assembly for sliding doors
• D649 ball bearing wheels for quiet, reliable rolling
• Multiple upper track extrusion options to suit design and load needs
• Suitable for high-frequency commercial use and residential applications
• Compatible with CRL ratchet and plunger type locks for secure installations
• Dry-glazing option: use Cat. No. GC728C Vinyl for 1/4" (6 mm) glass (sold separately)

NOTE: Maximum suggested panel size is 36" W x 48" H (914 mm x 1.22 m).

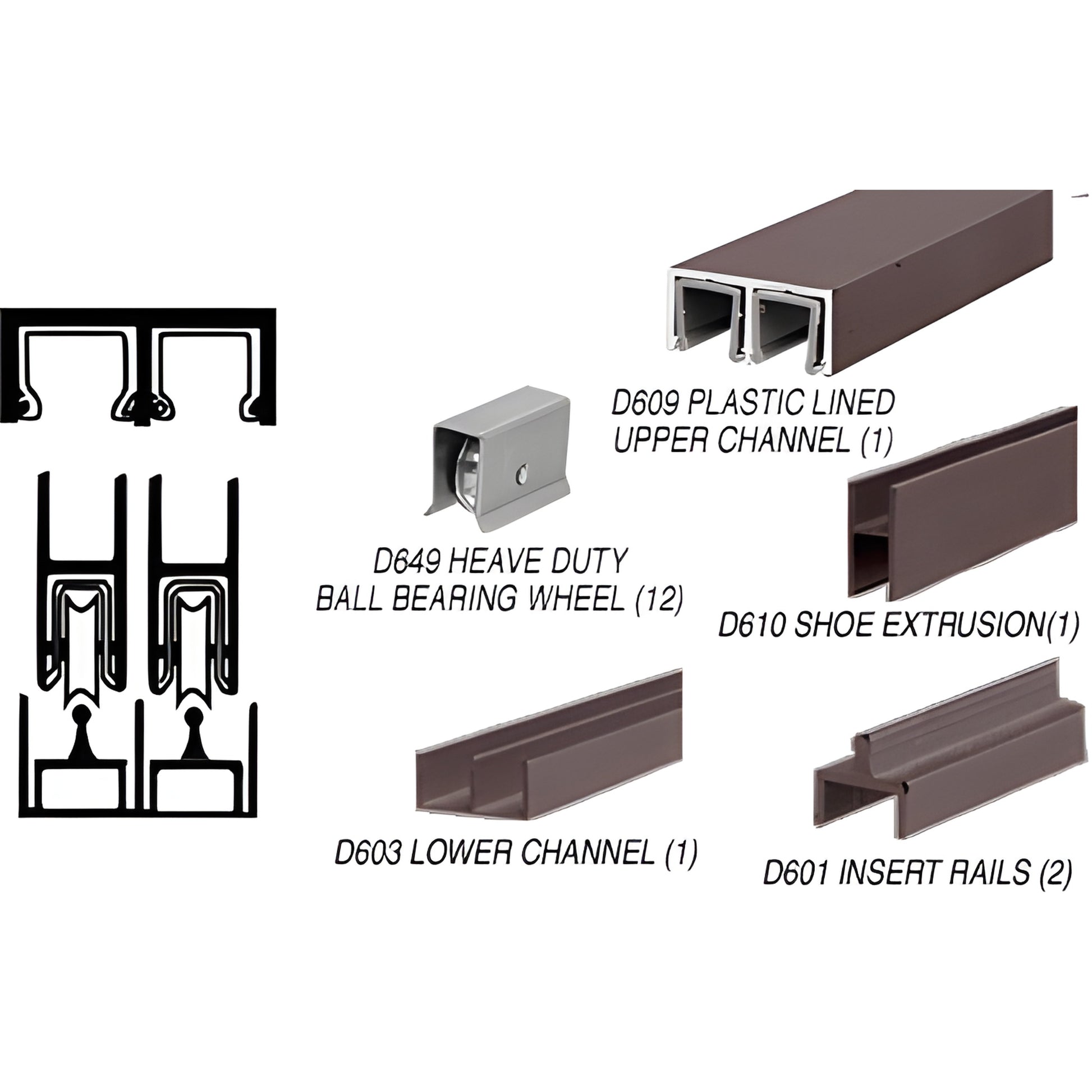

Components for D2300DUBB

• D601 (x2)
• D603 (x1)
• D609 (x1)
• D610 (x1)
• D649 (x12)
• D9650 (x1)

Product Warning:

• Stock lengths must ship via common carrier unless specifically cut for UPS shipment.
• If you need a very tight fit, calculate your own final dimensions. Shown dimensions are guidelines acceptable to most installers.

Glass height guidance for rolling track assemblies:

• D2200 Series: Glass Height = Opening Minus 1-5/16"
• D2203 Series: Glass Height = Opening Minus 1-1/8"
• D2204 Series: Glass Height = Opening Minus 1-1/8"
• D2300 Series: Glass Height = Opening Minus 1-3/8"
• D2301 Series: Glass Height = Opening Minus 1-3/8"
• D2303 Series: Glass Height = Opening Minus 1-3/8"
• D2305 Series: Glass Height = Opening Minus 1-3/8"
• D2306 Series: Glass Height = Opening Minus 1-5/8"
• D2307 Series: Glass Height = Opening Minus 1-5/8"
