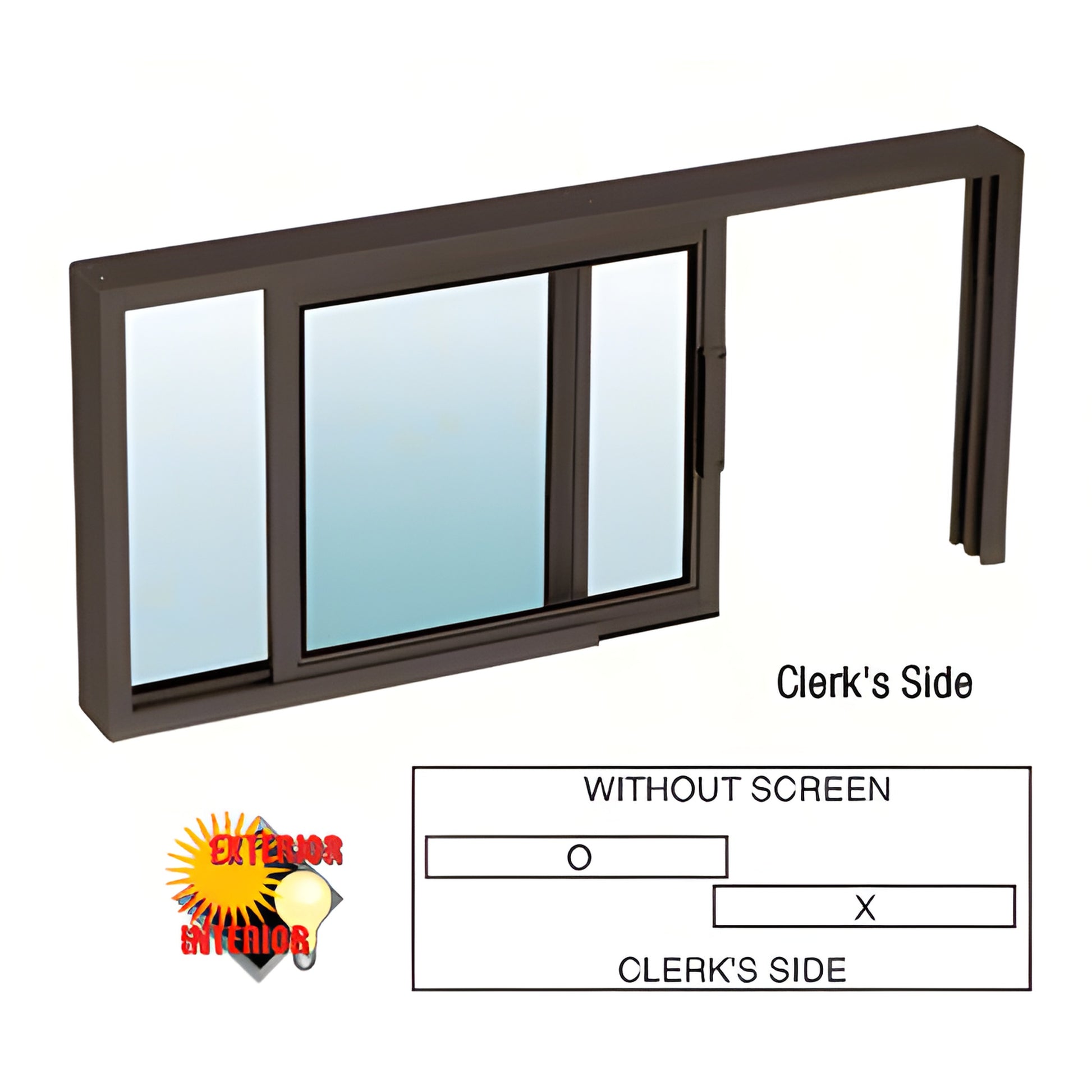

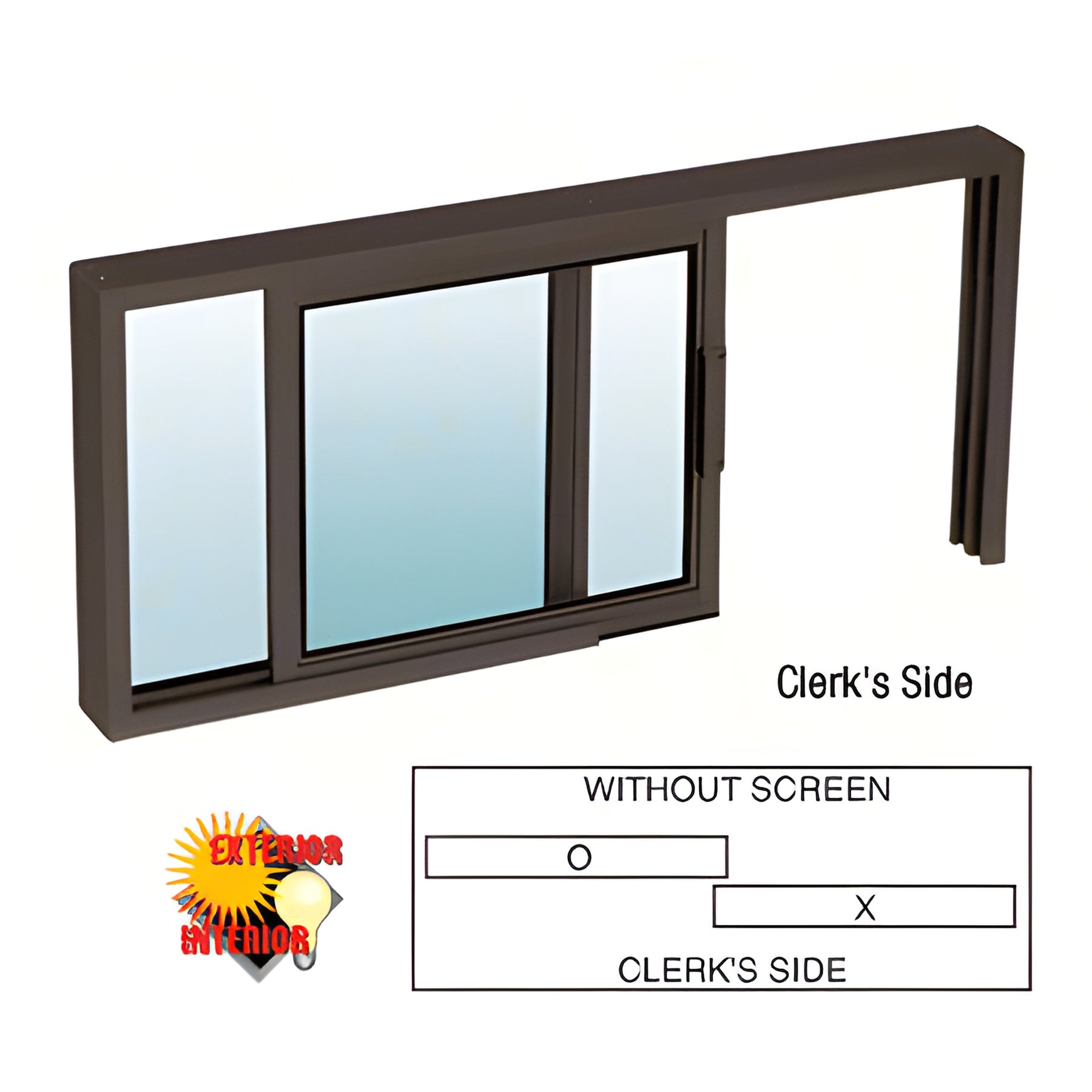

CRL Duranodic Bronze Sliding Service Window 1/8-1/4in Vinyl No Screen

• For light-duty service-window applications of 50 or fewer uses per day
• Single opening with one sliding and one fixed panel
• Available in vertical and horizontal formats
• Each unit is customized to fit your opening and workflow

These CRL Horizontal Sliding Service Windows (SKU SW1800DU and related models) feature one sliding and one fixed panel and are designed as pass-through service windows for clerks and counters. Models are offered non-glazed or pre-glazed with your choice of 1/8" (3 mm) or 1/4" (6 mm) tempered glass, or 1/2" (12 mm) insulating glass, and can be shipped with or without a fiberglass screen. All units ship assembled for fast installation.

Ordering & configuration: Specify left- or right-hand sliding panel (from clerk’s side) when ordering. Surround frame is not available for insulating-glass models. If ordered with a keyed lock, the screen panel will be installed in the center channel. For exterior installations, an overhang is recommended.

SPECIFICATIONS:
Materials: Extruded aluminum; tempered safety glass (on some models); fiberglass screen (on some models)
Finishes: Satin anodized, Duranodic bronze, RAL powder coat, or KYNAR® paint
Glazing: 1/8" (3 mm) or 1/4" (6 mm) tempered glass; 1/2" (12 mm) insulating glass (on some models); vinyl glazing beads supplied on all models
Installation instructions included.

Product warnings & limitations:

Series SW1600 through SW5200 maximum sizes:
144" (3.66 m) wide x 36" (914 mm) high (with restrictions). Example: a 144" (3.66 m) wide window may have a maximum height of only 24" (610 mm) depending on configuration.

These series are intended for pass-through use only and are not constructed with storefront extrusions—do not use for other structural applications.

No keyed lock is available for series SW4200 through SW4800; those models use a screw-in pin lock. Insulated-glass units (including some 1/2" (12 mm) insulating glass models and select Series SW2400, SW3200, SW4200 configurations) are not available with a keyed lock.
