Product Details
- Glass and Screen Panels on Either End Can be Opened as Required
- For Light Duty Applications of 50 or Fewer Uses Per Day
- Available in Vertical and Horizontal Formats
- Each Unit is Customized to Fit Your Needs

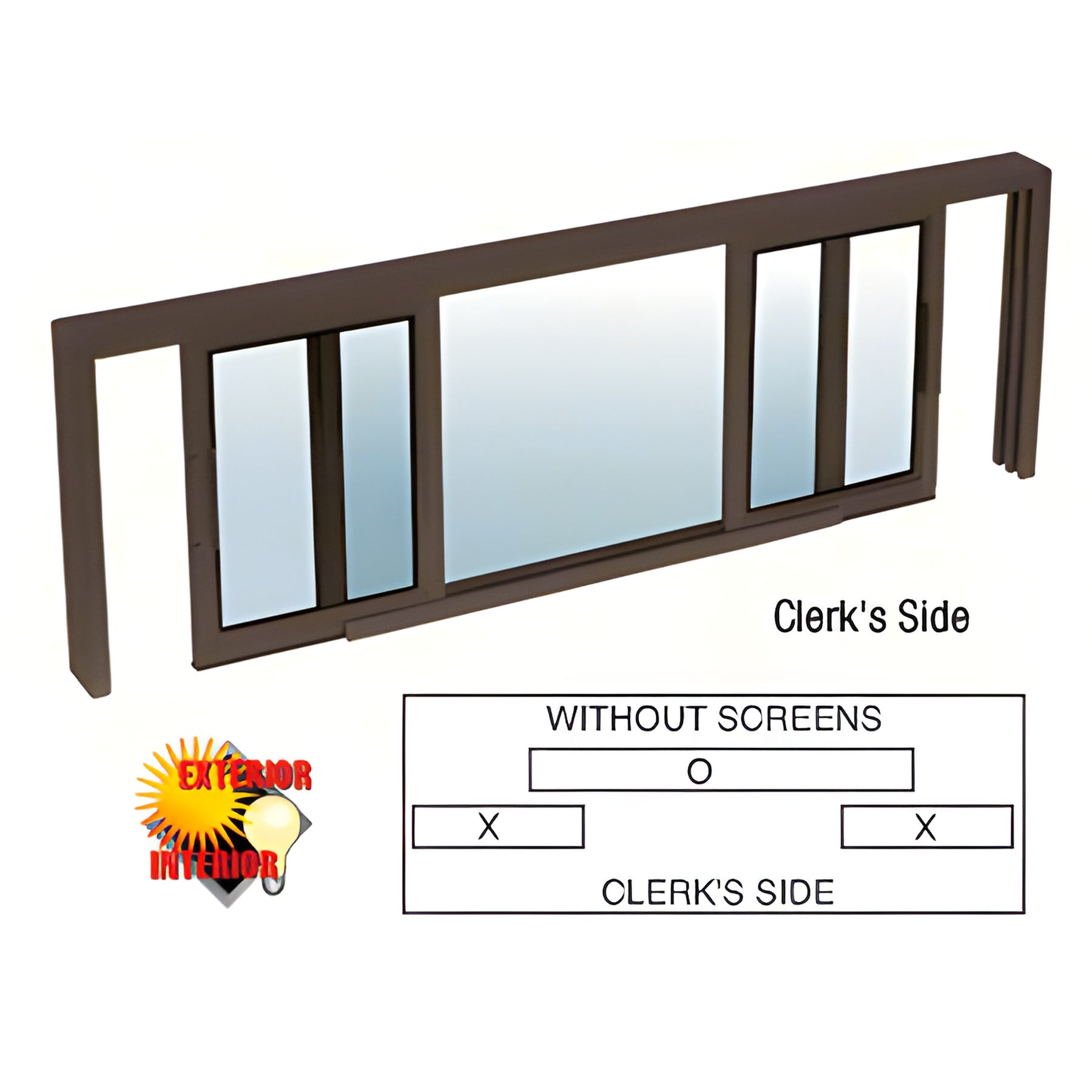

This CRL Horizontal Sliding Service Window has two sliding panels plus a fixed center panel. The center panel's width is twice that of the sliding side panels so both may be opened at one time. Units are normally shipped with vinyls for 1/8" (3 mm) or 1/4" (6 mm) glazing materials. Windows may also be ordered pre-glazed with 1/8" (3 mm) or 1/4" (6 mm) tempered glass, or 1/2" (12 mm) insulating glass. NOTE: If ordered with Keyed Locks the sliding screens will be installed in the center channel. Surround Frame not available for insulating glass models. An overhang is recommended if used in an exterior application.
SPECIFICATIONS:
Materials: Extruded Aluminum; Tempered Safety Glass (On Some Models); Fiberglass Screen (On Some Models)
Finishes: Satin Anodized, Duranodic Bronze, RAL Powder Painted or Kynar Painted
Glazing: 1/8" (3 mm) or 1/4" (6 mm) Tempered Glass; 1/2" (12 mm) Insulating Glass (On Some Models); Vinyl Supplied on All Models
Instructions Included
Product Warning:
Horizontal Service Window Series SW1600 THRU SW5200 Have these Maximum Sizes:
144" (3.66 m) Wide x 36" (914 mm) High (With Restrictions)
EXAMPLE: A 144" (3.66 m) wide window has a maximum height of only 24" (610 mm).
Please be advised that Series SW1600 thru SW5200 windows are intended to be used as Pass-Through Windows. They are not constructed with storefront extrusions, and therefore are not intended for any other use.
No keyed lock is available for series SW4200 through SW4800. They are supplied with a screw-in Pin Lock.
Insulated glass windows, or 1/2" (12 mm) insulated Glass Windows, or 1/2" (12 mm) glass units with screens (Series SW2400, SW3200 and SW4200) are not available with a keyed lock.
