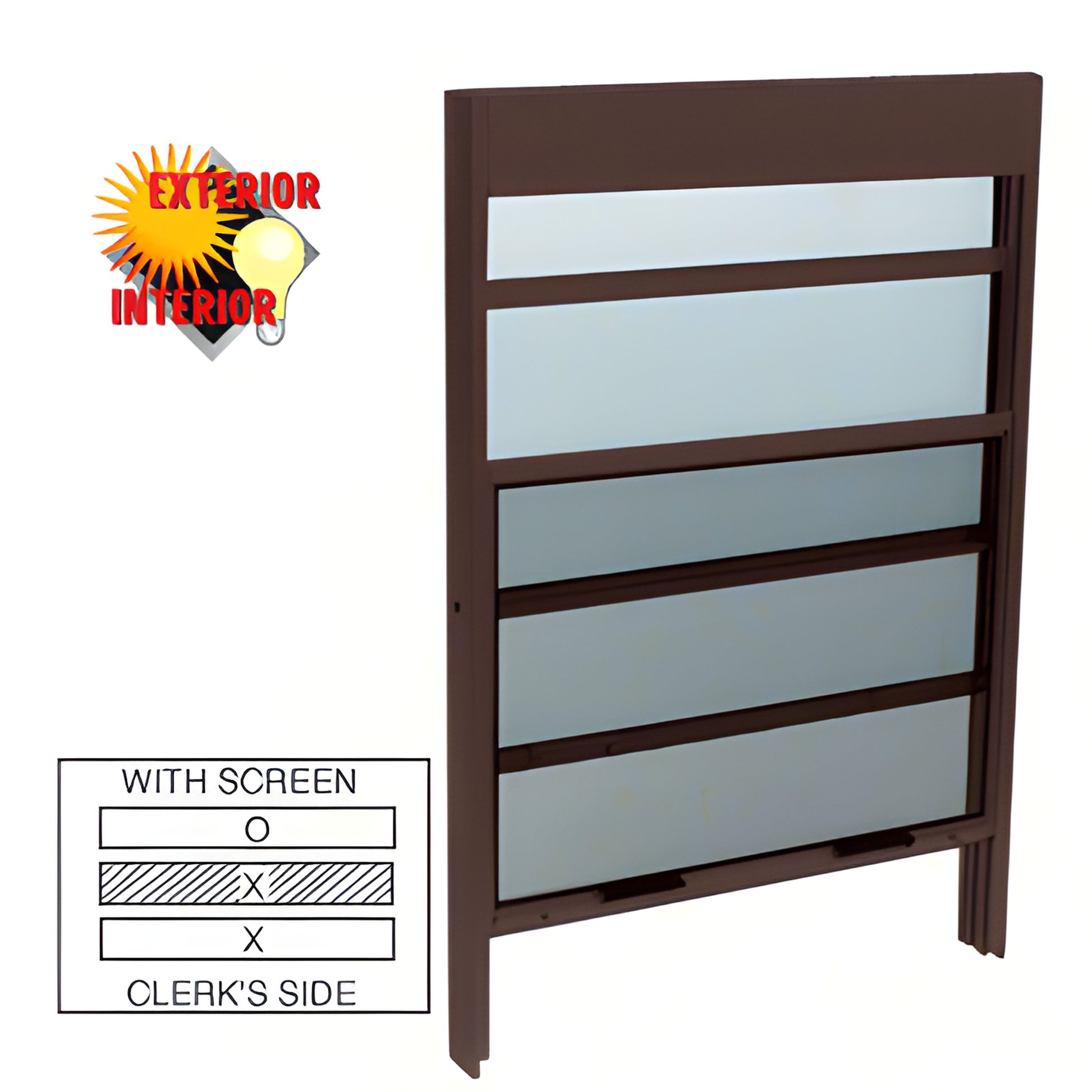

CRL Duranodic Bronze Sliding Service Window, 1/4" Glass & Screen
CRL Duranodic Bronze Sliding Service Window, 1/4" Glass & Screen
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# SWB1214DU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Configuration
One Fixed Top Panel And One Sliding Lower Panel
Finish/Color
Duranodic Bronze Anodized
Glazed
Yes
Glazing Thickness
1/4 in. (6 mm)
Glazing Type
Tempered (Specify)
Handing
Specify
Material
Aluminum
Panel Designation
O = Fixed, X = Sliding
Screen
Yes
Usage
Interior,Exterior
Window Style
Vertical Sliding
Overview
- For light-duty applications of 50 or fewer uses per day
- For windows exceeding 1050 square inches (width x height)
- Available pre-glazed or non-glazed
- Each unit is customized to your needs (custom-sized sliding service window, SKU: SWB1214DU)
CRL "SW" Series Sliding Service Window — versatile interior or exterior sliding service window for walk-up food service, receptionist counters, pharmacies, concession stands and other customer-service openings. Choose vertical or horizontal formats: vertical windows use nylon runners over coiled tension springs for smooth operation; horizontal windows run on top nylon guides. For larger openings we recommend a full bottom track with rollers for added durability.
All larger vertical-format service windows exceeding 1050 square inches require concealed sash balances located behind a 4-5/8" (117 mm) tall header. For exterior installations an overhang is recommended.
NOTE: Specify handling when ordering — left or right hand fixed from clerk's side. Surround frame is not available for insulating glass models. If ordered with keyed lock, the screen panel will be installed in the center channel.
SPECIFICATIONS:
Materials: Extruded aluminum; tempered safety glass on some models; fiberglass screen on some models.
Finishes: Satin anodized, Duranodic bronze, RAL powder coat or KYNAR® painted. Painted units ship glazed only.
Glazing: 1/4" (6 mm) glass.
Installation: Installation instructions included.
Product Warning:
All larger vertical-format service windows which exceed 1050 square inches (width x height) require sash balances.
Order the CRL SW Series sliding service window (SKU: SWB1214DU) for a customizable, durable solution for food-service and customer-service openings. Contact CRL or add to cart to start a custom order.
