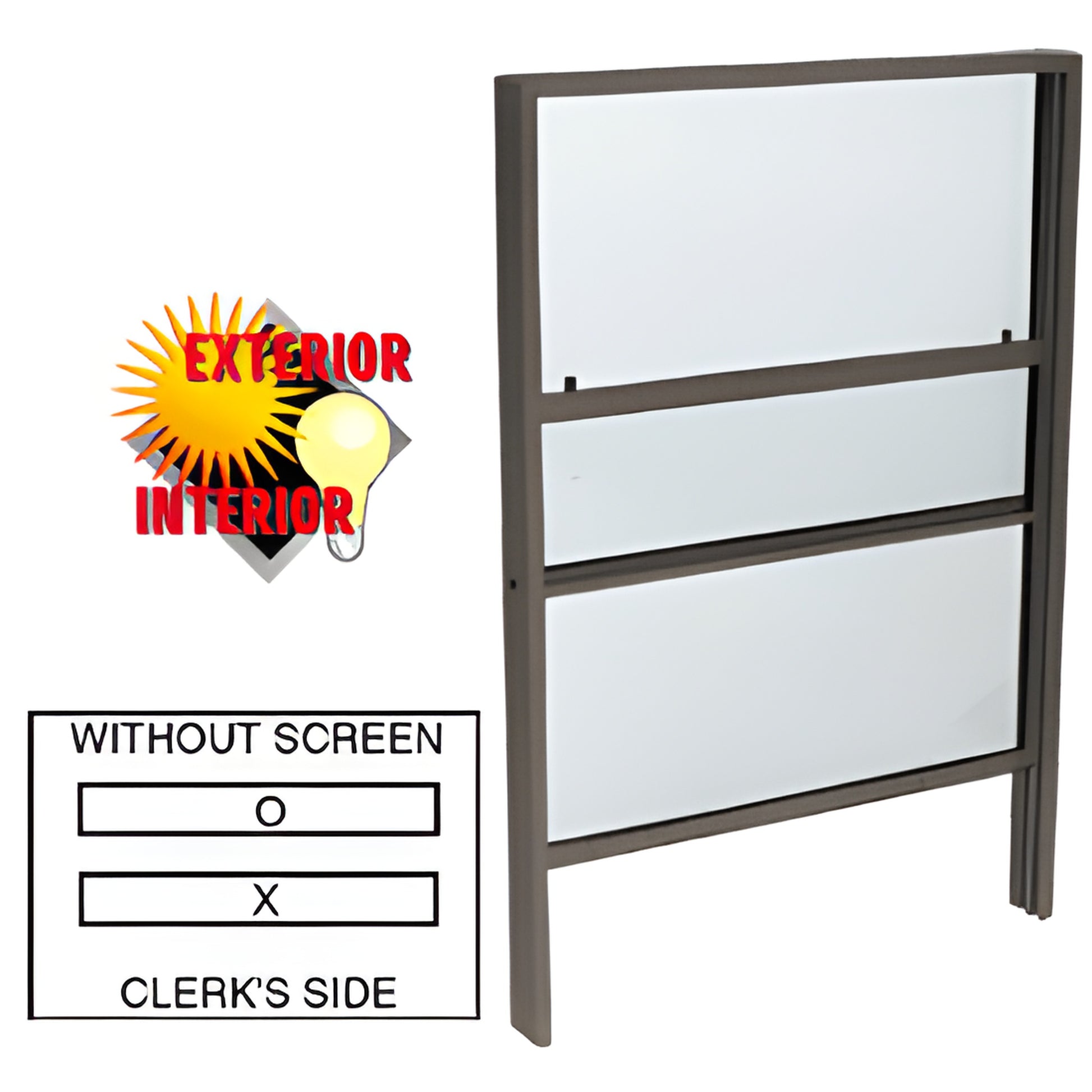

  • SW1000DU vertical sliding service window, aluminum duranodic bronze frame; fixed upper panel, sliding lower panel - no screen
1 2

CRL

CRL Duranodic Bronze Vertical Sliding Window 1/4in Vinyl No Screen

CRL Duranodic Bronze Vertical Sliding Window 1/4in Vinyl No Screen

Shipping calculated at checkout.
View More Information Buy More, Save More
Item# SW1000DU
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
One Fixed Top Panel And One Sliding Lower Panel
Finish/Color
Duranodic Bronze Anodized
Glazed
No
Glazing Thickness
1/4 in. (6 mm)
Material
Aluminum
Panel Designation
O = Fixed, X = Sliding
Screen
No
Usage
Interior,Exterior
Window Style
Vertical Sliding

Overview

  • For light-duty applications of 50 or fewer uses per day
  • Fixed top panel; sliding lower panel
  • Available in vertical and horizontal formats
  • Available pre-glazed or non-glazed
  • Each unit is customized to fit your needs

These CRL Vertical Sliding Service Windows (SKU: SW1000DU) feature one lower sliding panel and one fixed upper panel, designed for light-duty vertical sliding service window installations. Units are normally supplied with vinyl to accommodate 1/4" (6 mm) glazing; select models can be ordered pre-glazed with 1/4" (6 mm) tempered glass. Some configurations offer a sliding fiberglass screen. All windows ship assembled and ready for glazing and installation—ideal as a custom-sized service window for kiosks, concession stands, ticket booths, and interior pass-throughs.

NOTE: Windows exceeding 1050 square inches (width x height) will require a covered top to conceal sash balances. An overhang or awning is recommended for exterior applications.

SPECIFICATIONS:
Materials: Extruded aluminum; tempered safety glass (on some models); fiberglass screen (on some models)
Finishes: Satin anodized, duranodic bronze, RAL powder painted, or KYNAR® painted
Glazing: 1/4" (6 mm) vinyl (standard); select models available pre-glazed with 1/4" (6 mm) tempered glass
Installation: Installation instructions included

Most shipping weights are approximate and have not been verified. If exact weight or shipping costs are required to complete your order, please request this information prior to submitting your order by contacting CRL Customer Service. Product images are representative; actual colors can vary depending on monitor settings.


Contact CRL Customer Service to request a custom quote or confirm glazing and shipping options for SKU SW1000DU.
