CRL DW 4-Panel Satin Anodized Manual Sliding Window OXXO No Screen

CRL DW 4-Panel Satin Anodized Manual Sliding Window OXXO No Screen

Shipping calculated at checkout.
Quantity
Item# DW3400A
Shipping Weight: NA
Shipping Limitations: No UPS - Common Carrier Only
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
View full details

Product Information

Description

Configuration
OXXO
Finish/Color
Satin Anodized
Glazed
Yes
Glazing Thickness
1/4 in. To 5/8 in. (6 mm To 16 mm)
Glazing Type
Specify
Panel Designation
O = Fixed, X = Sliding
Panel Quantity
4
Screen
No
Usage
Interior,Exterior

Overview

  • OXXO double-slider four-panel configurations — four finishes
  • Each unit is custom-made to your specifications (SKU DW3400A)
  • Finishes: Satin anodized, bronze anodized, powder or KYNAR® paint, and custom anodized

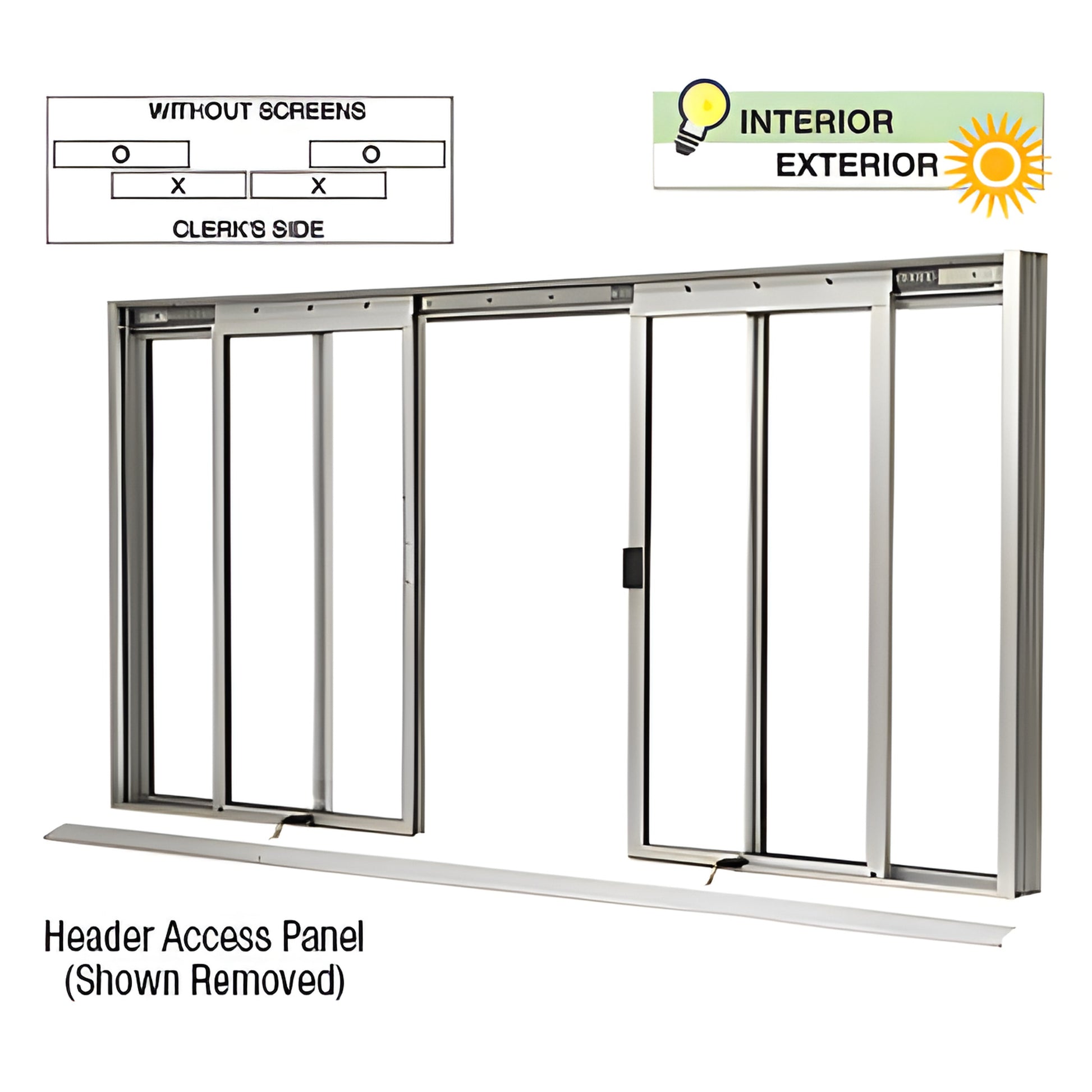

CRL Four Panel Manual Deluxe Sliding Service Window (DW3400A) is designed for applications that require an extra-wide service opening. Two center sliding panels meet in the middle and are flanked by fixed side panels to maximize the opening width. Heavy-duty construction provides years of maintenance-free operation. Models available with or without screens.

Features:

  • Removable header access panel for easy servicing
  • Adjustable sliding panel to compensate for uneven counter surfaces
  • Upgraded full-length heavy-duty ball-bearing carrier for smooth operation
  • Newly designed self-locking handle

Available glazing options:

  • 1/4" (6 mm) — tempered, laminated, tinted, wire
  • 9/16" (14 mm) — laminated
  • 1/2" (12 mm) — tempered, laminated, tinted, insulating
  • 5/8" — insulating

Available options:

  • Keyed lock
  • Full bottom track
  • Burglar bar
  • Laminated counter shelf
  • Stainless steel counter shelf
  • Surrounding frames to form sidelites
  • Transoms to fill large openings
  • Open counter area
  • Deal tray
  • Fly fan switch
  • Air curtain

Most shipping weights are approximate. If exact weight or verified shipping costs are required to complete your order, contact CRL Customer Service prior to ordering. Product images are representative; actual colors may vary by monitor settings.

Order the DW3400A four-panel manual deluxe sliding service window today to get a customizable, heavy-duty wide service opening for counters and service areas.
