CRL Custom Color Custom KYNAR® Paint DW Series Manual Deluxe Sliding Service Window OX or XO without Screen
Buy More, Save More!
| Product quantity | Discount |
|---|---|
| Buy 3 | 2% off |
| Buy 5 | 4% off |
| Buy 10 | 6% off |
| Buy 15 | 8% off |
| Buy 20 | 10% off |
Overview
| SKU | DW1800K |
|---|---|
| Pack Size | 1 |
| Shipping Limitations | Shipping Quote Required |
| Configuration | XO,OX |
| Finish/Color: | Kynar Painted |
| Glazed | Yes |
| Glazing Thickness | 1/4 in. To 5/8 in. (6 mm To 16 mm) |
| Glazing Type | Specify |
| Panel Designation | O = Fixed, X = Sliding |
| Panel Quantity | 2 |
| Screen | No |
| Usage | Interior,Exterior |
Description
Product Details
- The Perfect Drive-Up Service Window for Fast Food Restaurants, Pharmacies, Dry Cleaners, Etc.
- Each Two Panel Unit is Custom Fabricated to Fit the Opening
- Six Choices of Sliding Configurations to Meet Most Any Design Criteria
- Ball Bearing Top Hung Sliders for Easy Window Movement
- Hundreds of Available Colors
- Removable Header Access Panel to Enable Servicing
- Adjustable Sliding Panel to Compensate for Uneven Counter Surfaces
- Upgraded Full Length Heavy-Duty Ball Bearing Carrier
- Newly Designed Self-Locking Handle Available Glazing Options:
- 1/4" (6 mm) Tempered, Laminated, Tinted, Wire
- 9/16" (14 mm) Laminated
- 1/2" (12 mm) Tempered, Laminated, Tinted, Insulating
- 5/8" Insulating Available Options:
- Keyed Lock
- Full Bottom Track
- Burglar Bar
- Laminated Counter Shelf
- Stainless Steel Counter Shelf
- Surrounding Frames to Form Side Lites
- Transoms to Fill Large Openings
- Open Counter Area
- Deal Tray
- Fly Fan Switch
- Air Curtain

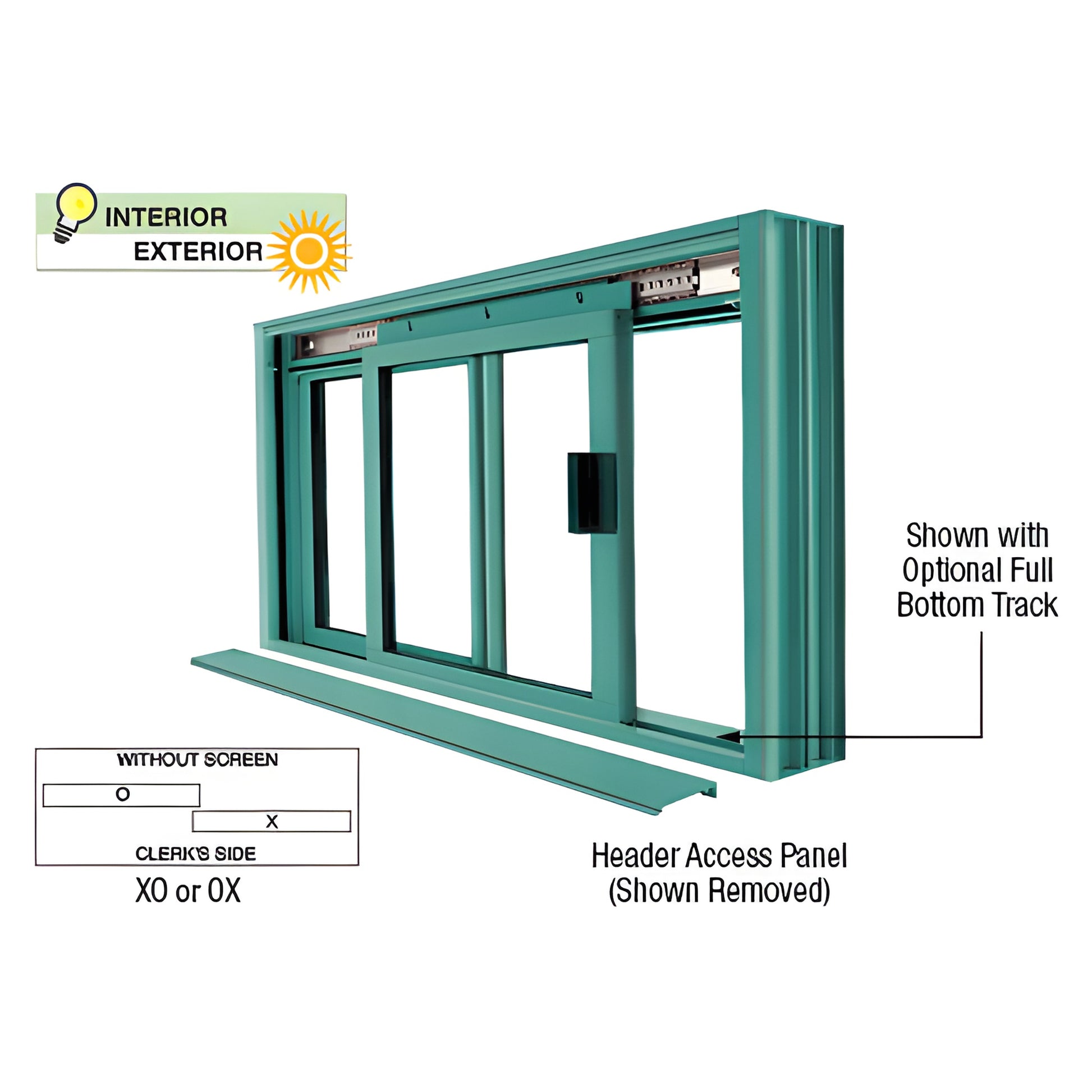

This CRL Two Panel Manual Deluxe Sliding Service Window is one of our most popular models. The unit has one fixed and one sliding panel. When choosing the configuration, the sliding panel is called out from the clerk's side of the opening. Each window is custom made to your exact specifications. Their heavy-duty design and construction will give years of maintenance-free operation. Models are available with or without screens.
Features:
Removable Header Access Panel to Enable Servicing
Adjustable Sliding Panel to Compensate for Uneven Counter Surfaces
Upgraded Full Length Heavy-Duty Ball Bearing Carrier
Newly Designed Self-Locking Handle
Available Glazing Options:
1/4" (6 mm) Tempered, Laminated, Tinted, Wire
9/16" (14 mm) Laminated
1/2" (12 mm) Tempered, Laminated, Tinted, Insulating
5/8" Insulating
Available Options:
Keyed Lock
Full Bottom Track
Burglar Bar
Laminated Counter Shelf
Stainless Steel Counter Shelf
Surrounding Frames to Form Side Lites
Transoms to Fill Large Openings
Open Counter Area
Deal Tray
Fly Fan Switch
Air Curtain
Specifications
Technical Resources
Installation Instructions
Quote Request Forms
Specifications
CAD Drawings - pdf
CAD Drawings - dwg
Warranty
