CRL Extruded Aluminum Heavy-Wall Screen Frame 29/32" x 7/16" 144"
Item# WSF17XA
Shipping Weight: 1.88 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.88 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Case Quantity
50
Finish/Color
Mill

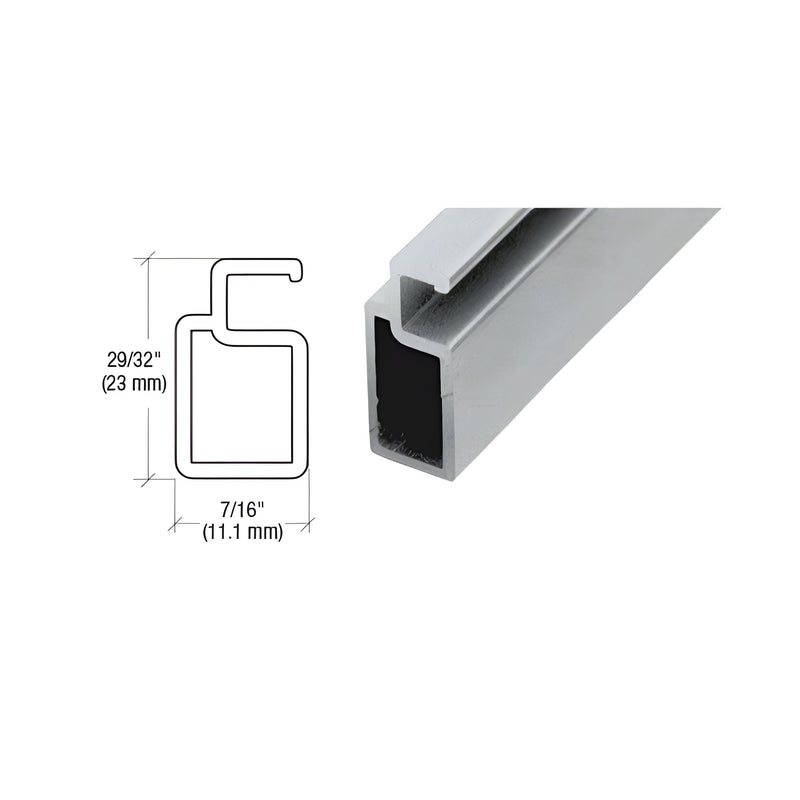

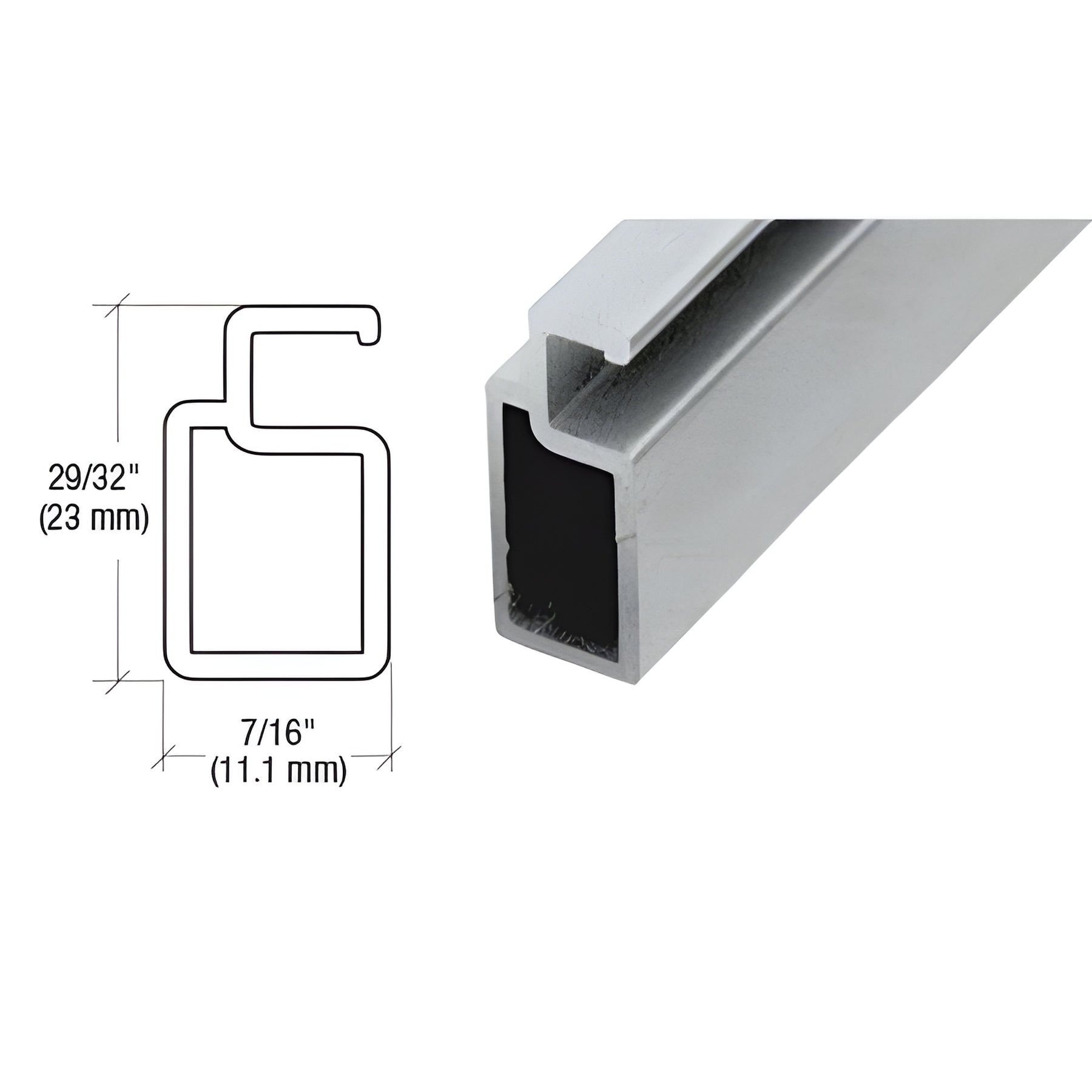

Height
29/32 in. (23 mm)
Length
12 ft. (3.7 m)
Wall Thickness
0.050 in. (1.3 mm)
Width
7/16 in. (11 mm)
- Ideal for larger window openings and commercial window and door screen applications
- .050" (1.3 mm) extruded aluminum wall for heavy-duty strength
- Several finishes available; accepts .250" spline and WSC109 mitered corners
This CRL Extruded Screen Frame (SKU: WSF17XA) is manufactured from .050" (1.3 mm) extruded aluminum for superior rigidity and long-lasting performance in commercial and large-window installations. It accepts .250" (.250 inch / 6.3 mm) spline and CRL WSC109 mitered corners, making it a reliable heavy-duty screen frame for storefronts, commercial doors, and oversized residential openings.
SPECIFICATIONS:
Material: Extruded Aluminum
Wall Thickness: .050" (1.3 mm)
Spline Size: .250" (6.3 mm)
Compatible Corners: WSC109 mitered corners
Product Warning:
Stock lengths must ship via common carrier unless cut for UPS. Some CRL catalogs list 220 diameter spline, which provides a loose fit; for a secure, tight fit use 250 diameter spline (Cat. Nos. SS250C or SS250B).
Most shipping weights are approximate and may vary. If exact weight is required to calculate shipping costs, contact CRL Customer Service before ordering. Product images are representative; actual color may vary by monitor.
Order SKU WSF17XA today or contact CRL Customer Service for custom cuts and shipping details.
