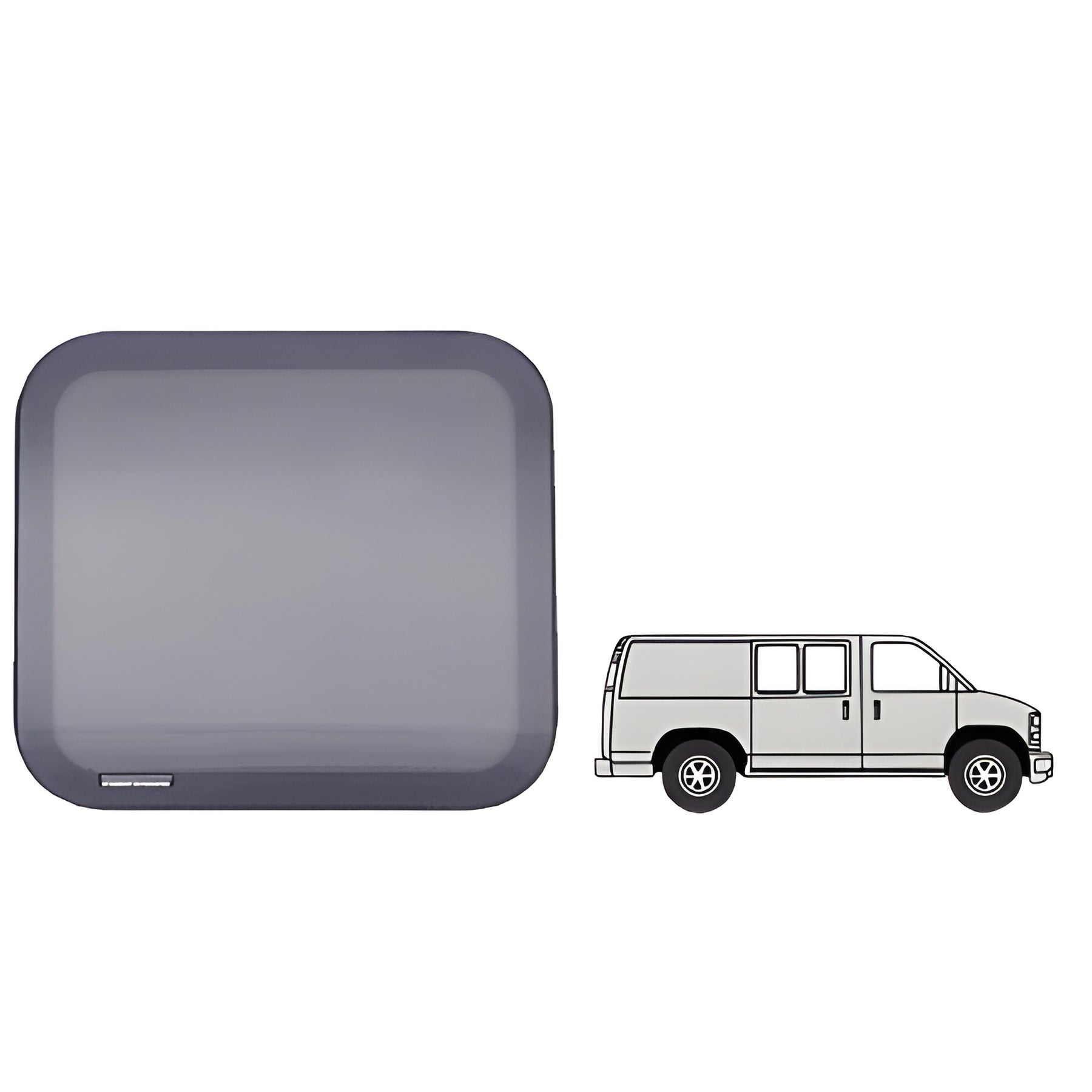

CRL Fixed 'All-Glass' Look 40% Window - Side Hinged and Sliding Door for 1997+ Chevy/GMC Vans 17-11/16" x 22-1/8"

Buy More, Save More!

Product quantity Discount
Buy 3 2% off
Buy 5 4% off
Buy 10 6% off
Buy 15 8% off
Buy 20 10% off

Overview

SKUFW131
Pack Size1
Shipping LimitationsShipping Quote Required
ApplicationPassenger Side,Sliding Door
Clamp Ring1/8 in. (3 mm)
Clamp Ring Angle90/90
Cut Out Height20-7/8 in. (530 mm)
Cut Out Width16-7/16 in. (418 mm)
Height4.25 in. (108 mm)
Length24.75 in. (628.65 mm)
Outside Frame Dimensions17-11/16 in. X 22-1/8 in. (449 mm X 562 mm)
TypeFixed
Vehicle MakeChevy,GMC
Vehicle ModelFull Size Van
Wall Thickness1/8 in. (3 mm)
Width21.75 in. (552.45 mm)
Year1997-2019

Description

Product Details

  • Matches Factory Flush Look
  • Dark Solar Privacy Glass
  • Contoured to Match Side Walls and Doors

The newest thing in van windows is CRL 'All-Glass' Look selection for current model Chevy/GMC, Ford and Dodge full size vans. They are the perfect accent to aerodynamic van styling, with dark solar privacy glass that goes right to the edge for a flush look. Interior structural framing has a black powder-coat finish, concealed from outside view by the silk-screened black fade edge of the glass. The entire unit is contoured to match the sidewall or door, making installation as simple as conventional fully framed windows. Our T-Vent Bay Windows feature state-of-the-art operating hardware on opening panels. Models are available to fit the forward and rear driver and passenger side rear panels, plus sliding and hinged side or rear doors.

The FW131 40% Fixed Window can be used in the rear side hinged door as well as the forward side hinged door and the sliding door.

NOTE: Because of their custom fit design, specific model applications are not interchangeable between van manufacturers.

Specifications
