CRL Flat Black D603/D601 Sliding Door Track w/ Steel Ball Bearings
CRL Flat Black D603/D601 Sliding Door Track w/ Steel Ball Bearings
Regular price
$146.41 CAD
Regular price
Sale price
$146.41 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# D2301BLBB
Shipping Weight: NA
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: NA
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Anti-Lift Feature
No
Finish/Color
Flat Black
Glazing Thickness
1/4 in. (6 mm)
Material
Aluminum
Usage
Interior
Overview
- Includes D649 ball bearing wheels for smooth operation
- Ideal for commercial and residential sliding glass doors
- Designed for quick, easy installation
- Available in up to six stock finishes, including new brushed nickel
- 12' (3.66 m) length
CRL 12' Deluxe Rolling Track Assemblies (SKU: D2301BLBB) offer three upper track extrusion options to match design and performance needs. Built for frequent use, these rolling track assemblies feature durable ball bearing wheels and multiple finish choices for long-lasting, trouble-free sliding door operation. Compatible with CRL ratchet and plunger locks (sold separately). For dry glazing with 1/4" (6 mm) glass, use Cat. No. GC728C vinyl (sold separately).
Maximum suggested panel size: 36" W x 48" H (914 mm x 1.22 m).

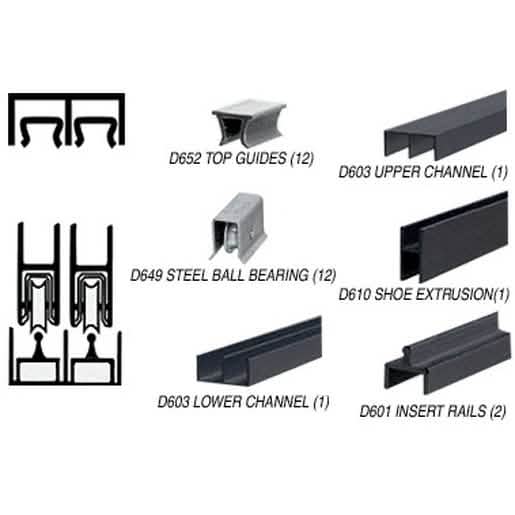

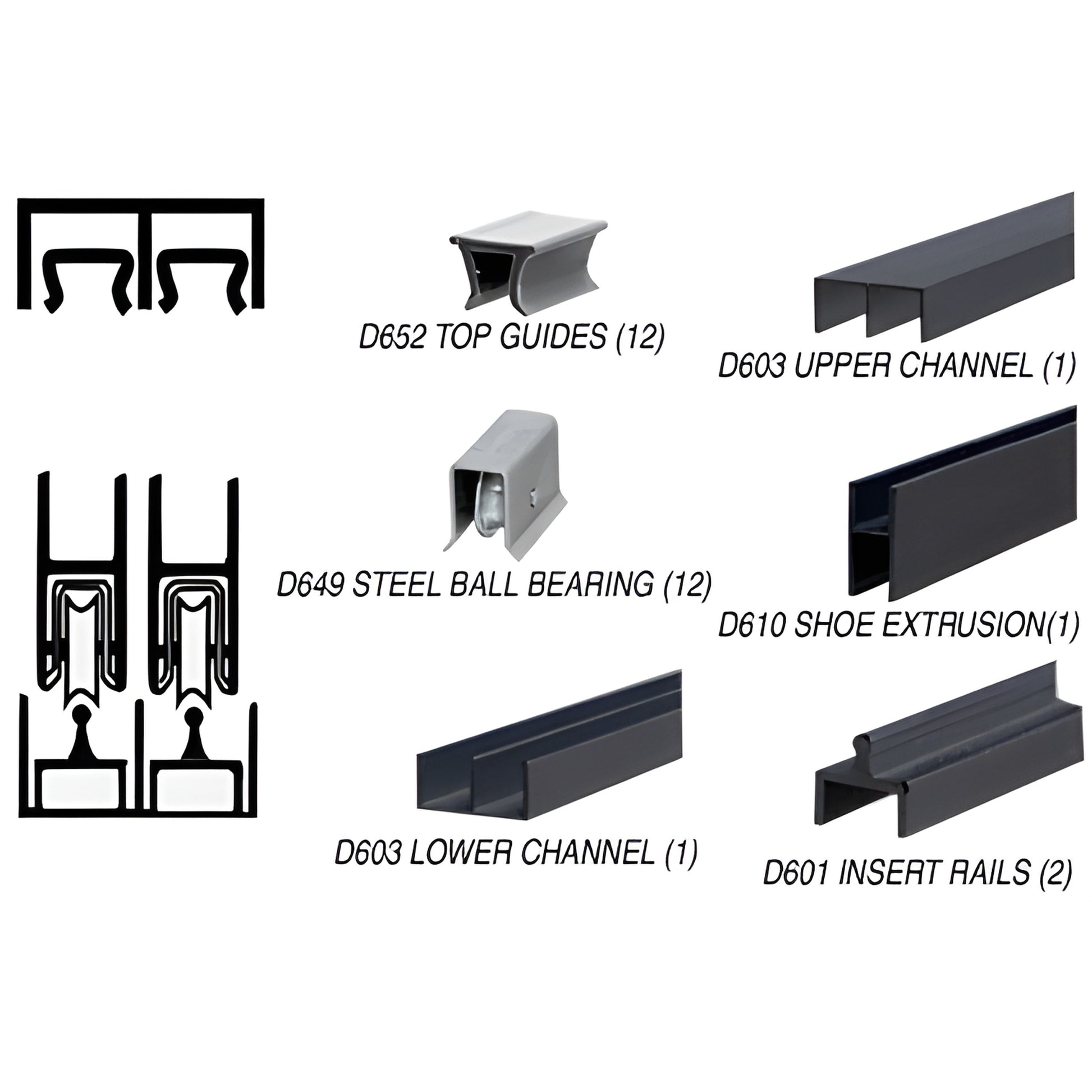

Components for D2301BLBB:
D601 (x2)
D603 (x2)
D610 (x1)
D649 (x12)
D652 (x12)
D9650 (x1)
Glass height reference — D2301 Series: Glass Height = Opening Minus 1-3/8".
Product Warning:
- Stock lengths must ship via common carrier unless specifically cut for UPS shipment.
- Dimensions shown are guideline dimensions. For a very tight fit, verify and calculate your own dimensions.
Shop the D2301BLBB 12' rolling track assembly for premium sliding door hardware with ball bearing wheels and brushed nickel finish options — order now.
Specifications
CAD Drawings - dwg
