CRL Flat Black Sliding Door Track Assembly D609/D603 Nylon Wheels

• D2300 Series
• With D650 Nylon Wheels
• Ideal for Commercial or Residential Applications
• Designed for Quick and Easy Installation
• Available in Up to Six Stock Finishes, Including New Brushed Nickel
• 12' (3.66 m) Length

CRL's 12' (3.66 m) Deluxe Rolling Track Assemblies (SKU: D2300BL) are heavy-duty sliding door tracks designed for high-frequency commercial or residential use. Choose from three upper-track extrusion options and up to six stock finishes—including new brushed nickel—for a customizable sliding door hardware solution. Featuring D650 nylon wheels for quiet, smooth rolling performance, this assembly is known for easy installation, long service life, and trouble-free operation.

Accessories and security: CRL offers a large selection of locks (ratchet and plunger types) to secure sliding doors. For dry glazing with 1/4" (6 mm) glass, use Cat. No. GC728C vinyl (sold separately).

NOTE: Maximum suggested panel size: 36" W x 48" H (914 mm x 1.22 m).

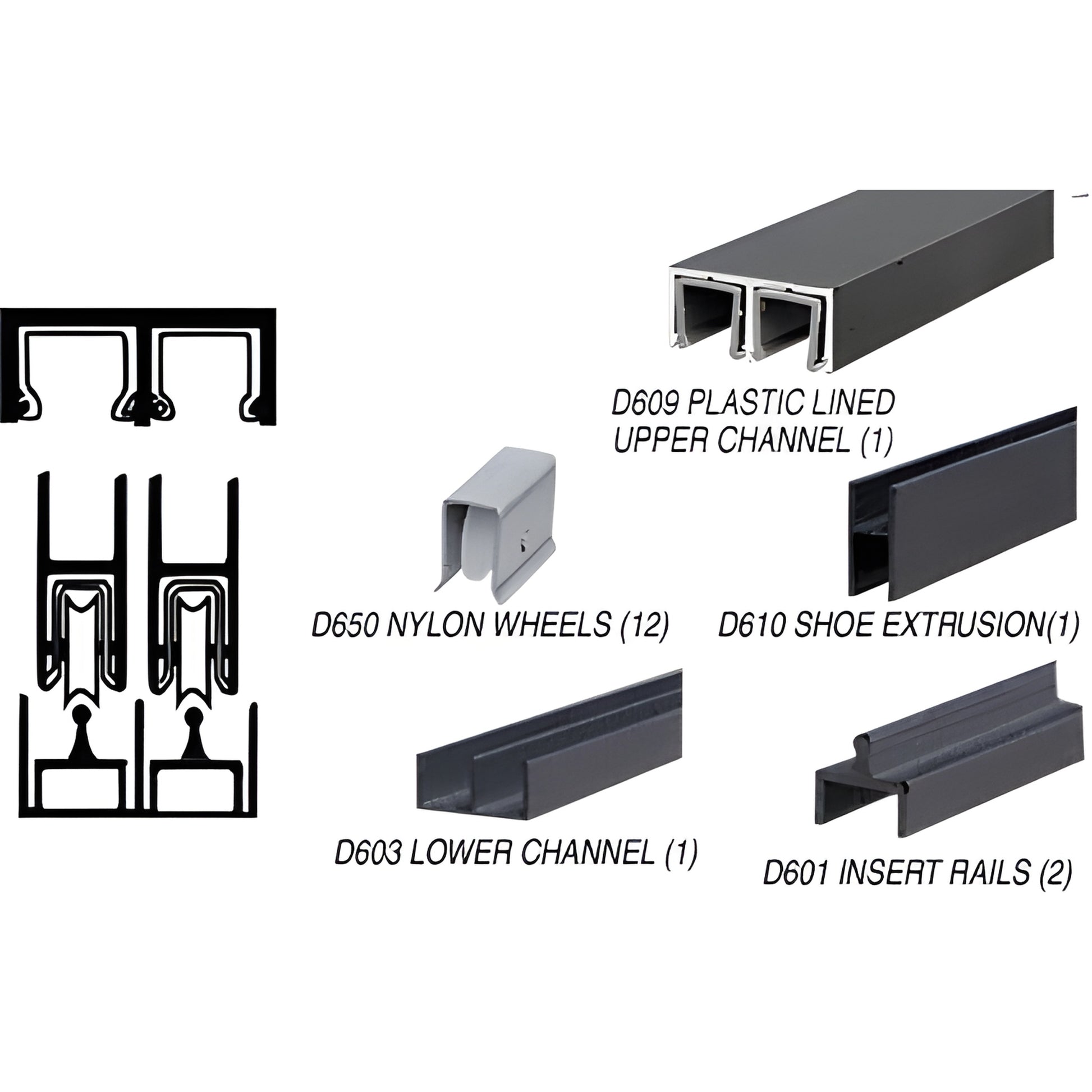

Components for D2300BL

• D601 (x2)
• D603 (x1)
• D609 (x1)
• D610 (x1)
• D650 (x12)
• D9650 (x1)

Glass height guidelines (use for rough measurements)

• D2200 Series: Glass Height = Opening Minus 1-5/16"
• D2203 Series: Glass Height = Opening Minus 1-1/8"
• D2204 Series: Glass Height = Opening Minus 1-1/8"
• D2300 Series: Glass Height = Opening Minus 1-3/8"
• D2301 Series: Glass Height = Opening Minus 1-3/8"
• D2303 Series: Glass Height = Opening Minus 1-3/8"
• D2305 Series: Glass Height = Opening Minus 1-3/8"
• D2306 Series: Glass Height = Opening Minus 1-5/8"
• D2307 Series: Glass Height = Opening Minus 1-5/8"

Product Warning:
Stock lengths must ship common carrier unless specifically cut for UPS shipment. If you need a very tight fit, measure your own dimensions—shown dimensions are guidelines suitable for most installers.
