CRL Floor-Mount Bottom Door Pivot for 1-1/2" Bottom Rail (Side-Load)
CRL Floor-Mount Bottom Door Pivot for 1-1/2" Bottom Rail (Side-Load)
Regular price
$32.65 CAD
Regular price
Sale price
$32.65 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL8010G
Shipping Weight: 10.24 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 10.24 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Bottom Door Clearance Adjustment
3/16
Bottom Door Rail Depth
1-1/2
Brand
Jackson
Door Weight
150
Handing
Non Handed
Mounting Type
Floor
Package Type
G
Pivot Bottom
Yes
Pivot Type
Center Hung
Recommended Door Type
Aluminum Store Front
Type
Side-Load Arm
Overview
- 3/16" (5 mm) Height Adjustment
- G Type for Use with Side-Load Arms

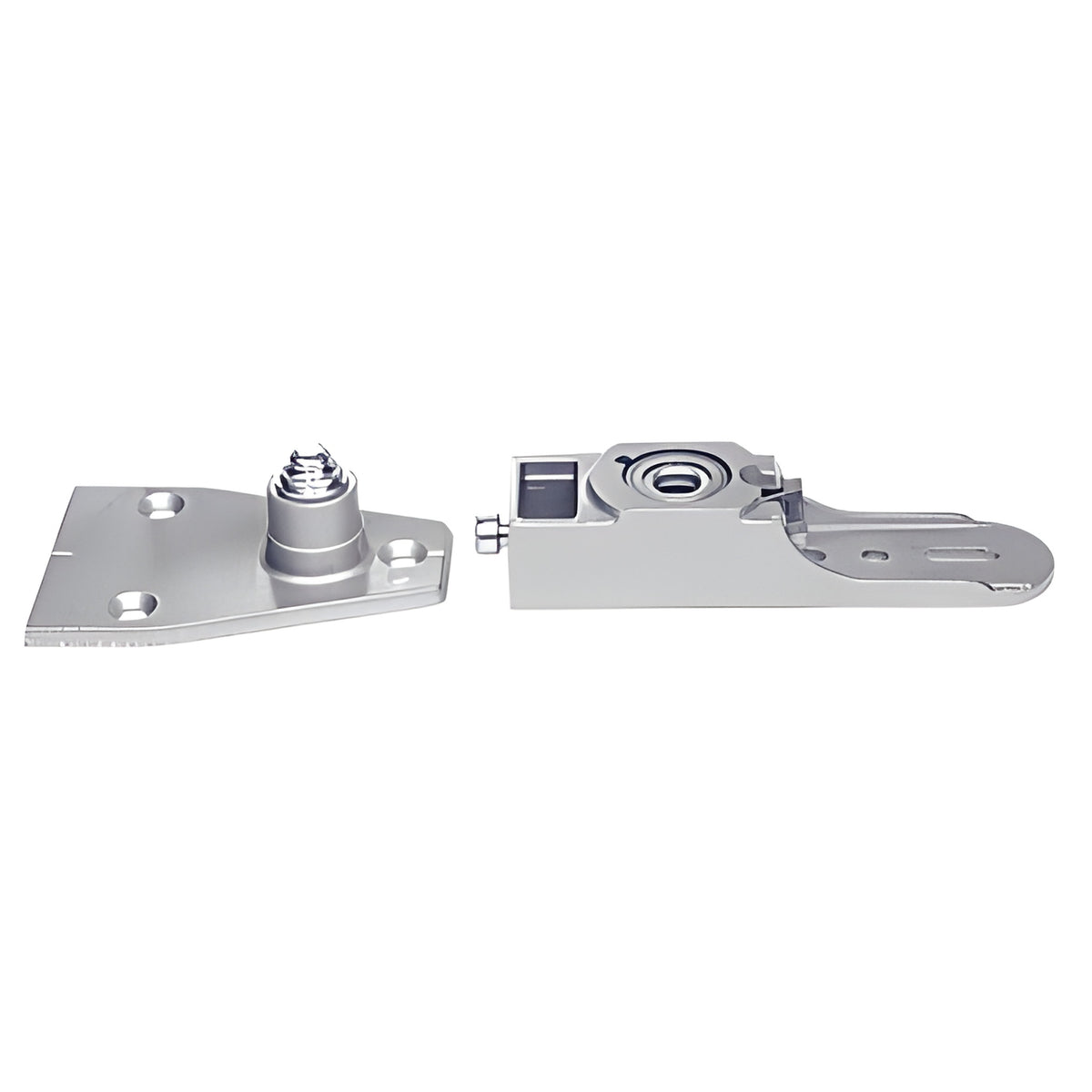

This CRL Adjustable Bottom Pivot Set (SKU: CRL8010G) is designed for 1-1/2" (38 mm) deep bottom door rail applications and mounts directly to the floor for side-load glass door installations. The pivot allows a 3/16" (5 mm) in-place height adjustment with the door installed and requires an adjustment hole in the end of the door. Rated maximum capacity: 150 lbs. (68 kg); note the product warning below specifying suitability for doors up to 125 lbs. (56 kg). Ideal for frameless and framed glass swing doors requiring a floor-mounted, side-load bottom pivot.
Product Warning:
For Doors Up to 125 lbs. (56 kg).
Shop CRL8010G adjustable bottom pivot sets for reliable floor-mounted, side-load glass door hardware—order now or contact CRL Customer Service for technical details.
