CRL Floor-Mounted Door Closer Spindle 1-1/8" Collar Tapered
CRL Floor-Mounted Door Closer Spindle 1-1/8" Collar Tapered
Regular price
$19.87 CAD
Regular price
Sale price
$19.87 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL9040S28
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 6.4 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Collar Height
1-1/4
Handing
Non Handed
Material
Aluminum
Standard Door Cleareance
1 5/16
Style
Flat Tapered
Overview
- For use with all CRL models, Jackson® 900, and Dorma® BTS80 series floor-mounted door closers
- Six available collar heights: 1/8" to 1-5/16" (3.2 to 33 mm)
- Flat tapered type; also available in "MAB" style for international use
CRL Flat Tapered and "MAB" type spindles (SKU: CRL9040S28) are replacement door closer spindles designed to accommodate a range of threshold and finished floor heights. These floor closer spindles work with all CRL models and are compatible with Jackson® 900 and Dorma® BTS80 floor-mounted door closers. The flat tapered spindle accepts center-hung and offset bottom arms and fits CRL patch fitting inserts, making it a versatile choice for door closer repair and retrofit projects. The "MAB" style spindle is commonly specified in Europe and South America.
Product Warning:

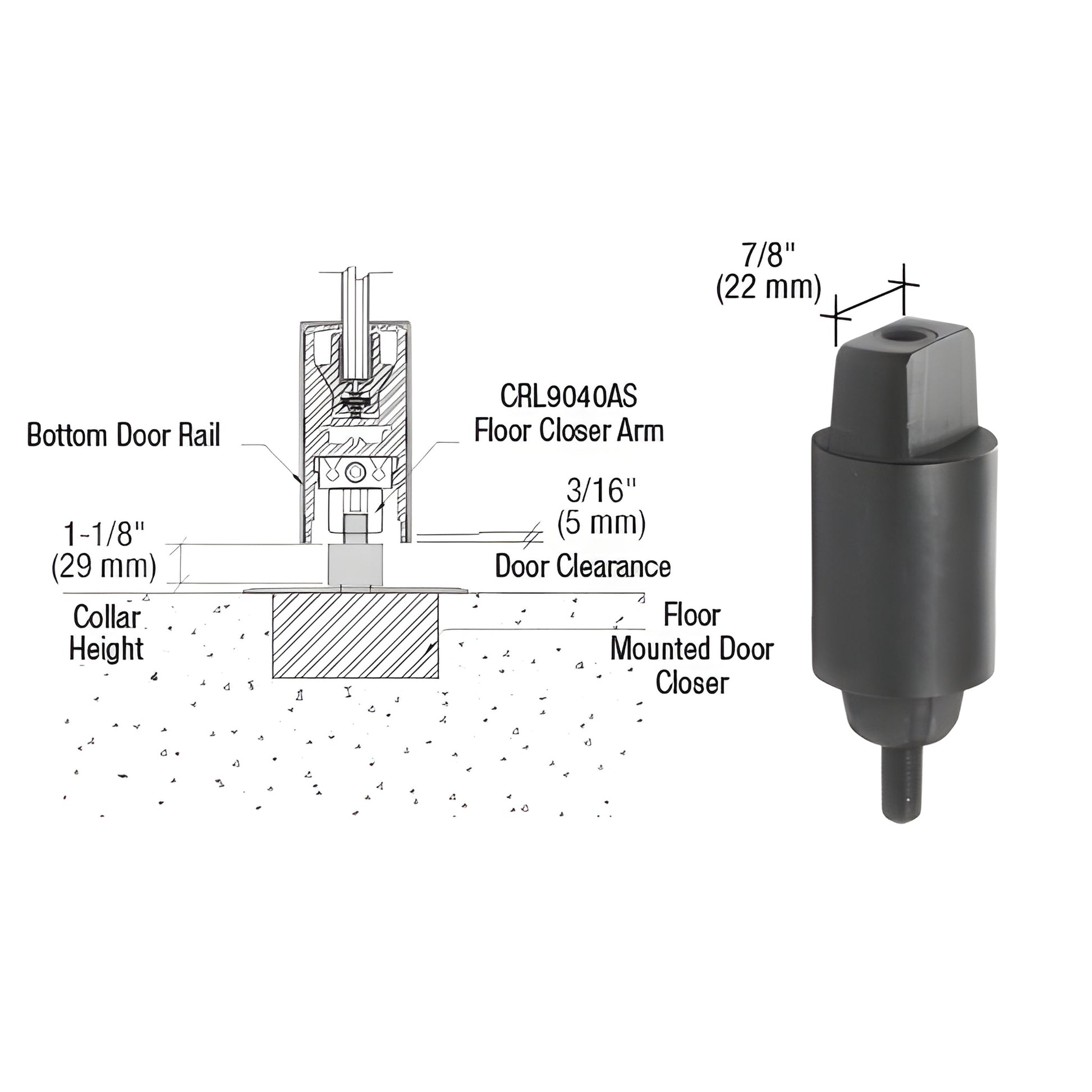

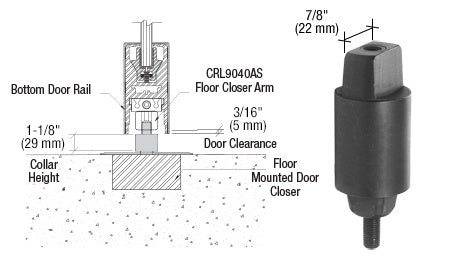

To determine actual door clearance from finished floor, add 3/16" (5 mm) to the collar height. Example: 1/8" (3 mm) collar height + 3/16" (5 mm) = 5/16" (8 mm) door clearance from finished floor.
Find the correct replacement floor closer spindle for your threshold height and order CRL9040S28 today.
