Product Details
- For 1/4" to 3/8" (6 to 10 mm) Glass
- Shelving Cable System That Can Be Quickly and Easily Installed and Reconfigured
- High Quality Components
- Stainless Steel Cable and Nickel Plated Components
CRL's Cable System and Components for 1/4" to 3/8" (6 to 10 mm) glass offers all the options you will need for ceiling-to-floor suspension, shelving installations, hanging vertical panels, signage or retail displays. This versatile system is easily installed and adjusted. The elegantly designed components are fabricated from brass then are nickel plated, which provides compatibility with other fixtures or amenities in the office, home or retail environment. These CRL Display Systems represent cable technology in its finest form.

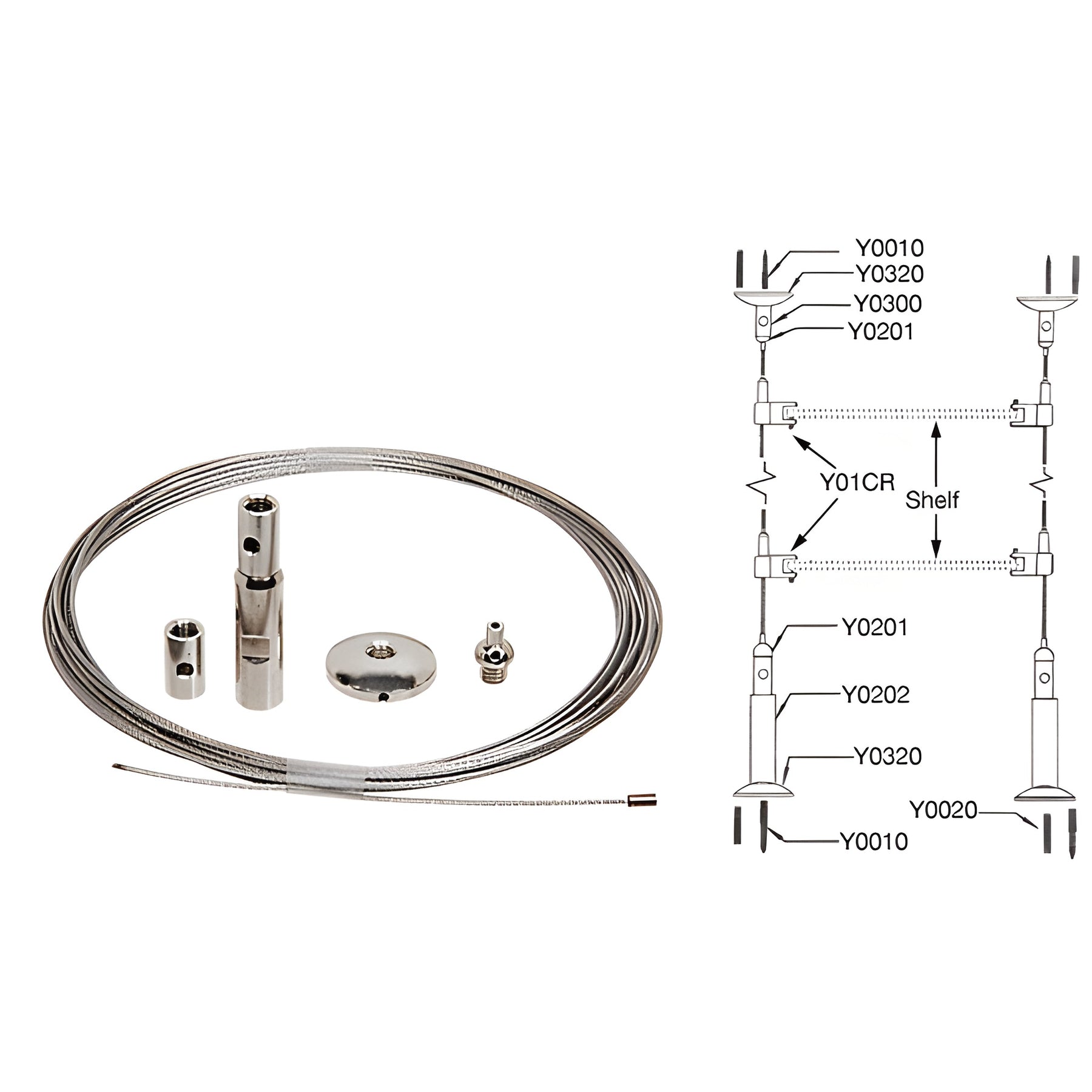

Contains all of the basic Cable components between the ceiling and floor or base: One 20' (6.1 m) length of Cable, one Tensioner, one Adapter, two Cable Holders, and two Cover Disks. Hanger Bolts or Threaded Studs for ceiling or floor attachment must be ordered separately. Shelf Connectors must also be ordered separately.
Weight Capacity: Four cables, securely and properly anchored to ceiling beams or studs have a maximum weight capacity of 300 lbs. (136 kg). Each Single Connector is rated at 20 lbs. (9 kg), Double Connectors are rated at 10 lbs. (4.5 kg). Due to the diversified variety of applications, weight limitations for the Cable Systems are dependent upon ceiling, wall or substrate anchoring.
