- For 3/8" to 1/2" (10 to 12 mm) Tempered Glass
- High Quality in Appearance and Material
- Designed for Heavy Glass Shelves
- Horizontal and Vertical Applications
CRL's Cable Kit

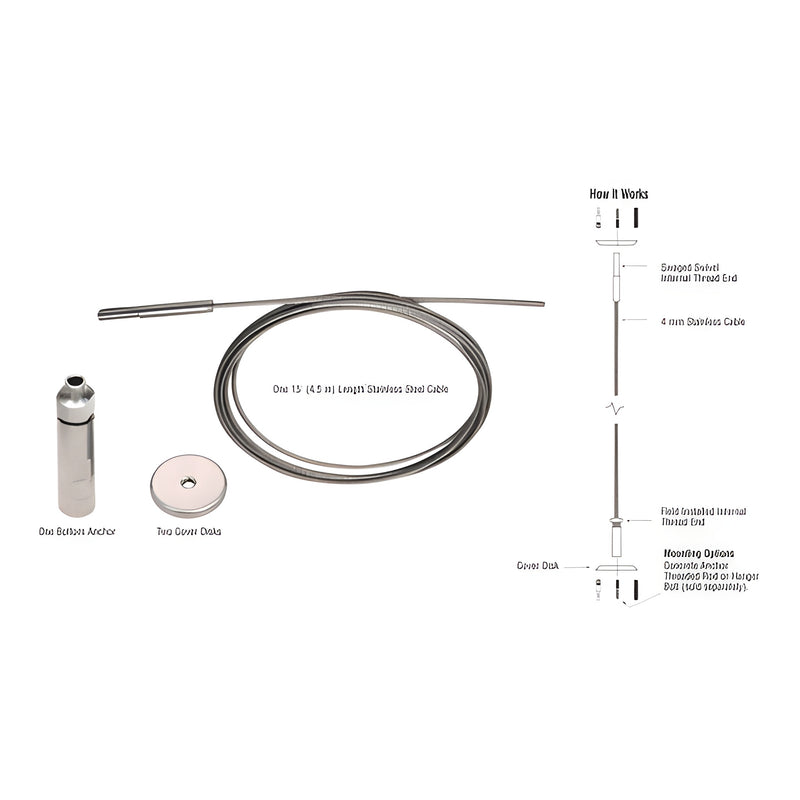

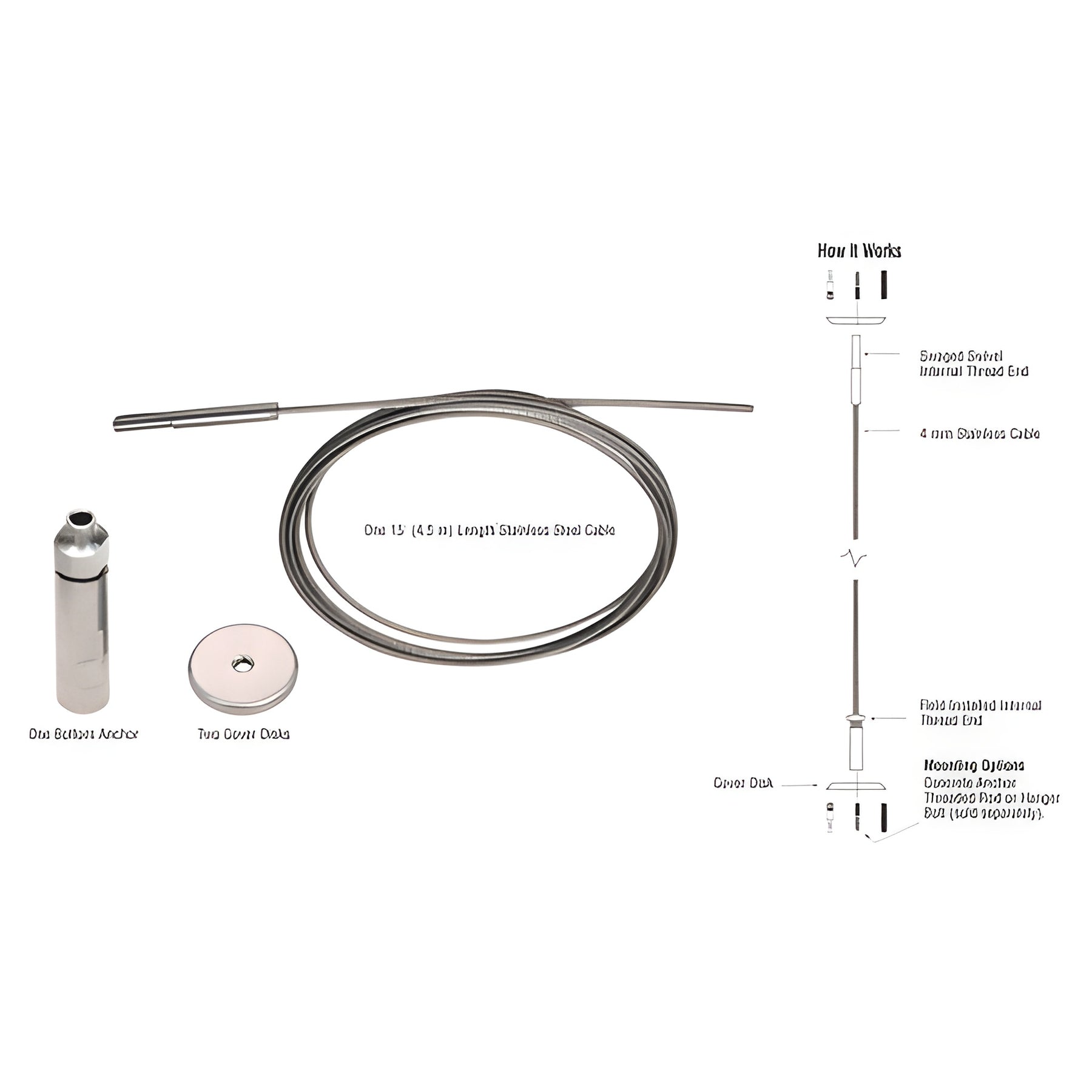

for 3/8" to 1/2" (10 to 12 mm) glass is fabricated from high quality 316 stainless steel. Used either indoors or outdoors, this system offers all the necessary components for any project design. The Kit contains: One 15' (4.5 m) length of Stainless Steel Cable with Top Swivel Fitting, one Bottom Anchor and two Cover Disks. Shelf Connectors and attachment hardware must be purchased separately.
CRL's Cable System for 1/2" (12 mm) glass is also the ideal system for use with large size 3/8" (10 mm) shelving installations that are too heavy for CRL's Cable Display System for 3/8" Glass. The 4 mm Stainless Steel Cable and Stainless Steel Components are innovative both in design and technology. This system is extremely versatile and can easily be installed for shelving or for hanging vertical panels. Select from a variety of connectors and components, each one unique and functional. For additional information, contact our CRL Technical Sales Department.
Weight Capacity
Each Cable is rated at 1600 lbs. (725.7 kg), and each Connector has a maximum weight capacity of 35 lbs. (15.9 kg). Due to the diversity of applications, weight limitations for the Cable Systems are dependent upon ceiling, wall or substrate anchoring.
Product Warning
Weight Capacity: Each Cable is rated at 1600 lbs. (725.7 kg), and each Connector has a maximum weight capacity of 35 lbs. (15.9 kg). Due to the diversified variety of applications, weight limitations for the Cable Systems are dependent upon ceiling, wall or substrate anchoring.
