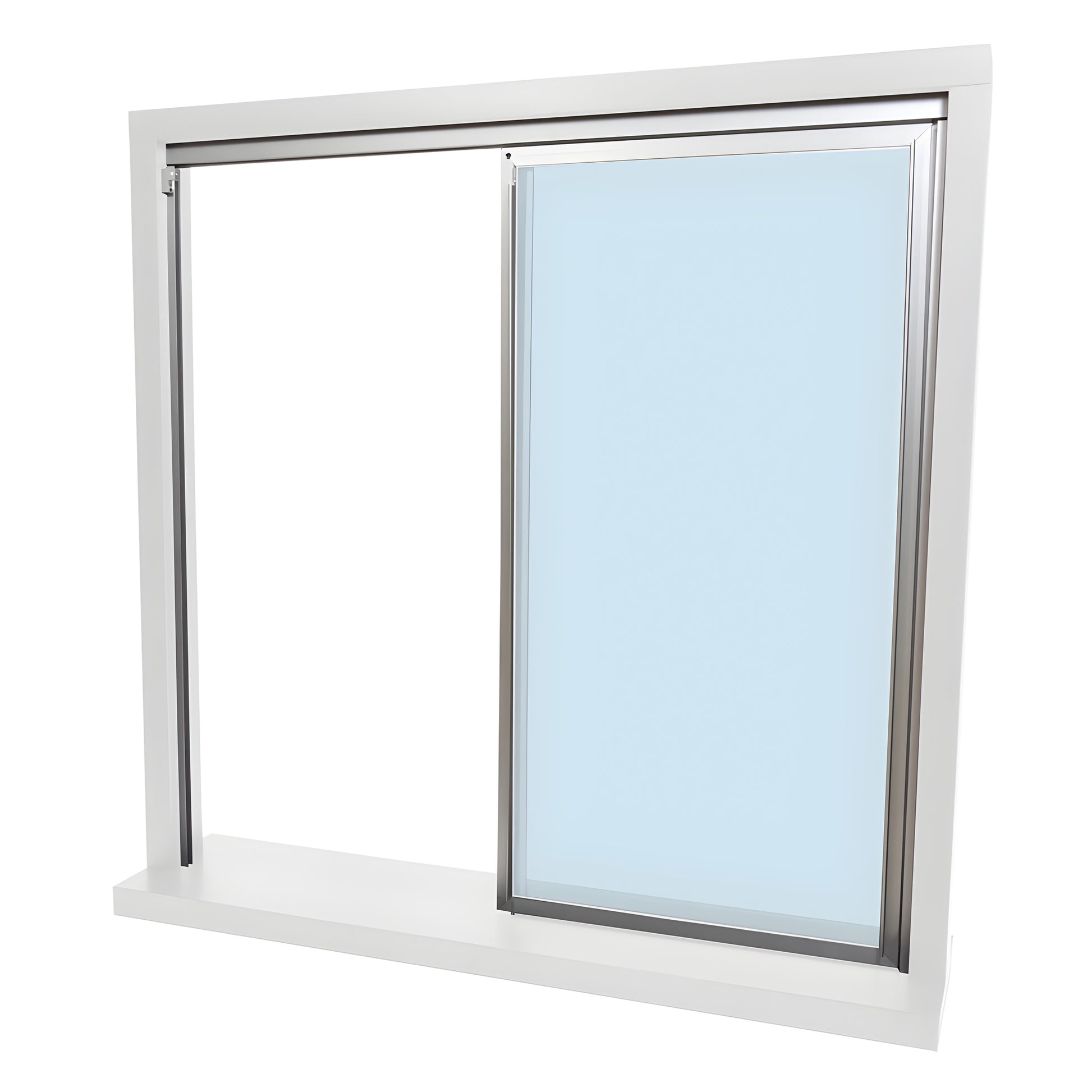

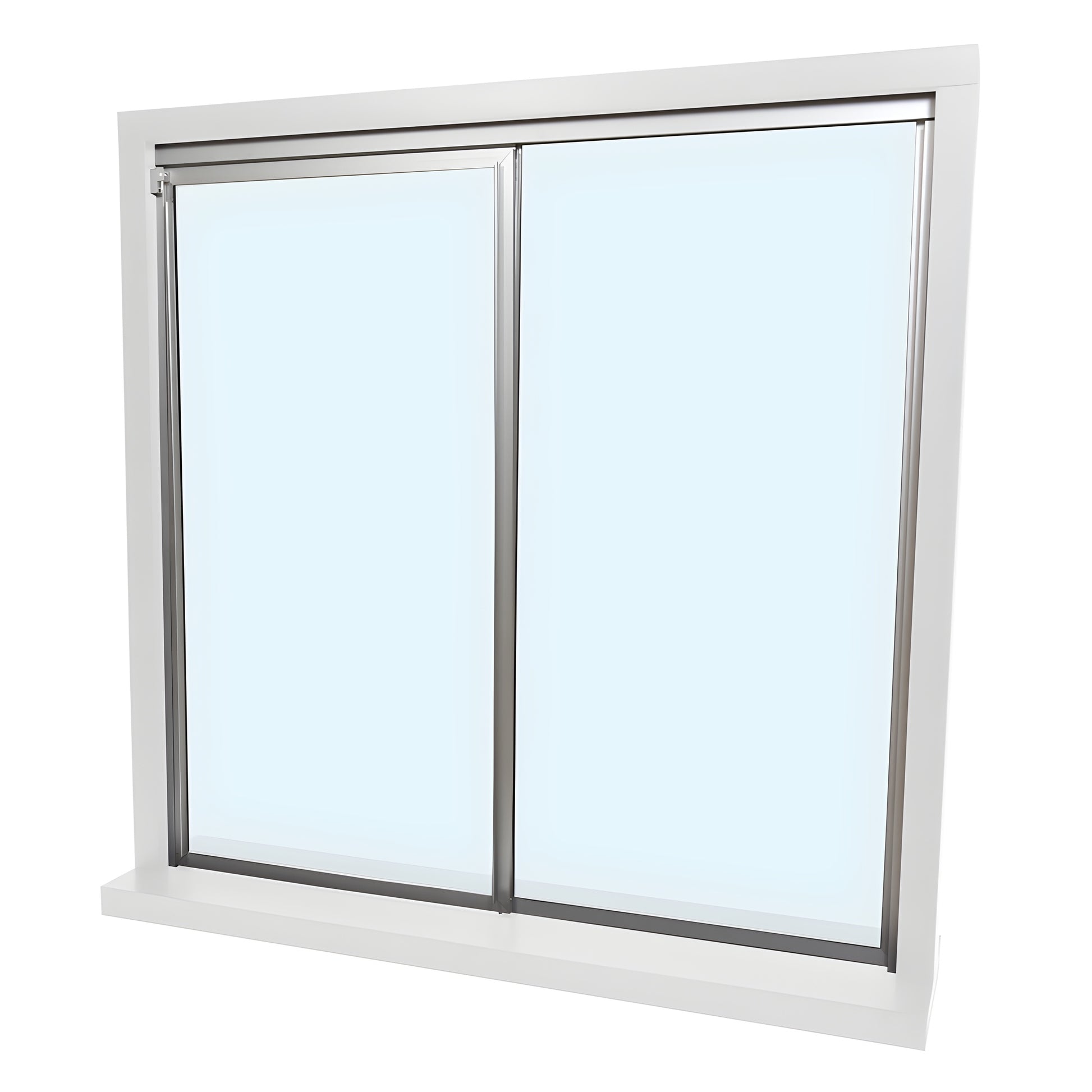

CRL Florence Satin Anodized Factory Glazed "XO" Model with 1/4" Tempered Glass Pass-Thru Assembly 36" Width 48" Height

Finish / Colour (2)

Quote volume pricing

Save up to 10% on your quote

Applied to final quote

Overview
SKUD1038AX03648
Sold as1 Each
Shipping LimitationsShipping Quote Required
ConfigurationXO
Finish/Color:Satin Anodized
Glazing Type1/4" Clear Tempered Glass
Height48 in. (1219.2 mm)
ModelFlorence
Panel DesignationX = Sliding, O = Fixed
Panel Quantity2
Width36 in. (914.4 mm)

Description

Product Details

  • Assembled and ready to install
  • Satin Anodized or Dark Bronze Finish
  • Two Panels: One Fixed, One Sliding

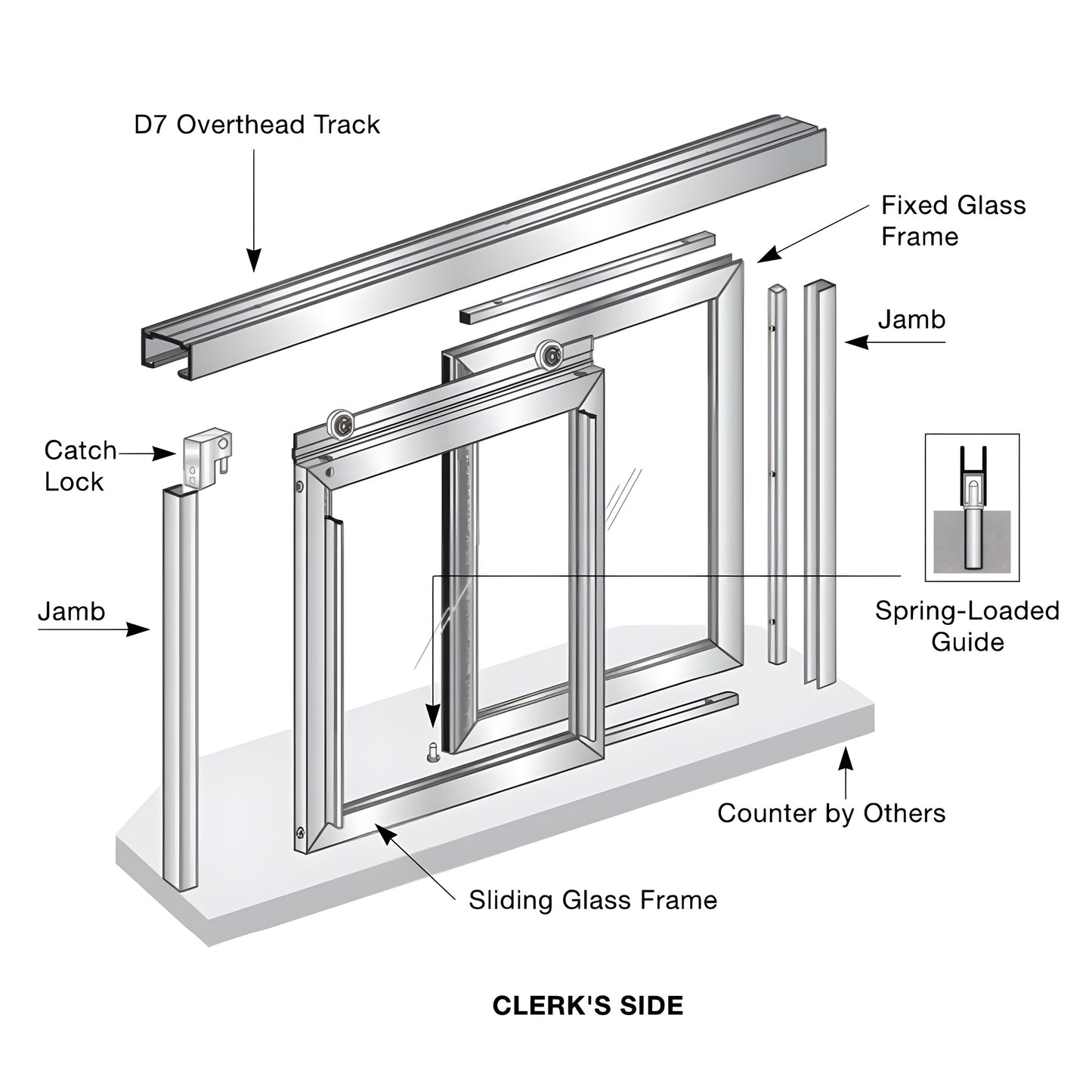

  • View: Clerk Side View
  • Counter not included

This kit includes 1/4" clear tempered glass. The net frame size is 36"w x 48"h designed for an opening approximately 36-1/8"w x 48-1/8"h. The kit ships with glass lites assembled assembly of the overall frame required during installation. On OX or XO Models X= sliding panel, clerk side view.

Note: Panels Come Fully Glazed. Some Assembly Required.

Specifications

Technical Resources

Installation Instructions

PDF
Florence Model Pass-Thru No Screen Models D1038 D1039 Installation InstructionsOpen PDF ↗

Specifications

DOC
Aluminum Interior Sliding Service Window 3-Part SpecOpen DOC ↗

CAD Drawings - pdf

PDF
Florence D1038 CAD Drawings.pdfOpen PDF ↗

Warranty

PDF
Transaction Hardware Products Limited WarrantyOpen PDF ↗
