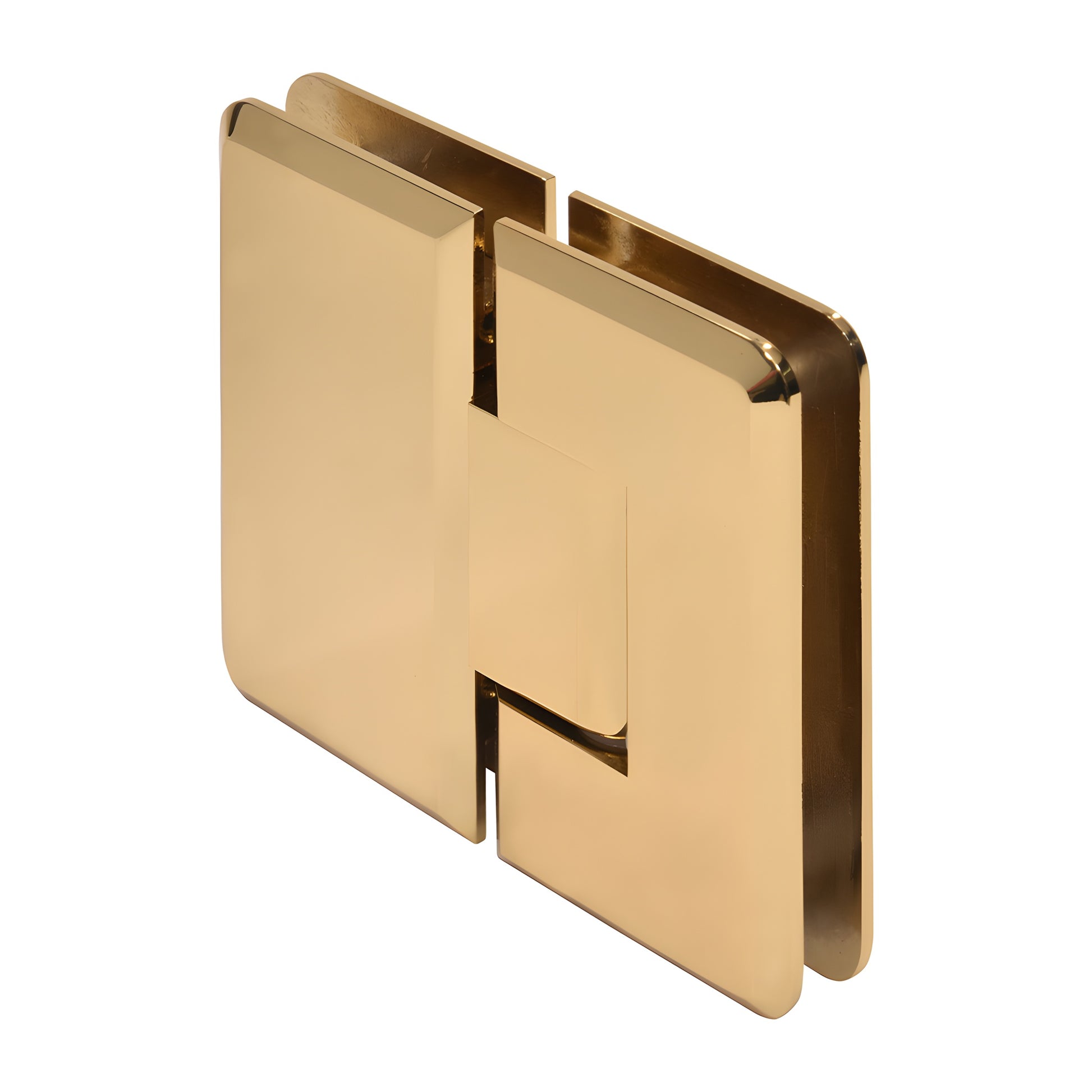

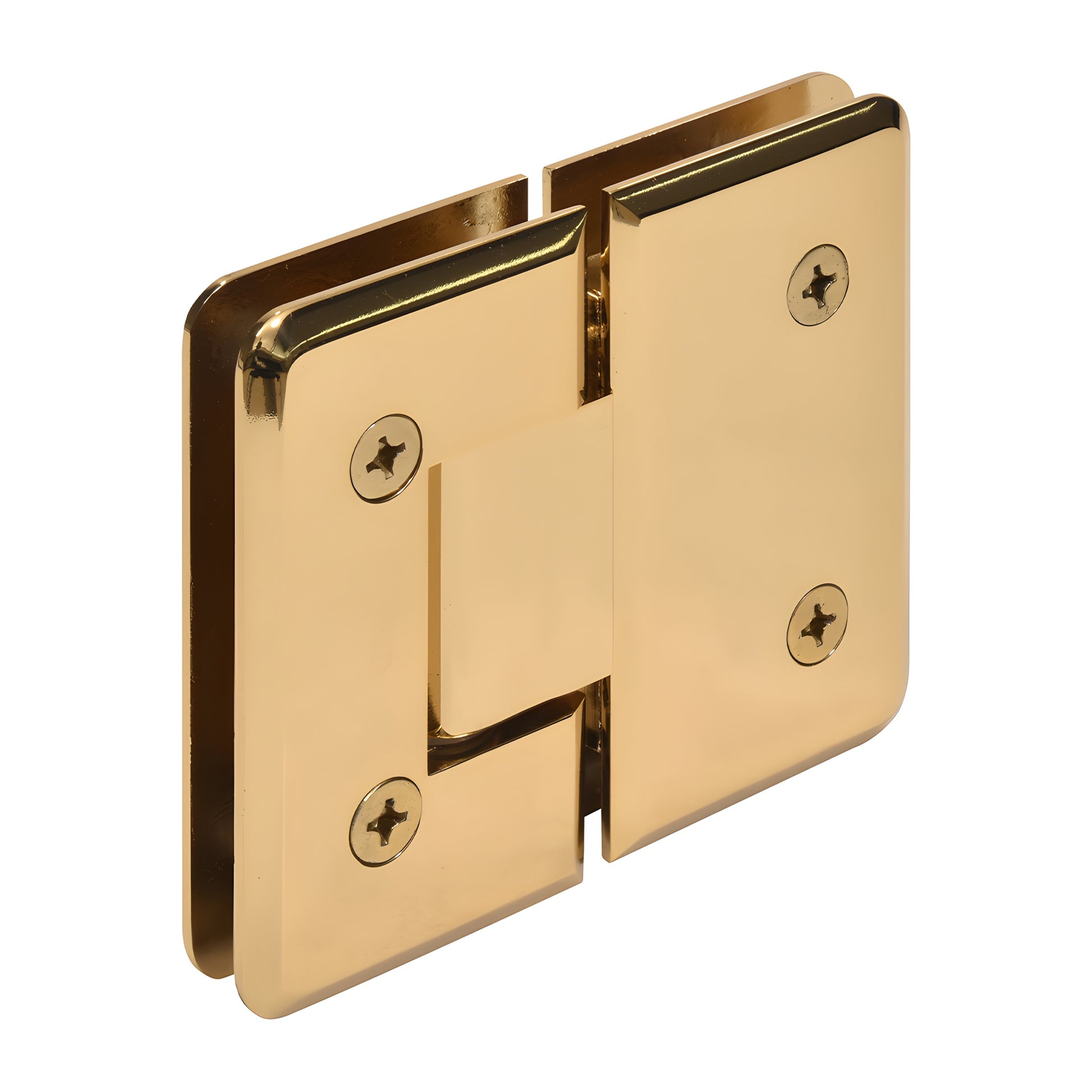

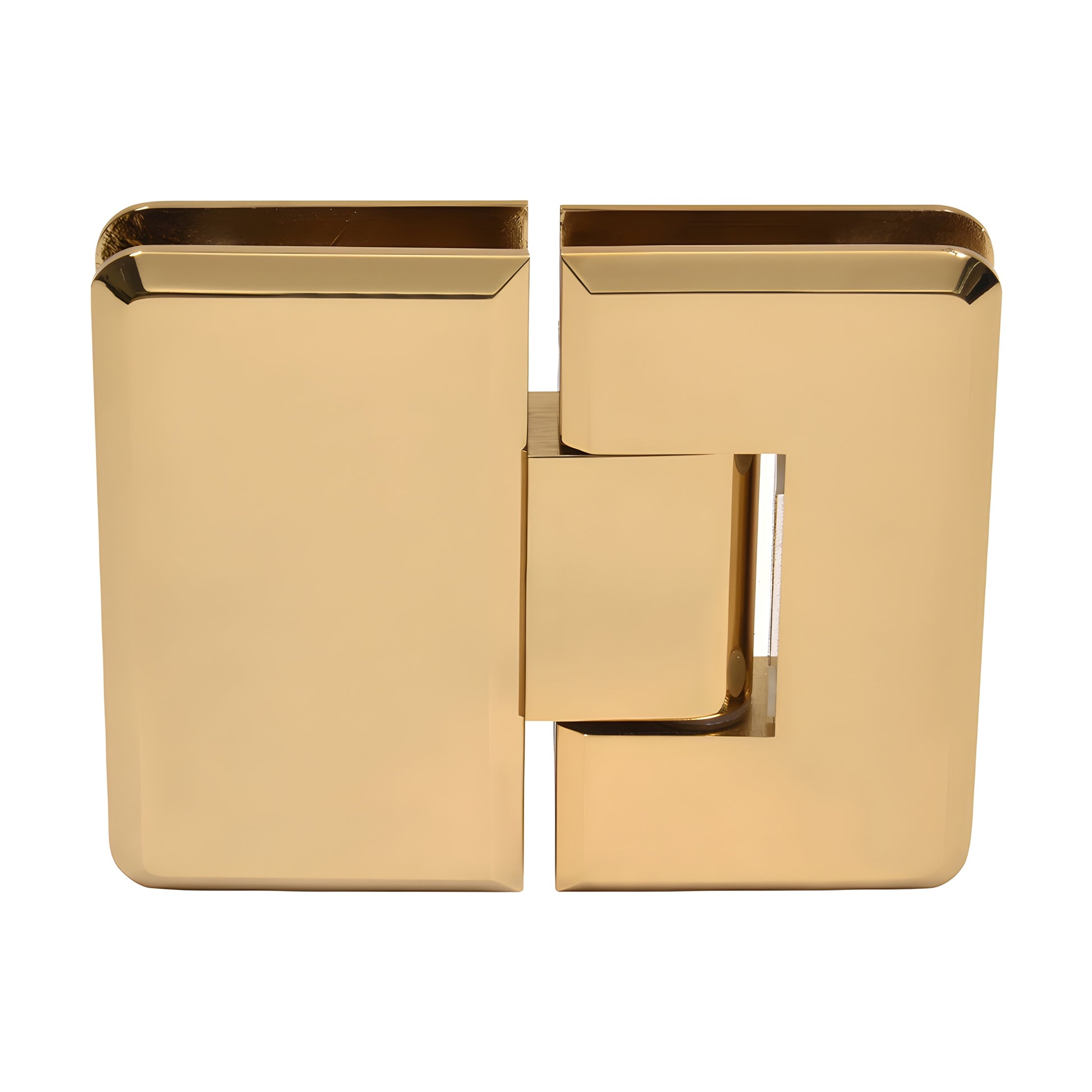

CRL Cologne 180° French Gold Glass-to-Glass Shower Hinge

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes (custom finishes available on request)
• 180º glass-to-glass hinge for frameless shower doors
• Designed for monolithic tempered glass

CRL Cologne Hinges (SKU: C0L180FG) combine the strength needed for wider, heavier frameless shower doors with a refined aesthetic. Similar to Vienna Hinges but with radius corners and beveled edges, Cologne Hinges offer a sleek, modern look for glass shower enclosures. Ideal long-tail keywords: solid brass shower door hinge, 180-degree glass-to-glass shower hinge, hinge for tempered shower glass.

Two internal steel pins give installers options: leave both pins in for compatibility with CRL "mouse-ears" cut-outs (enhanced safety around cut-outs), or remove them for increased adjustability to fit CRL rectangular, square-corner cut-outs—and in some cases competitive rectangular cut-outs.

STANDARD REVERSIBLE PIVOT PIN: Each hinge includes a reversible pivot pin marked 90º on one side and 85º on the other. Standard models ship with the 90º side activated; Pre-Set models ship with 85º for a 5º tighter closure into the shower interior. Rotate (do not flip) the pin to change angle.

CUSTOM PIVOT PIN: Custom pivot pins are available up to 45º for off-angle installations when the standard 5º adjustment is insufficient.

Load Capacity:
Using two hinges with 3/8"–1/2" glass (10–12 mm): supports up to 110 lbs (50 kg), maximum door width 36" (914 mm).
Using three hinges with 3/8"–1/2" glass (10–12 mm): supports up to 140 lbs (63 kg), maximum door width 36" (914 mm).

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) Tempered Safety Glass
Construction: Solid Brass
Hinge Swings: 90º In and 90º Out (180º total glass-to-glass)
Closing Type:
