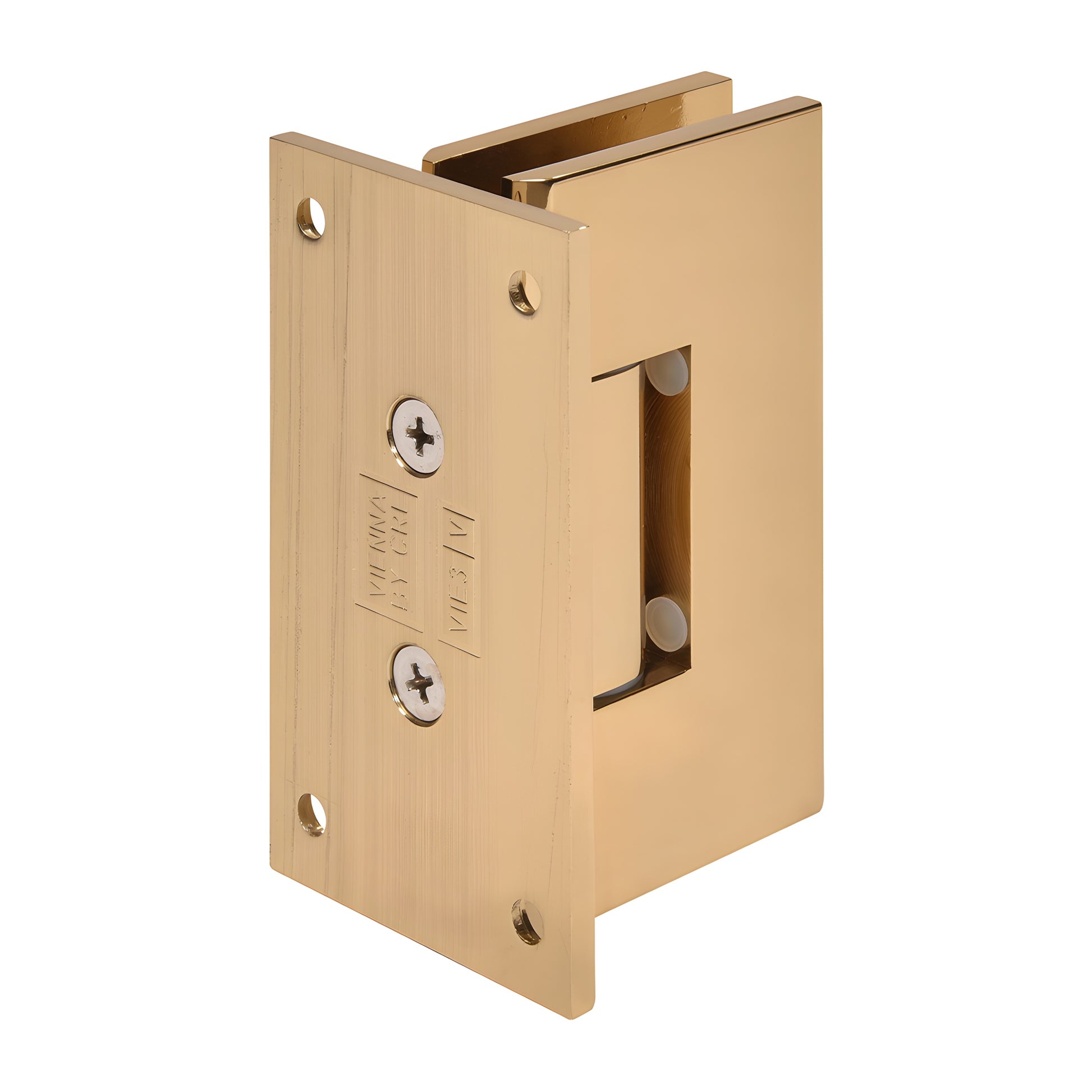

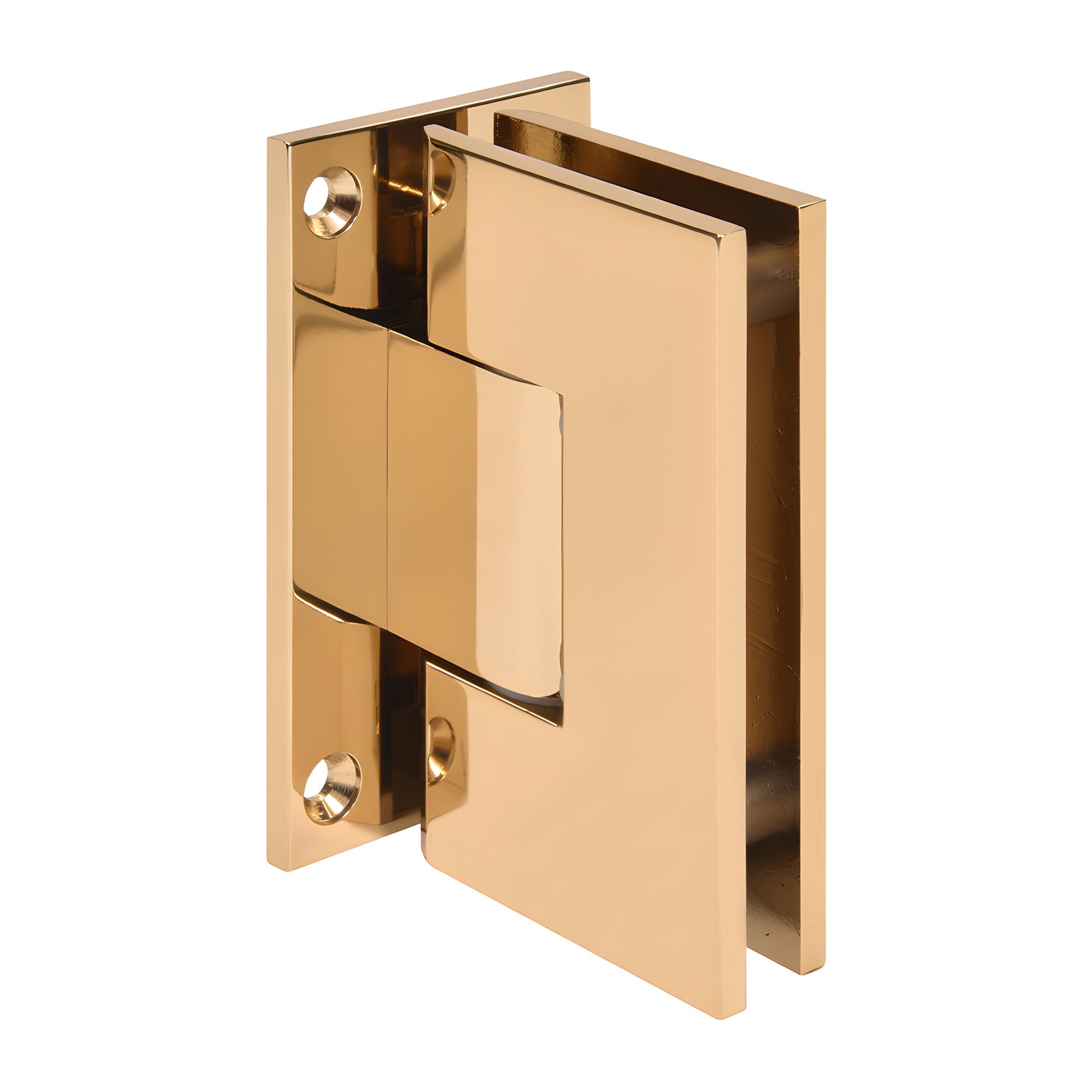

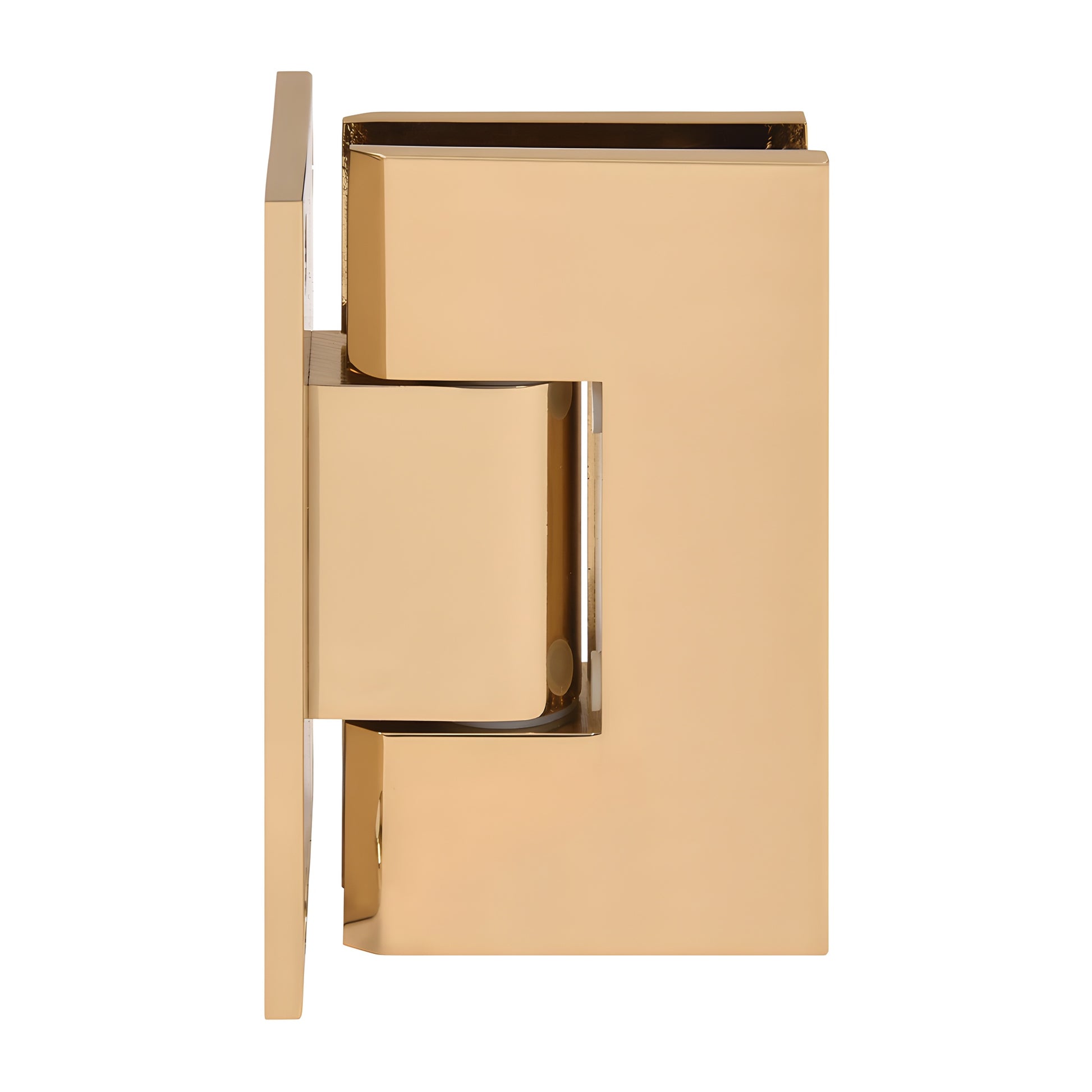

CRL Vienna 337 French Gold Adjustable Wall-Mount Full Backplate Hinge

• Adjustable to any angle up to 90 degrees without removing the door
• Available in several beautiful finishes
• 3 Year Warranty
• Adjustable wall-mount full back plate
• For monolithic tempered glass (3/8"–1/2")

The CRL Adjustable Vienna Series Vienna Hinge is an adjustable shower door hinge designed for frameless glass shower doors. Adjustment to the desired closed angle (up to 90°) is performed after the door is hung — simply loosen the Allen set screws, rotate the door to the desired position, then tighten the screws to self-center the door. The door can swing 90° inward and 90° outward from the factory set position. For outward-swing installations using a clear door jamb, the hinge can be set to close 5° inside the shower for a snug jamb seal.

STANDARD REVERSIBLE PIVOT PIN: Each Vienna Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; pre-set models ship with the 85° side active for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to switch sides.

CUSTOM PIVOT PIN: Custom pivot pins are available for off-angle wall conditions. If the standard 5° pivot does not achieve the closing position required, specify a custom angle up to 45°.

Load Capacity: Using two hinges with 3/8"–1/2" (10–12 mm) tempered safety glass, the hinge will support up to 110 lbs (50 kg) with a maximum door width of 36" (914 mm). Using three hinges with the same glass thickness, the hinge will support up to 140 lbs (63 kg) with a maximum door width of 36" (914 mm).

SPECIFICATIONS:
SKU: V1E337FG
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Adjustable to any angle up to 90° without removing the door
Construction: Solid brass
Hinge Swings: 90° in and 90° out (factory set position)
Closing Type: Self-centering when within 15° of the closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions
Maximum Clamping Screw Torque: 60 lbf·in (677.9 cN·m)

NOTE: Door glass width may require alteration from standard clearance deductions when adjusting angles. Call for details. Custom finishes available on request — contact CRL Technical Sales, Shower Door Department.
