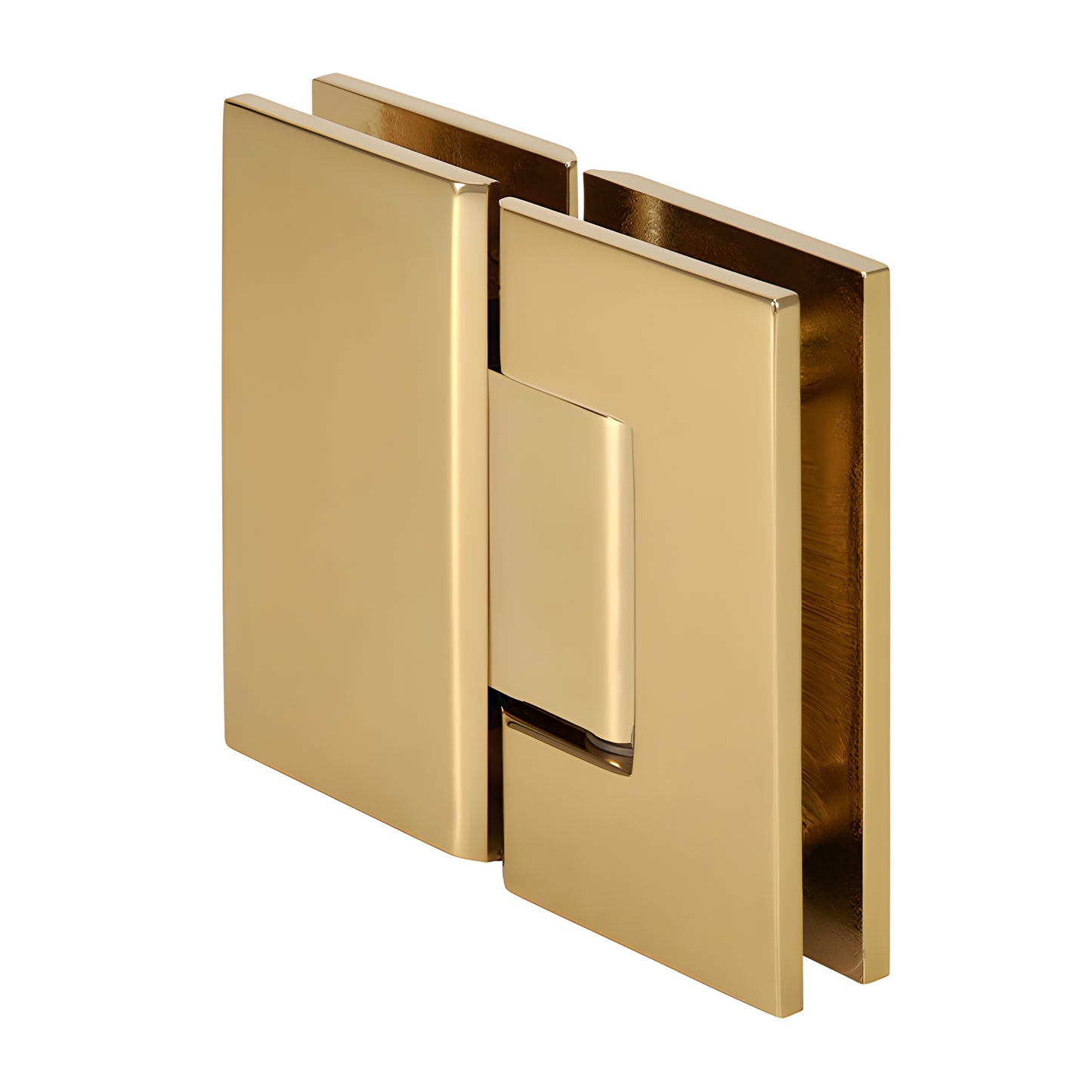

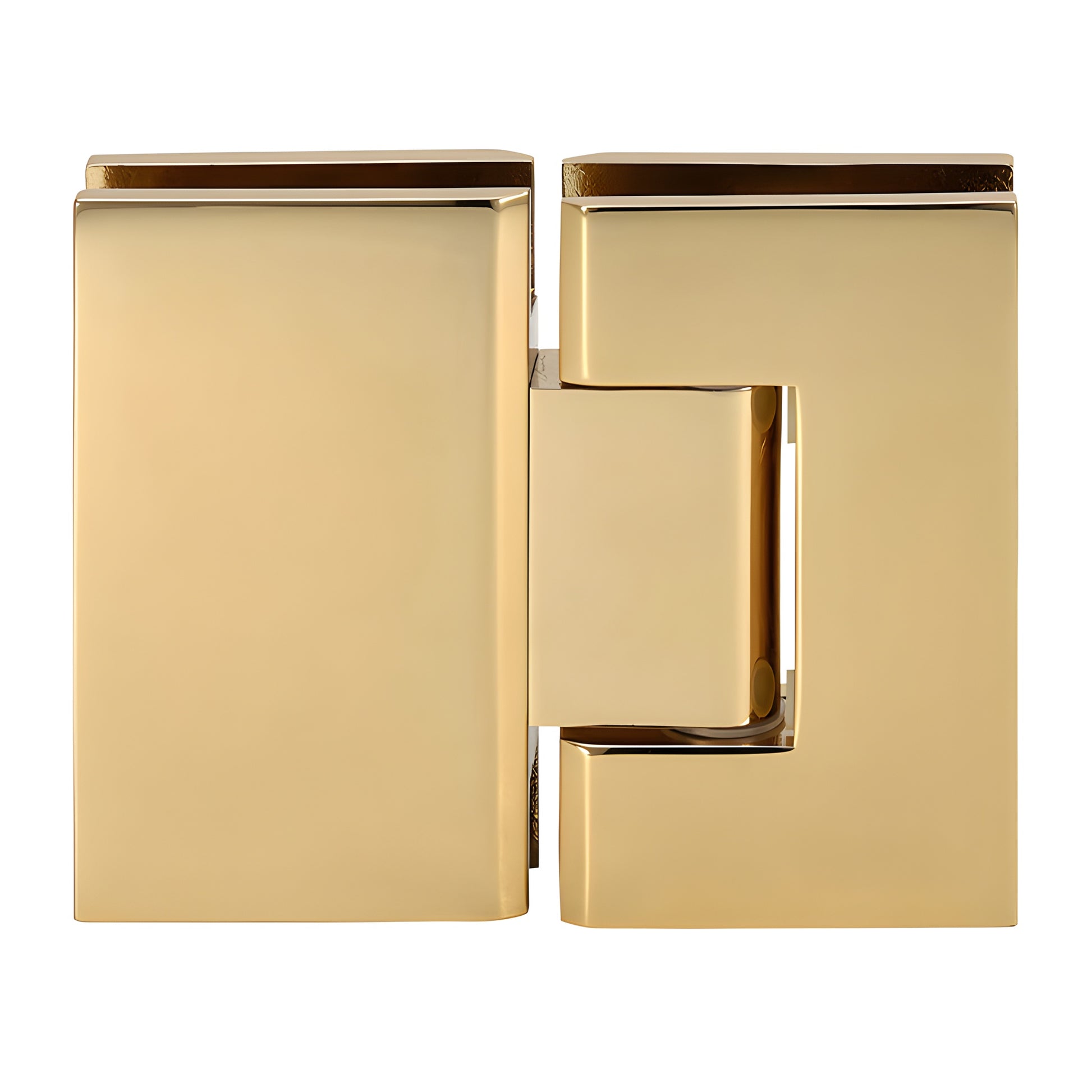

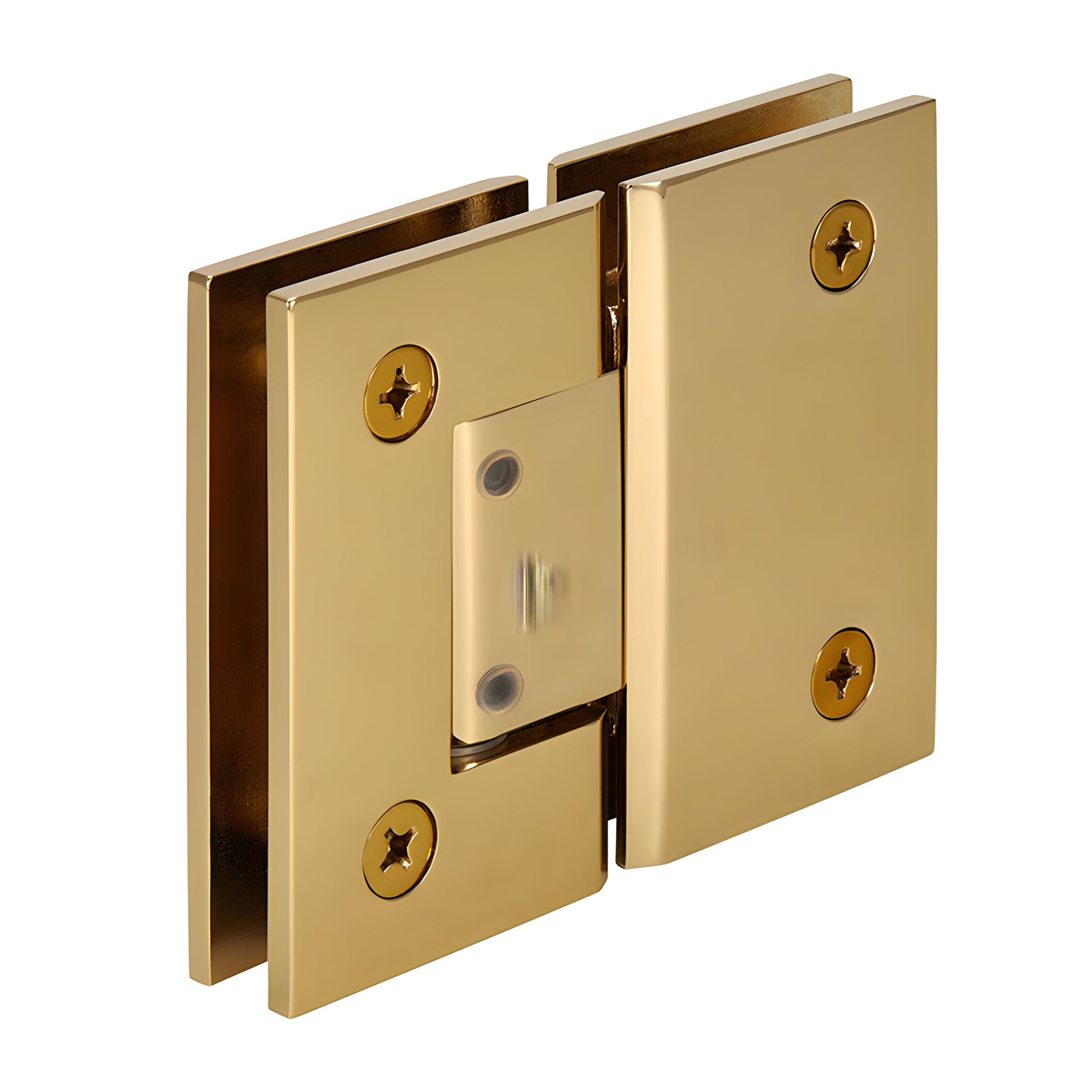

CRL Geneva 380 Polished Brass 180° Adjustable Glass-to-Glass Hinge

• Adjustable to any angle up to 90 degrees without removing door
• Available in several beautiful finishes
• Three year warranty
• Adjustable 180° glass-to-glass option
• For use with monolithic tempered glass

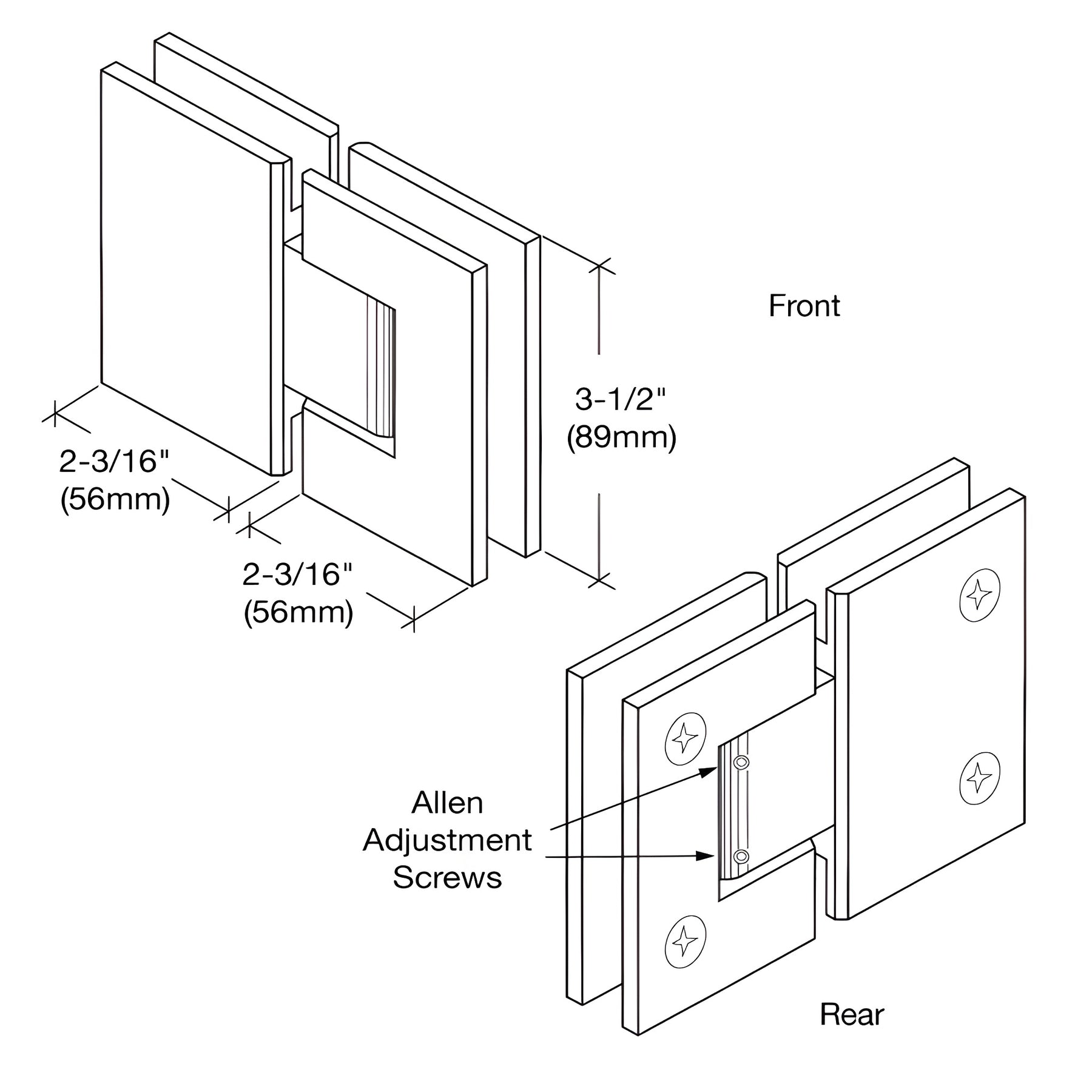

The CRL Adjustable Geneva Series (SKU: GEN380BR) upgrades the popular Geneva hinge into a precision adjustable glass shower door hinge. After installation you can fine-tune the closing angle—up to 90°—by loosening the Allen set screws, rotating the door to the desired position, then retightening. The self-centering design engages within 15° of closed, and the hinge allows 90° swing inward and 90° swing outward at the factory set position. For outward-swinging doors using a clear jamb, the hinge can be adjusted to close 5° inside the shower for a snug jamb seal.

Load Capacity & Door Size
Two hinges: For 5/16" to 1/2" glass (8–12 mm) — supports up to 80 lbs (36 kg); maximum door width 28" (711 mm).

Three hinges: For 5/16" to 1/2" glass (8–12 mm) — supports up to 120 lbs (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Features: Adjustable to any angle up to 90° without removing the door; ideal as an adjustable glass shower door hinge
Construction: Solid brass — durable brass shower door hinge construction
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack must be purchased separately for use with 5/16" (8 mm) tempered glass.

NOTE: Door glass width may require non-standard clearance deductions when adjusting angles. Call for details.

Custom finishes available on request. Contact the CRL Technical Sales Shower Door Department for finish options and lead times.

Product Warning:

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from the CRL Shower Door Technical Sales Department. Use only the template included with this hinge—cut-out dimensions for CRL hinges may differ from other brands.
