Product Details
- Improved Version of the GC3000
- Triple Pane Thickness Measurement
- Full Low-e Detection Capabilities
- Enhanced Compatibility Means More Applications

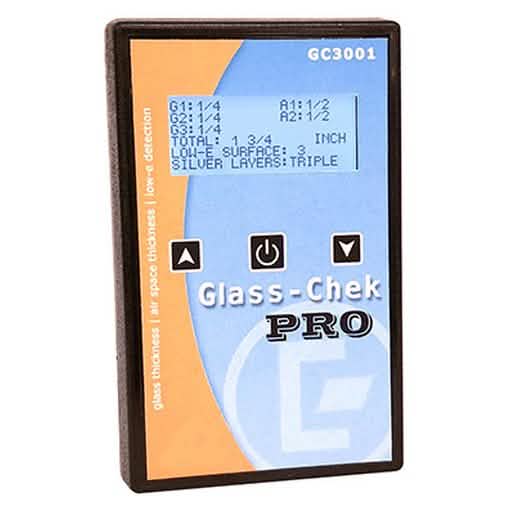

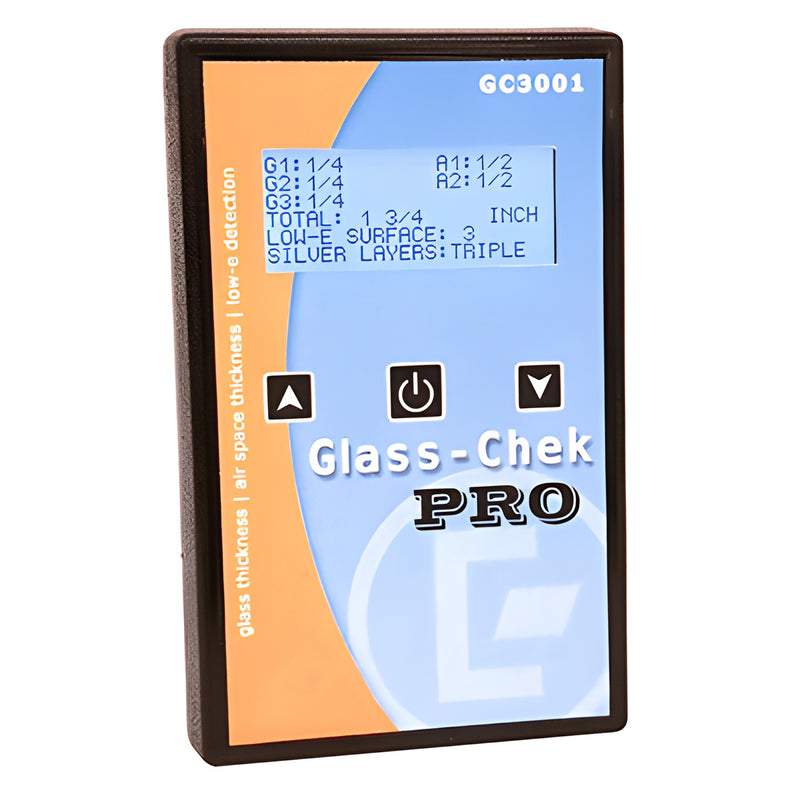

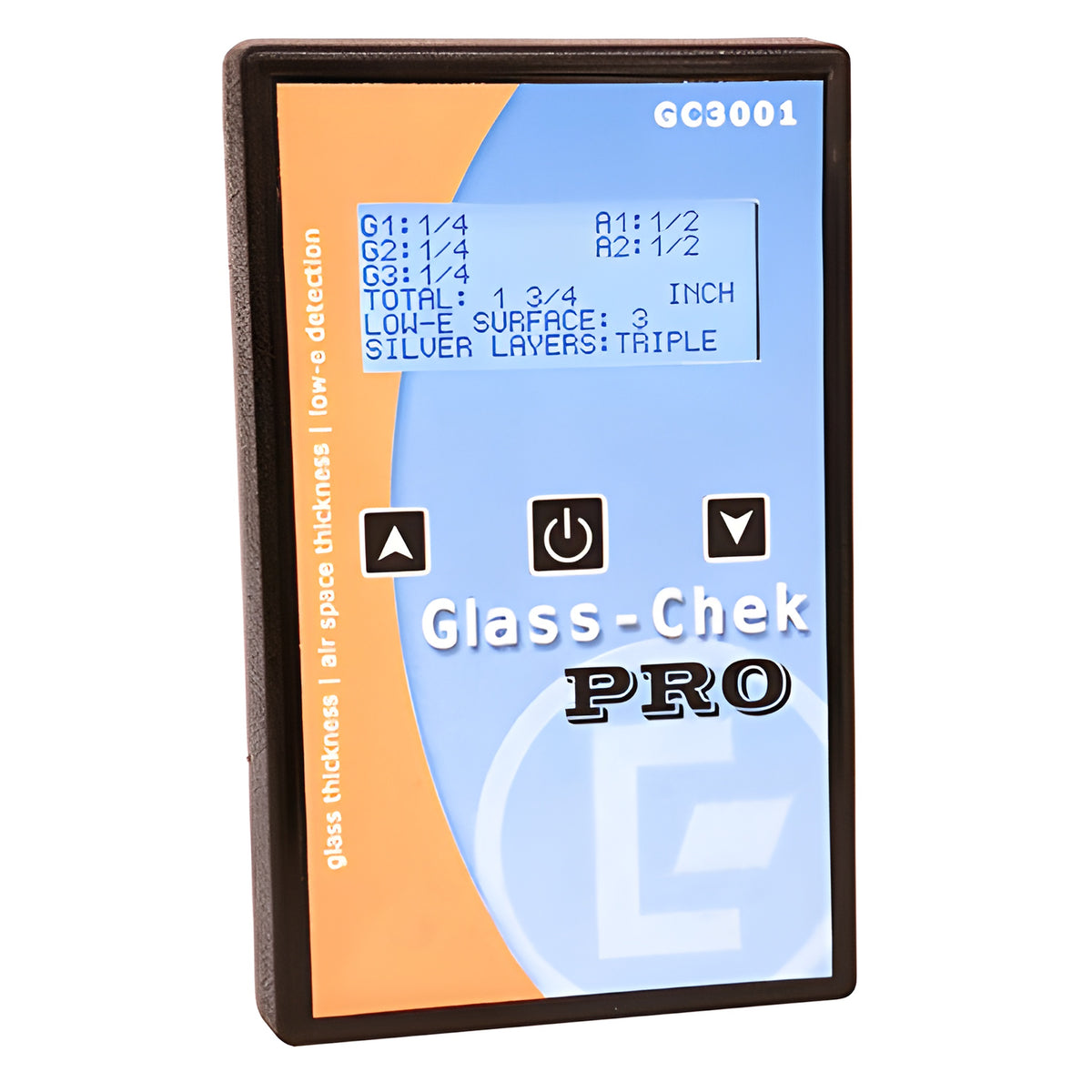

CRL GC3001 Glass-Chek PRO measures glass, air space and overall IG thickness of triple pane windows, all with a single test from one side of the window. It works with single and double pane applications as well.
The GC3000 is a fully equipped Low-e Coating Detector capable of locating a Low-e coating on any surface of a double pane window from a single side. This is a major time saver for testing multi-story buildings where you only have access to the inside of the window.
No other meter in the world can handle the same combination of applications. With an expanded thickness range of 2" (50 mm), the Glass-Check Pro is compatible with residential and commercial glass.
Reduce Measurement Errors
Measure Glass Deflection in Sealed IG Window Assemblies
Uses a 9-Volt Battery – Common and Easily Replaceable
Protective Carrying Case is Included
Simple to Use Suitable for New or Experienced Window Installers, Production Personnel, Building Inspectors or Surveyors
Made in the U.S.A.
Choose from Multiple Display Formats: You can set-up the Glass-Check PRO to display measurement results in the format that works best for you. Choose from actual values or rounded (to ASTM Standards) in fractions of an inch, thousandths of an inch, decimals of an inch or millimeters.
Glass Thickness Capabilities: Illustration Measure the thickness of each pane, each air space, and the total IG thickness in single, double, and triple pane windows
Low-e Coating Detection Illustration: Detect the presence and location of Low-e coatings on any surface of the first two panes. The meter will specify whether the coating is on surface one, two, three/four or "CLEAR" if no coating is present.
Product Warning:
Meter WILL NOT read reflective coated laminates.
