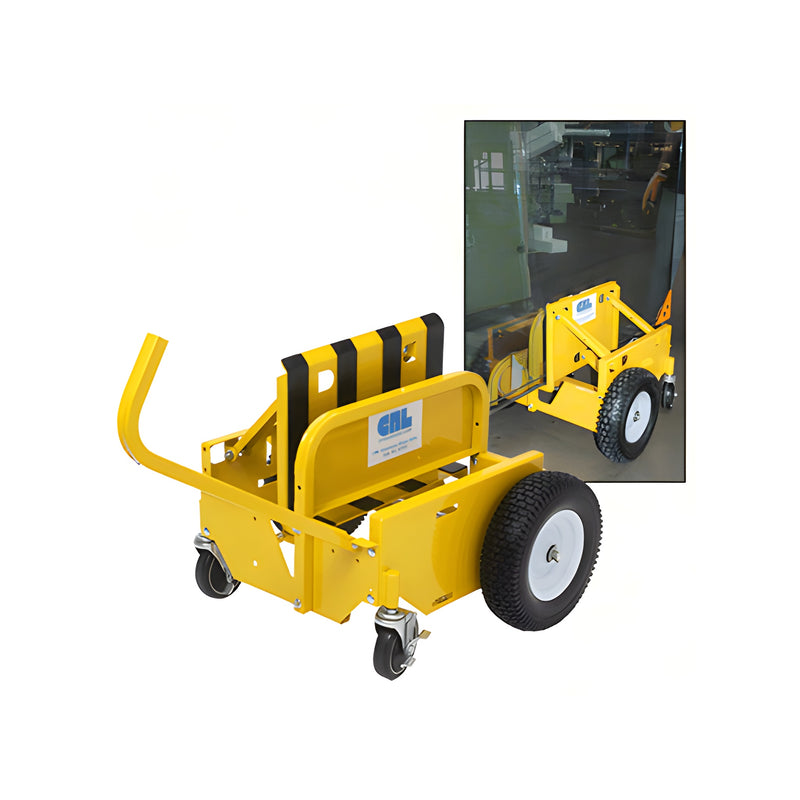

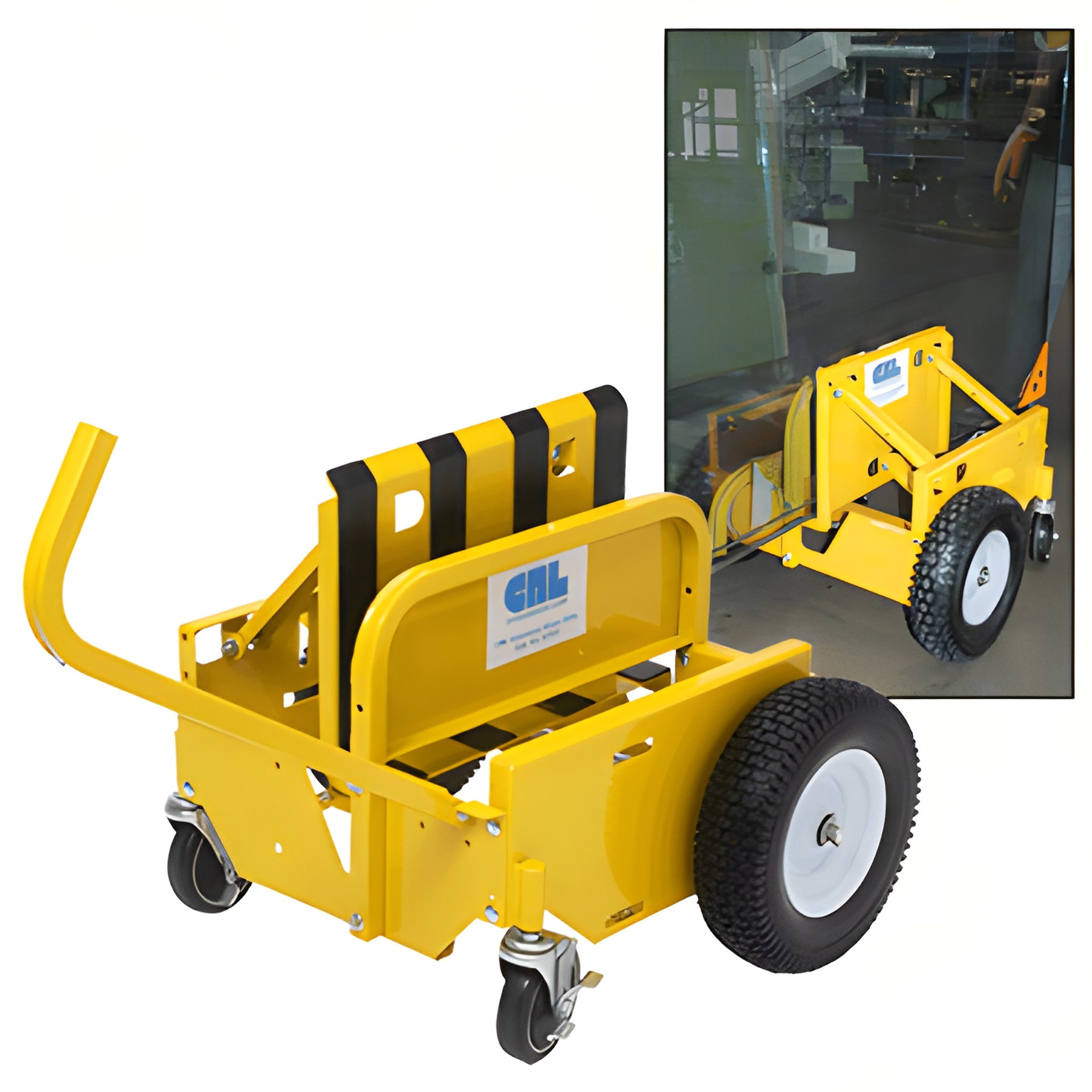

CRL Glasstrax Glass Transport Dolly for Panels & Sheets

• Capacity 600 Lbs. (272 kg)
• Self-clamping action locks loads up to 2" (51 mm) thick
• One person can load and maneuver

The CRL Glasstrax Glass Dolly (SKU: GT02) simplifies moving heavy glass lites on job sites or in the shop. Center the glass on the Glasstrax and the rubber-lined sidewalls automatically pull together—clamping the load more tightly as weight increases. Self-adjusting for sheet material up to 2" (51 mm) thick, this glass dolly is ideal for heavy glass, bullet-resistant glazing, table tops, and other large sheet materials.

The 26" (660 mm) wide footprint provides a tight turning radius for easy maneuvering. Large 12-1/4" (311 mm) maintenance-free tires roll over obstacles like hoses and cords while front locking caster wheels secure the load in place. Lift the glass to release the clamp. Constructed from tubular steel for daily use, all wheels use cotter pins for added safety. A built-in pull handle and compact size make storage and unloaded transport convenient.

SPECIFICATIONS:

• Maximum Capacity: 700 Lbs. (317.5 kg)
• Maximum Thickness: 2" (51 mm)
• Ship Weight: 67 Lbs. (30.4 kg)
• Floor to bottom frame: 3-3/4" (95.3 mm)
• Floor to bottom of glass on GT02: 7-1/4" (184 mm)
• Floor to top when loaded: 19-1/2" (495 mm)
• Floor to top with no load: 21-1/2" (546 mm)

NOTE: Dimensions are approximate; the glass may tilt slightly from one side to the other.

For reliable, single-operator transport of heavy glass,
