Product Details
- Available in Several Finishes
- Available in Five Finishes and Five Lengths: 4", 6", 8", 10", and 12" (102, 152, 203, 254, and 305 mm)
- Fits Our Series 22 and Series 322 Aluminum Standards

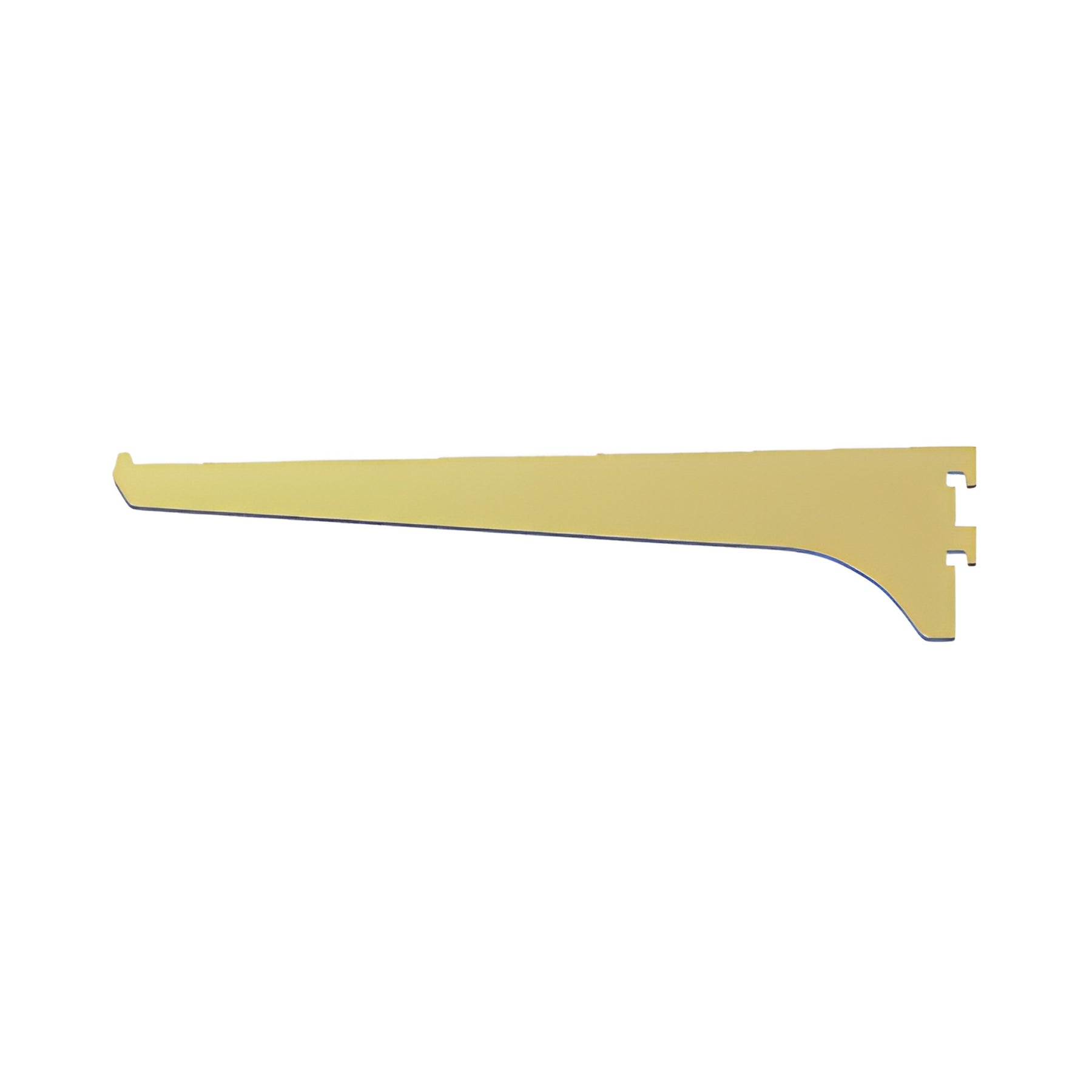

CRL Aluminum Brackets are available in five finishes and five sizes. They only work in our 22 Series and 322 Series Aluminum Standards. They do not have a back flange, but simply slip into the hidden slots and are secured by lightly tapping down on the Bracket.
Aluminum Bracket Weight Capacities: Based on two standards mounted 16" (406 mm) apart with the screws into the wall studs.
4" (102 mm) = 75 Lbs. (34 kg)
6" (152 mm) = 65 Lbs. (29 kg)
8" (203 mm) = 55 Lbs. (25 kg)
10" (254 mm) = 45 Lbs. (20 kg)
12" (305 mm) = 35 Lbs. (16 kg)
Product Warning:
These Aluminum Brackets are not interchangeable with Steel Standard and Bracket systems from other manufacturers.
Deduct 1/16" from depth of the glass shelf when using aluminum brackets.
