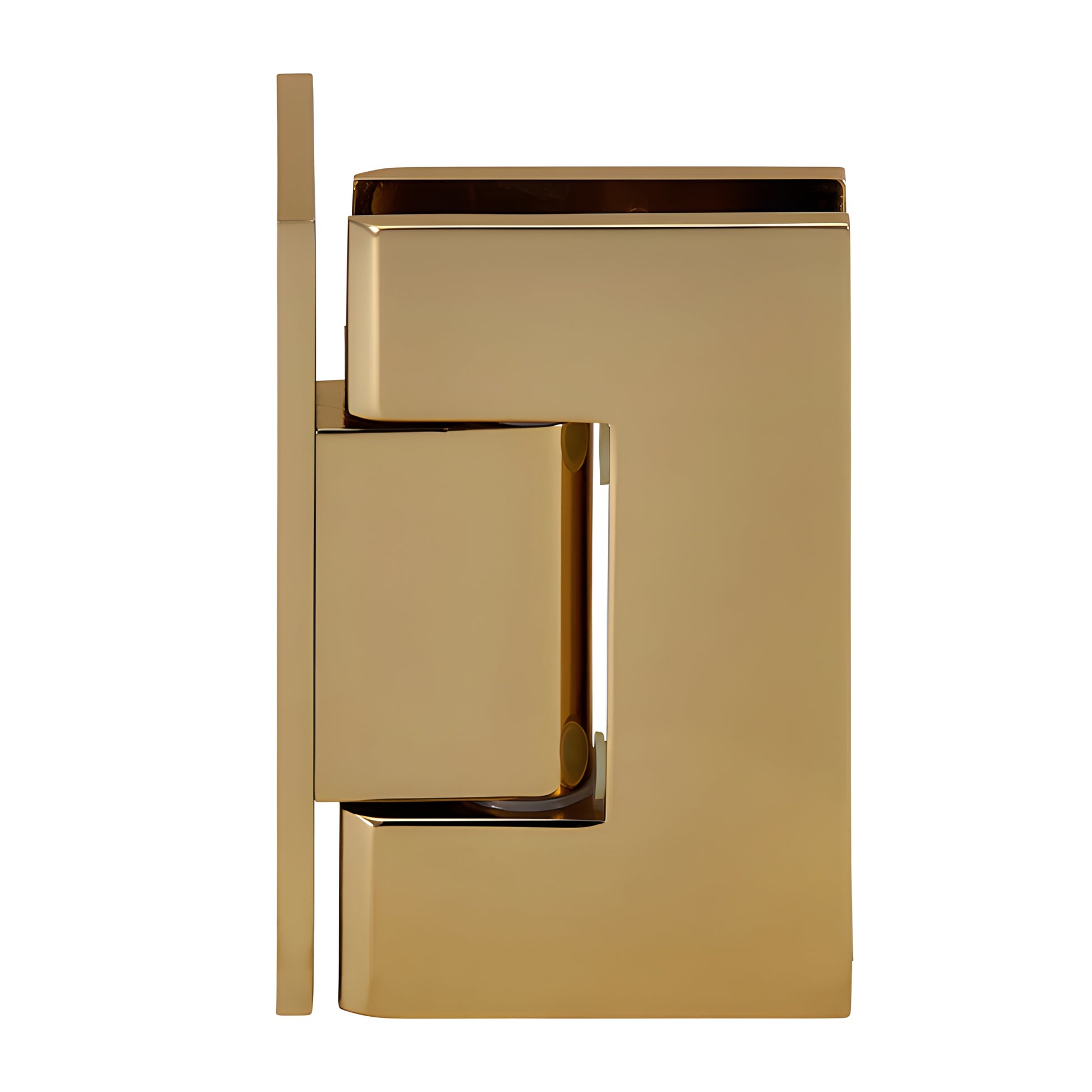

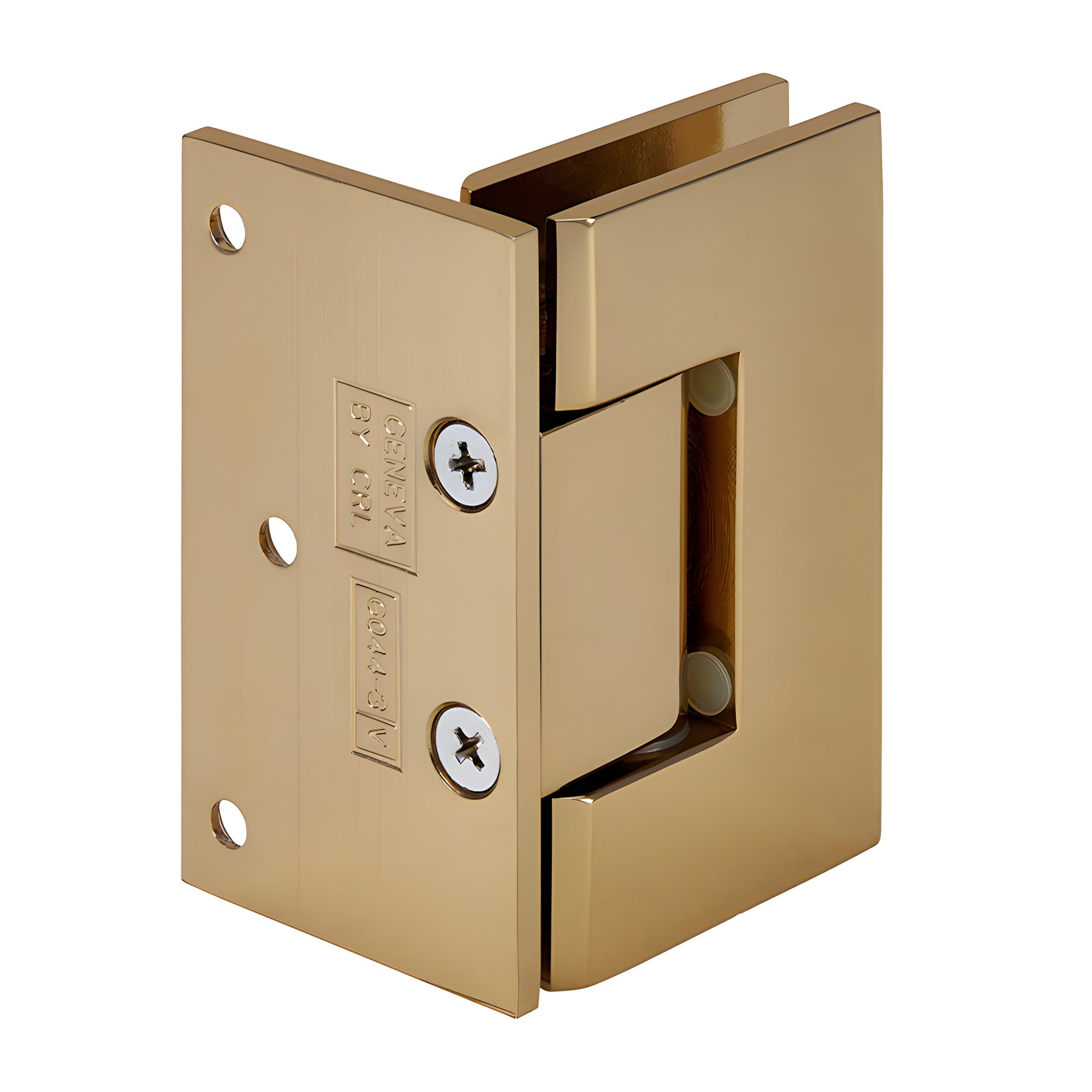

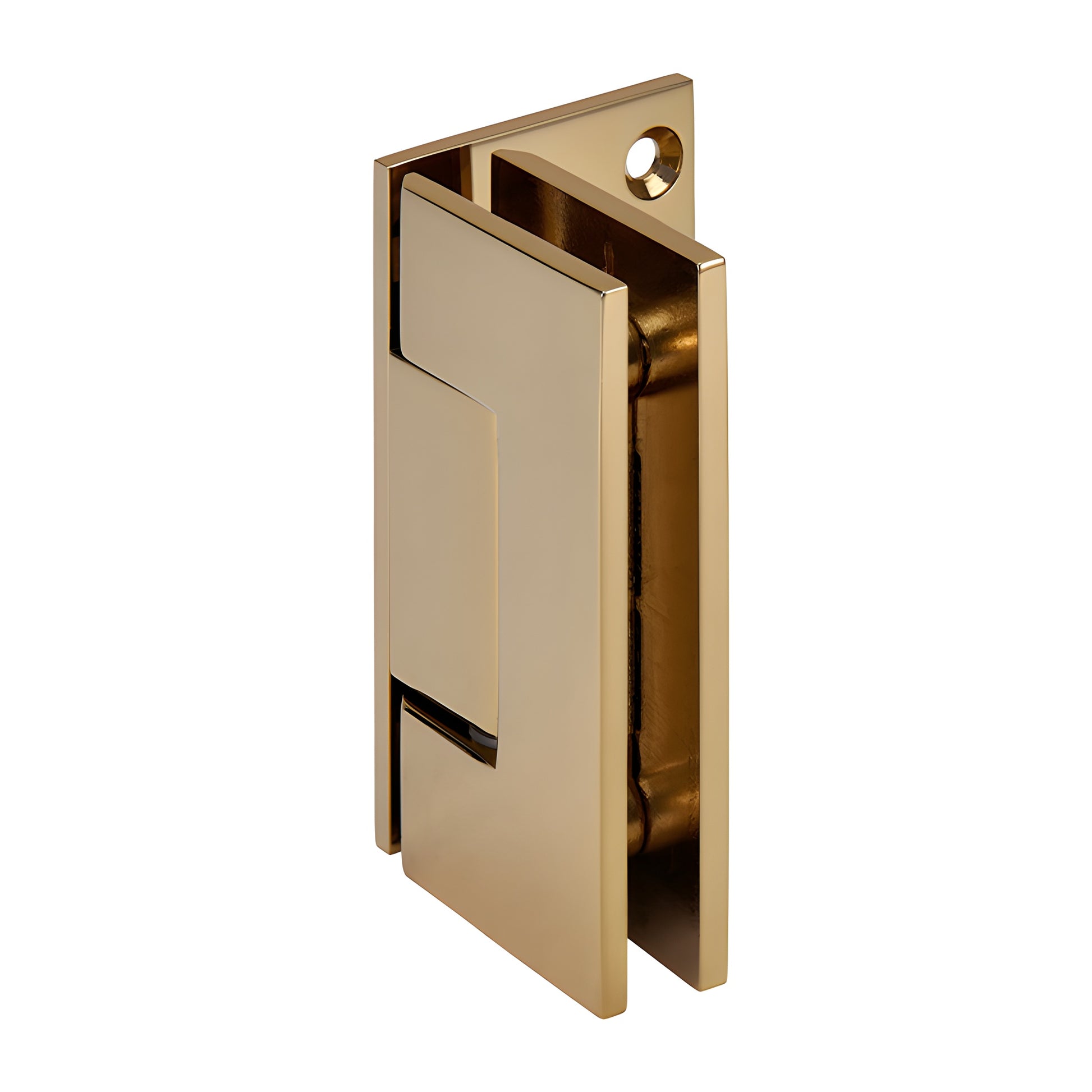

CRL Gold-Plated Adjustable Wall-Mount Offset Backplate Hinge

• Adjustable to any angle up to 90° after installation — no door removal required
• Available in several beautiful finishes
• 3 Year Warranty
• Use with monolithic tempered safety glass

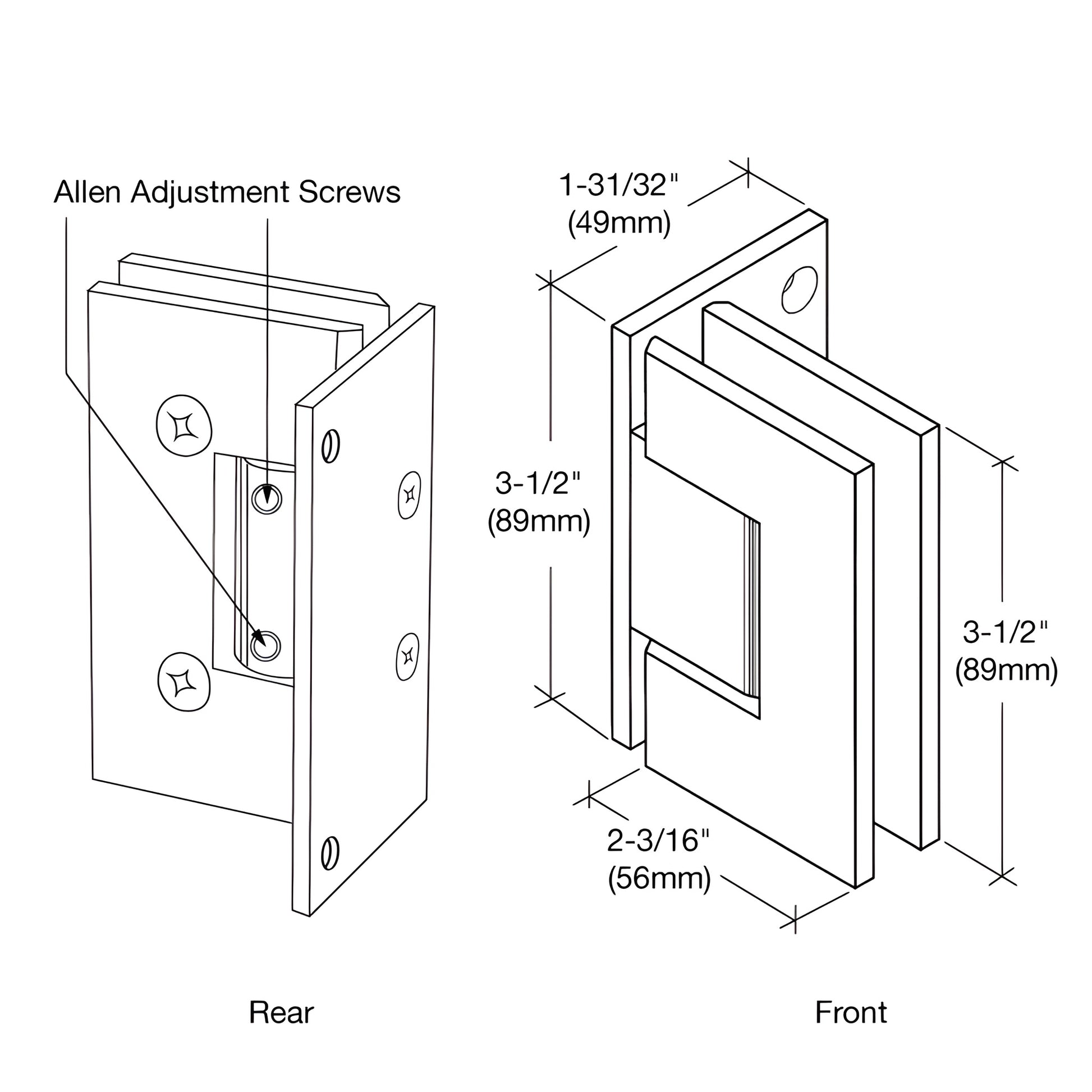

The CRL Adjustable Geneva Series (SKU: GEN344GP) upgrades the popular Geneva hinge into a fully adjustable, post-installation solution for frameless and semi-frameless shower doors. Adjust the closing angle—up to 90°—simply by loosening the Allen set screws, turning the door to the desired position, and retightening. The hinge supports a 90° swing inward and outward at the factory set position; adjusting from that position reduces swing in the adjusted direction. For outward-swinging doors (clear door jambs), you can set the hinge to close the door 5° inside the shower for a snug jamb fit. This product is ideal when you need an adjustable shower door hinge that provides precise, tool-accessible angle control and reliable self-centering performance.

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
Special Features: Post-installation adjustment to any angle up to 90°; self-centering behavior near closed position
Construction: Solid brass
Hinge Swings: 90° in and 90° out (at factory set position)
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. GEN13 gasket pack required separately for 5/16" (8 mm) glass.

NOTE: Adjusting the hinge angle can affect standard clearance deductions and may require glass width alteration. Contact CRL for details.

CRL shower door hinges are designed for residential and hotel shower use. For other applications, obtain approval from CRL Shower Door Technical Sales. Use only the template included with this hinge—cut-out dimensions may differ from other brands.

Purchase the CRL Adjustable Geneva Series hinge (GEN344GP) today to get precise angle adjustment and reliable self-centering performance for your
