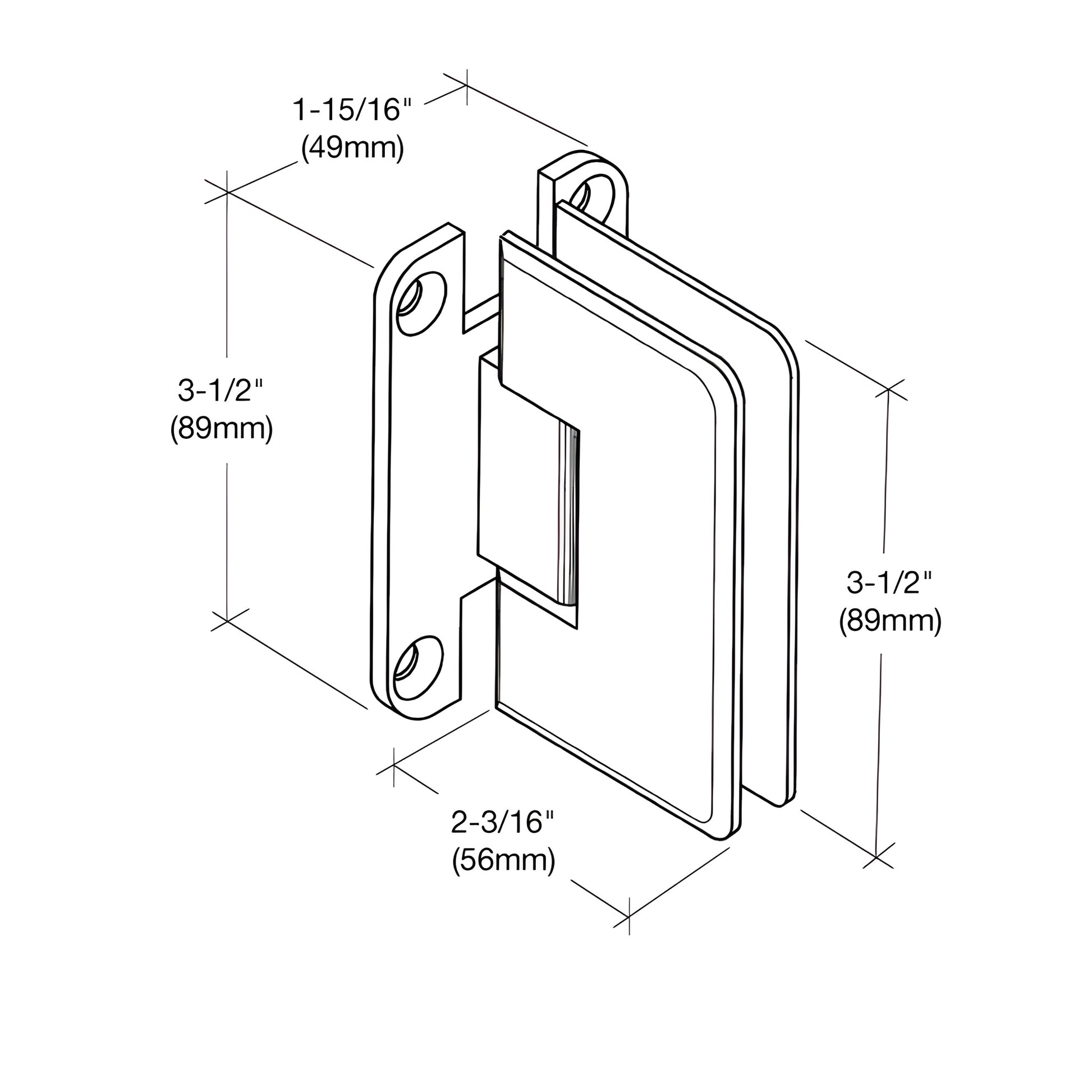

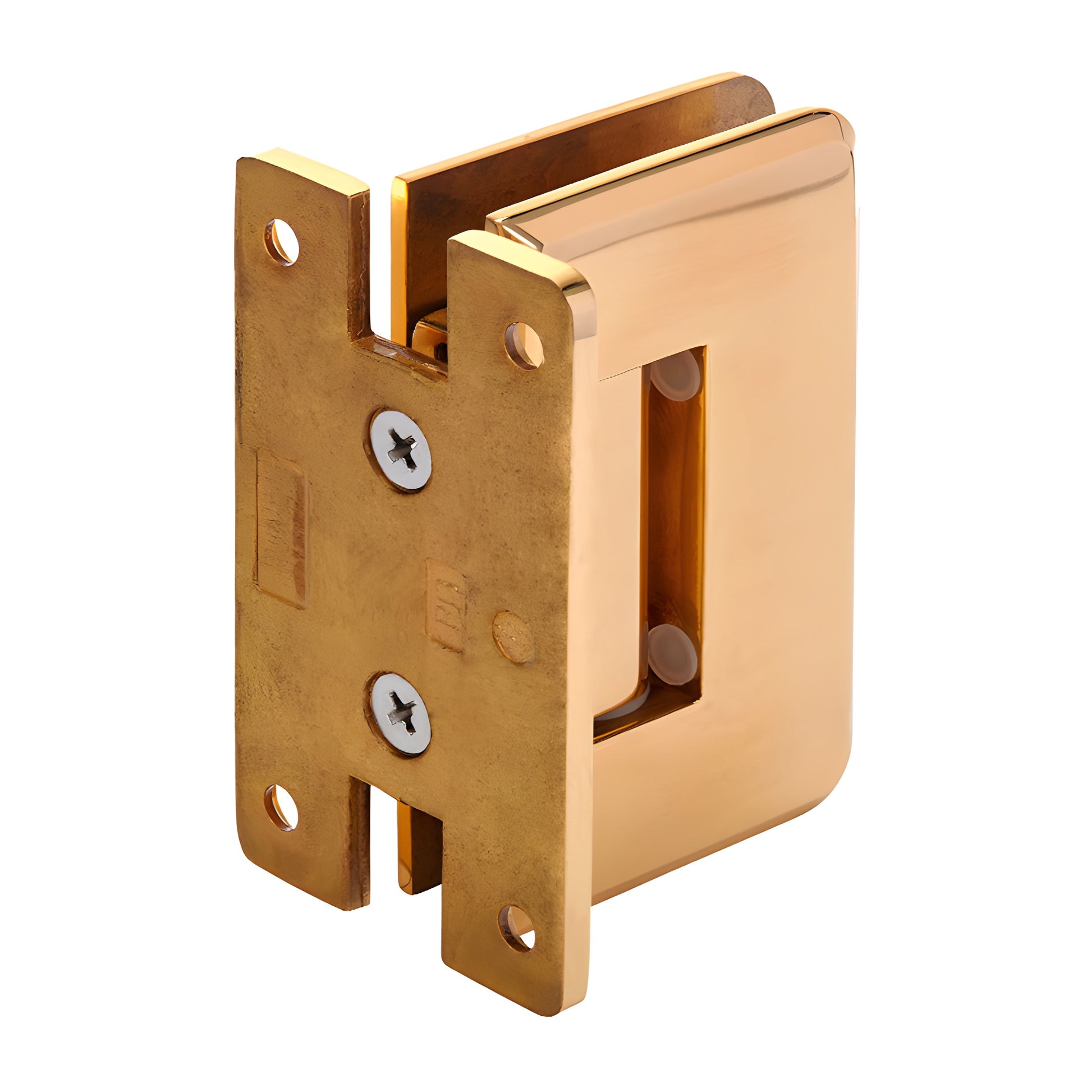

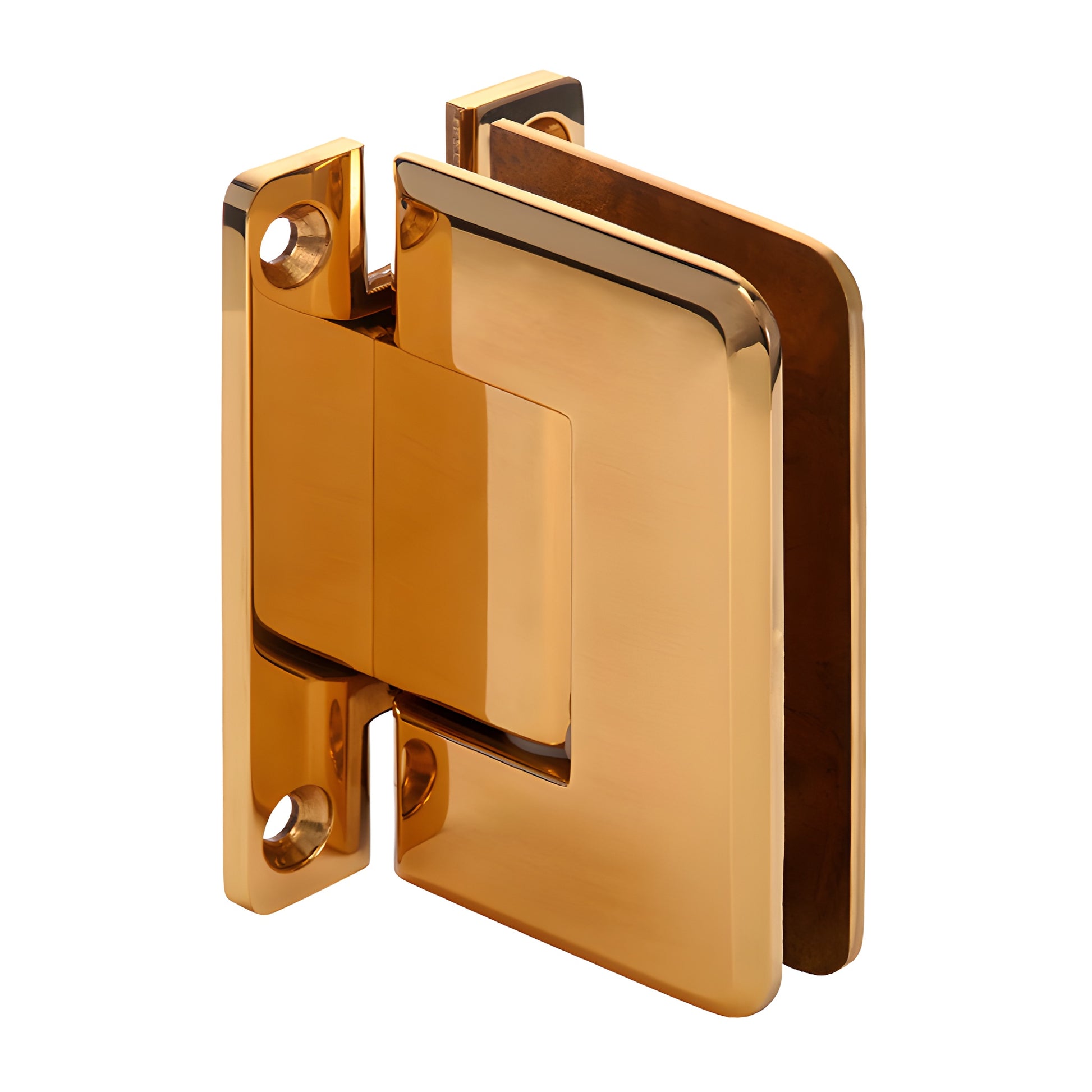

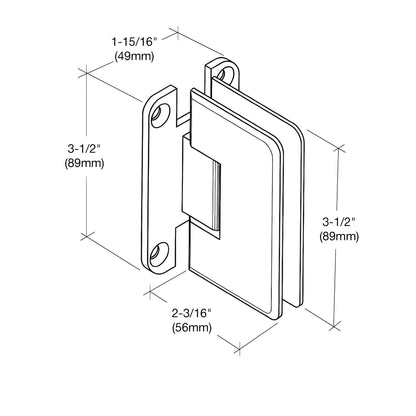

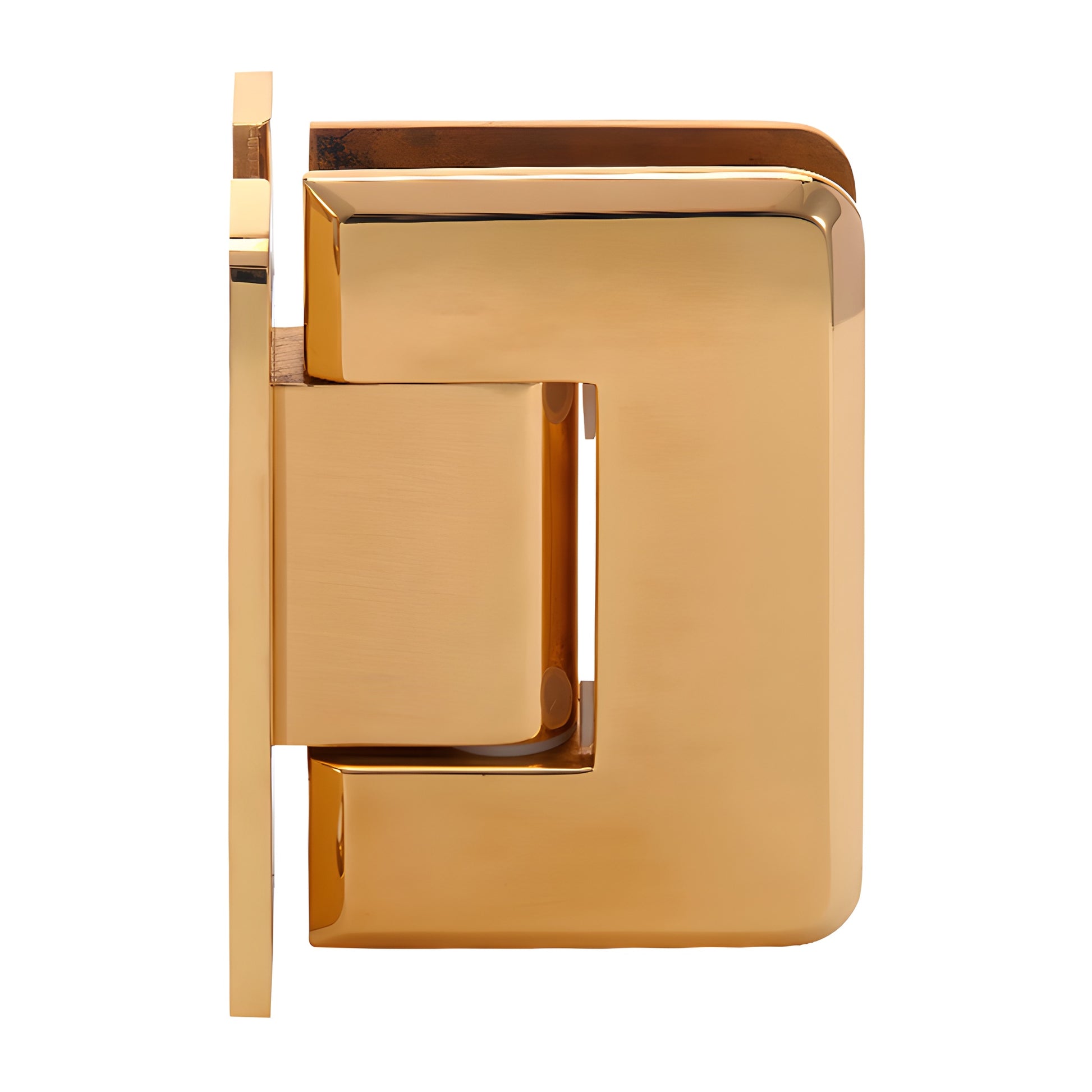

CRL Pinnacle 037 Gold-Plated Wall Mount H-Back Plate Hinge

• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• Wall-mount "H" back plate standard model (factory set for standard closing position)
• For use with monolithic tempered glass

CRL Pinnacle Hinge — a refined alternative to the Geneva Series, featuring radius corners and beveled edges for a sleek, modern look. Designed for residential and hotel shower doors, Pinnacle hinges accept 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass and are self-centering when within 15° of the closed position. Constructed from solid brass with stainless steel plunger tips, pins, and springs for long service life and reliable door closure. Includes the reversible 5° pivot pin (standard on Geneva, Cathedral, Roman, Ultimate, and Elite Series). Custom pivot pins available for off-angle installations.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin with a 90° side (standard) and an 85° side (5° tighter closure into the shower interior). The pin can be rotated to change the active side.

Custom Pivot Pin: Specify custom angles (up to 45°) for off-angle walls or atypical installations when the standard 5° pivot does not achieve the desired closing position.

Load Capacity:

• Using two hinges (8–12 mm glass): up to 80 lbs (36 kg); maximum door width 28" (711 mm).
• Using three hinges (8–12 mm glass): up to 120 lbs (54 kg); maximum door width 32" (813 mm).

SPECIFICATIONS:
Glass Thickness: 5/16" to 1/2" (8 to 12 mm) tempered safety glass
Special Feature: Wall-mount and 180° glass-to-glass models available as Standard (factory set at 0°) or 5° Pre-Set for tighter interior closure
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack must be purchased separately for use with 5/16" (8 mm) glass.

Replacement Hardware:
