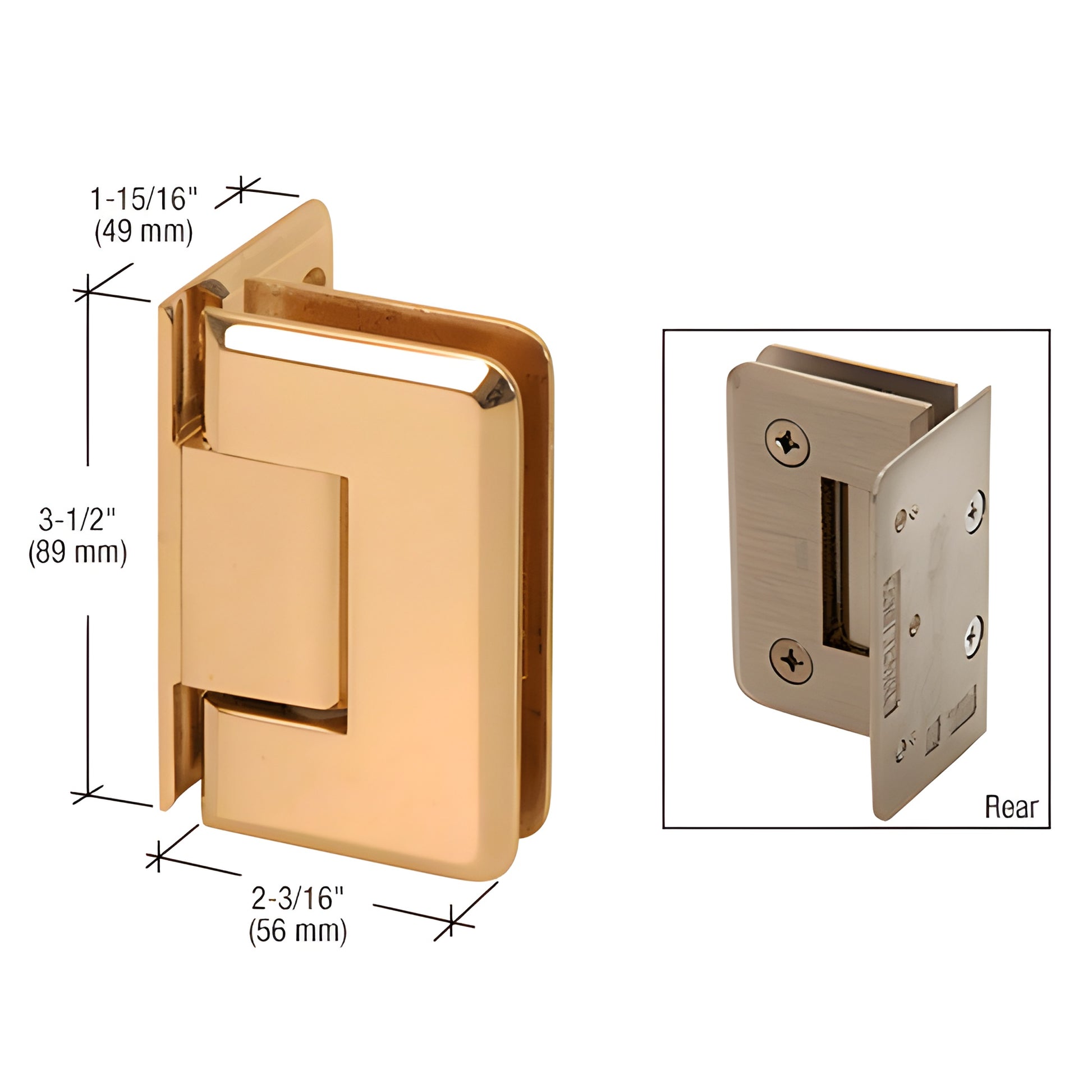

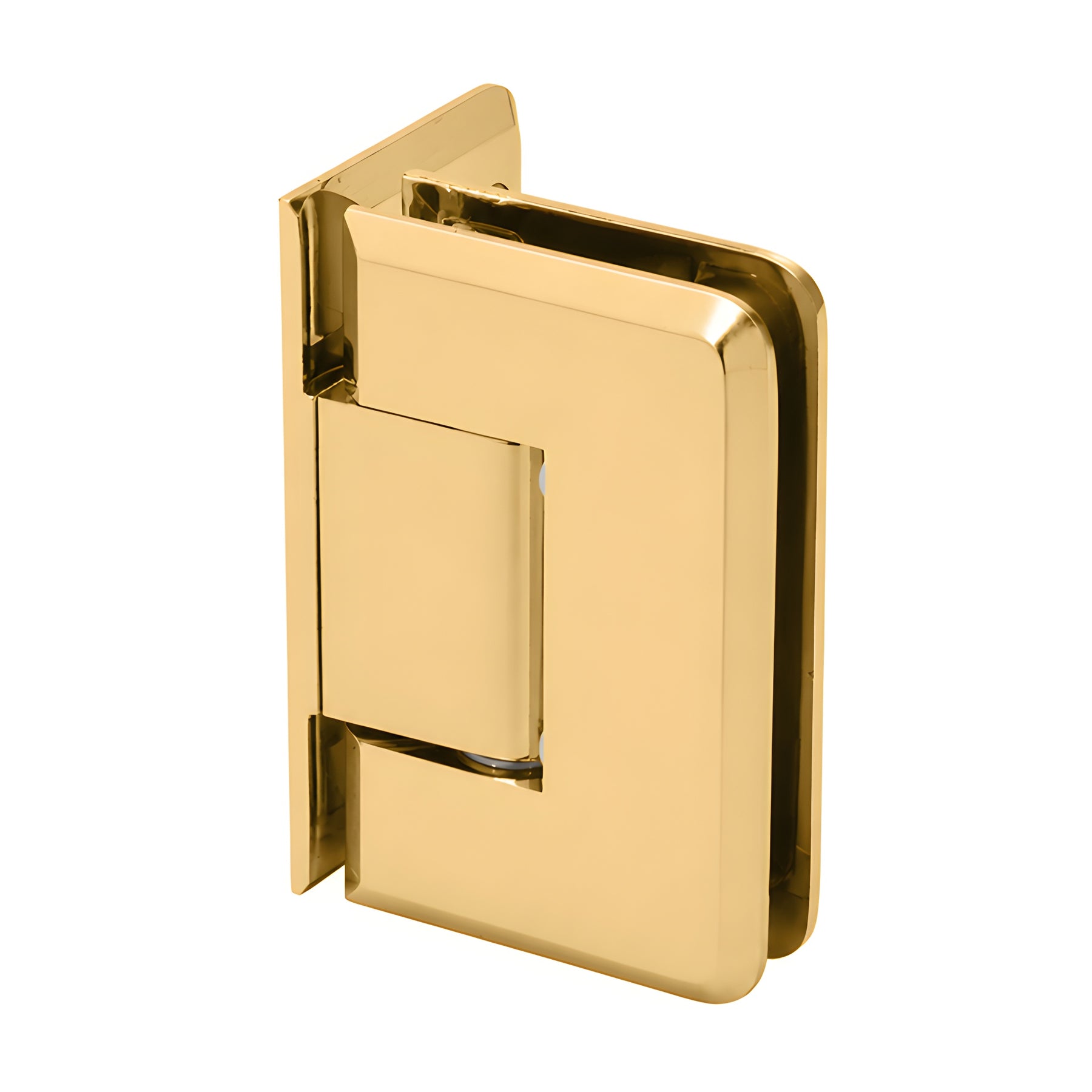

CRL Pinnacle 044 Gold-Plated Offset Wall-Mount Hinge for Glass Doors

• Self-centering with reversible 5° pivot pin
• Available in several beautiful finishes
• Three year warranty
• Wall-mount offset back plate (standard model — factory set for standard closing position)
• For use with monolithic tempered safety glass

The CRL Pinnacle Hinge (SKU: P1N044GP) is a radius-corner, beveled-edge alternative to the Geneva Series, designed for a sleek, high-end look. Built from solid brass with stainless steel plunger tips, pins, and springs, this durable tempered glass shower hinge provides reliable self-centering closure and long service life. Ideal keywords: brass glass shower hinge, tempered glass shower door hinge with reversible pivot pin.

FEATURE HIGHLIGHTS

Standard Reversible Pivot Pin: Each Pinnacle Hinge includes a reversible pivot pin marked 90° on one side and 85° on the other. Standard models ship with the 90° side active; Pre-Set models ship with the 85° side active for a 5° tighter closure into the shower interior. Rotate the pin (do not flip) to switch settings.

Custom Pivot Pin: Custom pivot pins are available for off-angle installations (specify up to 45°) when the standard 5° offset does not achieve the desired closing position.

Load Capacity

Using two hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 80 lbs (36 kg), max door width 28" (711 mm). Using three hinges with 5/16"–1/2" (8–12 mm) glass: holds up to 120 lbs (54 kg), max door width 32" (813 mm).

SPECIFICATIONS:

Glass Thickness: 5/16" (8 mm) to 1/2" (12 mm) tempered safety glass
Special Feature: Wall-mount and 180° glass-to-glass models available as Standard (0°) or 5° Pre-Set for tighter closure
Construction: Solid brass with stainless steel internal components
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required
Includes: Gaskets, screws, and glass fabrication dimensions. Cat. No. P1N13 gasket pack required separately for 5/16" (8 mm) glass.
