CRL Gray 3/4 in Roll-Formed Aluminum Standoff Screen Frame, 144 in
CRL Gray 3/4 in Roll-Formed Aluminum Standoff Screen Frame, 144 in
Regular price
$43.07 CAD
Regular price
Sale price
$43.07 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# WSFS34GRY
Shipping Weight: 1.3 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 1.3 Pounds
Shipping Limitations: Requires Cutting Instructions for UPS
Request A Quote For A Shipping Rate
Minimum Order Quantity: 1Unit of Measure: Stock Length
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Case Quantity
90
Finish/Color
Gray
Height
3/4
Length
12
Roll Formed
Yes
Standoff Frame
Yes
Wall Thickness
0.025
Width
1-3/16
Overview
- Typically installed on project-in or project-out windows with wicket screens
- .025" (.63 mm) wall thickness (± .002" (.05 mm) manufacturing tolerance)
- Several finishes available

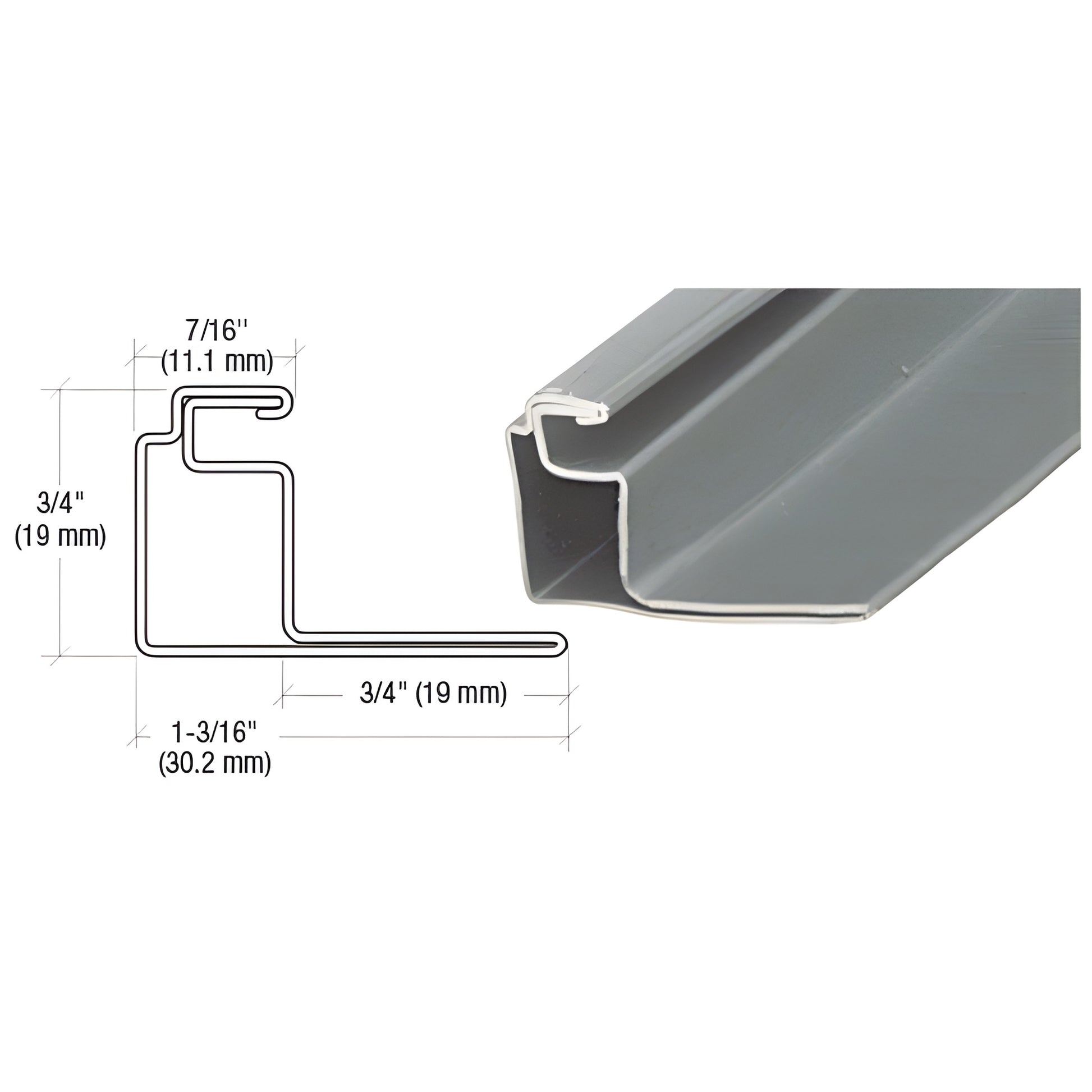

CRL 3/4" x 7/16" (19 x 11 mm) box type screen frame (SKU: WSFS34GRY) features a 3/4" (19 mm) standoff leg to allow screen installation where a screen wicket is used — ideal for custom wicket screen window openings and retrofit applications.
NOTE: Because of the longer standoff member, this screen frame is not cambered (no bow).
SPECIFICATIONS:
Material: Roll-formed aluminum
Wall Thickness: .025" (.63 mm)
Uses Spline Size: .175" (4.4 mm)
Uses Corners: WSC111 for mitered corners
Product Warning:
Stock lengths must ship via common carrier unless specifically cut for UPS shipment.
Due to tolerances in coil stock and stretch in roll forming, actual wall thickness may vary by ± .002" (.05 mm) — standard industry practice.
Order the WSFS34GRY 3/4" x 7/16" roll-formed aluminum box type screen frame for wicket-screen window installations — contact CRL to buy or request custom cuts.
