CRL Pinnacle 037 Gun Metal Wall Mount H Back Plate Hinge

• Self-centering shower hinge with reversible 5° pivot pin
• Multiple premium finishes available
• Three-year warranty
• Wall-mount "H" back plate standard (factory set for standard closing position)
• For monolithic tempered safety glass (5/16"–1/2" / 8–12 mm)

The CRL Pinnacle Hinge (SKU: P1N037GM) is a solid-brass shower door hinge designed for tempered safety glass, featuring radius corners and beveled edges for a modern, low-profile look. Built with stainless steel plunger tips, pins, and springs, the Pinnacle delivers reliable self-centering action and long service life. It accepts 5/16" (8 mm) to 1/2" (12 mm) glass and is self-centering when the door is within 15° of the closed position.

Key differentiator: the reversible 5° pivot pin—also used in Geneva, Cathedral, Roman, Ultimate, and Elite Series—lets you choose standard (90°) or a 5° tighter pre-set (85°) closing position without extra hardware. A Custom Pivot Pin is available for off-angle installations (specify up to 45°) for precise closure when walls or jambs are not square.

STANDARD REVERSIBLE PIVOT PIN: Each Pinnacle Hinge contains a reversible pivot pin. One side is marked 90° (standard) and the opposite 85° (5° tighter closure). Standard models ship with the 90° side activated; pre-set models ship with the 85° side activated. Rotate the pin (do not flip) to change settings.

CUSTOM PIVOT PIN: Order a custom pivot pin up to 45° for off-angle installations to ensure proper door closure when the wall is not square to the door.

CAPACITY & SIZING

• Using two hinges with 8–12 mm glass: holds up to 80 lbs (36 kg); max door width 28" (711 mm)
• Using three hinges with 8–12 mm glass: holds up to 120 lbs (54 kg); max door width 32" (813 mm)

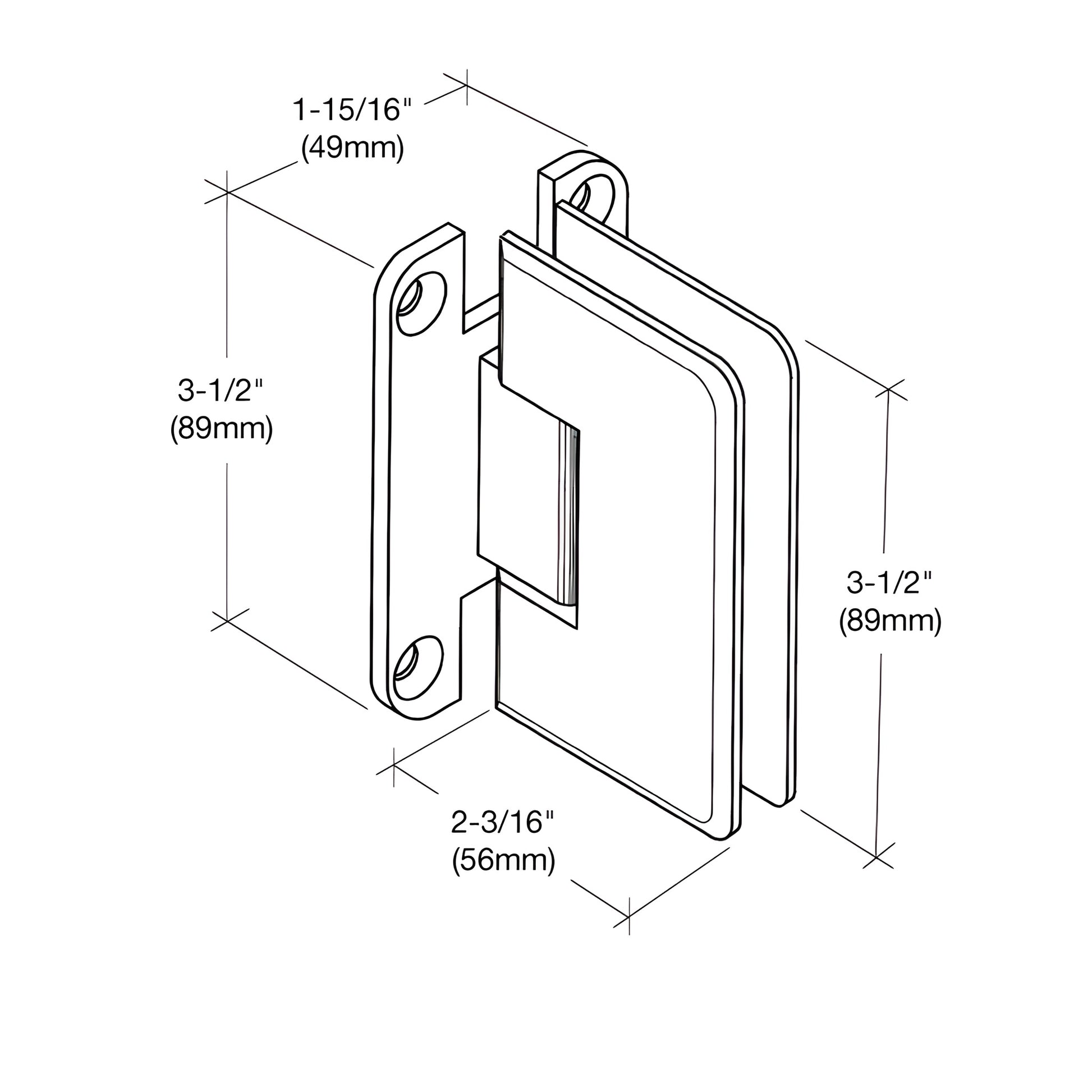

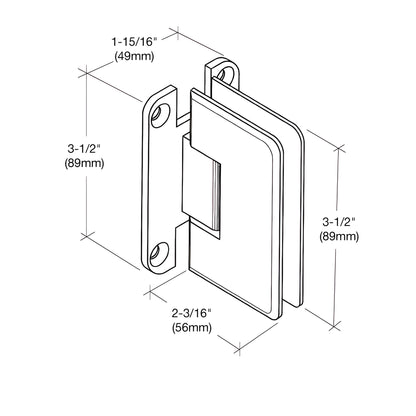

SPECIFICATIONS
Glass Thickness: 5/16"–1/2" (8–12 mm) tempered safety glass
Special Feature: Wall-mount and 180° glass-to-glass models available; choose Standard (0°) or 5° Pre-Set for tighter interior closure
Construction: Solid brass with stainless steel internal components
