Description

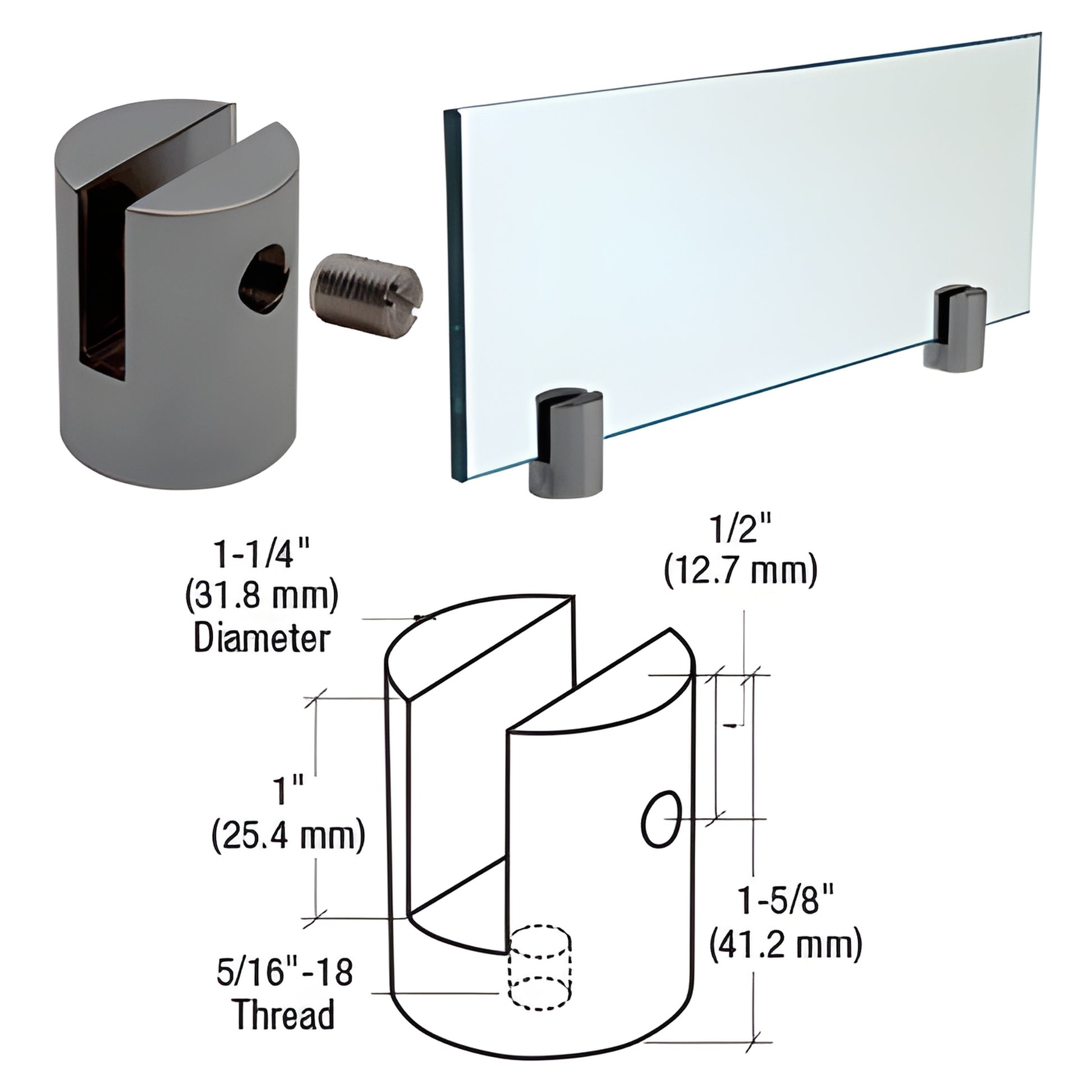

| Diameter | 1-1/4 in. (31.8 mm) |
| Finish/Color | Gun Metal |
| Glazing Thickness | 1/2 in. (12 mm) |
| Height 1-5/8 in. | (41.3 mm) |
| Material | Stainless Steel |
Overview
CRL Slot Mount Standoffs offer a versatile solution for installing shelves, accommodating 1/2" (12 mm) thick material without the need for drilling.
These standoffs can be mounted vertically or horizontally and come in various architectural finishes, making them ideal for use with monolithic tempered glass.
The nylon tip set screws ensure a secure hold without damaging the material, and the 1-1/4" (32 mm) diameter standoff supports a shelf projection of up to 5" (127 mm) when anchored to a wall stud.
Available in slot widths of 1/4" (6 mm), 3/8" (10 mm), and 1/2" (12.7 mm), these standoffs can be used independently or paired with Standard Standoff Bases for enhanced installation flexibility.
These standoffs can be mounted vertically or horizontally and come in various architectural finishes, making them ideal for use with monolithic tempered glass.
The nylon tip set screws ensure a secure hold without damaging the material, and the 1-1/4" (32 mm) diameter standoff supports a shelf projection of up to 5" (127 mm) when anchored to a wall stud.
Available in slot widths of 1/4" (6 mm), 3/8" (10 mm), and 1/2" (12.7 mm), these standoffs can be used independently or paired with Standard Standoff Bases for enhanced installation flexibility.
