CRL Gunmetal Slot-Mount Standoff for 1/4" Glass Panels

• Fits 1/4" (6 mm) thick material
• No drilling required for installation
• Available in several architectural finishes
• Use with monolithic tempered glass

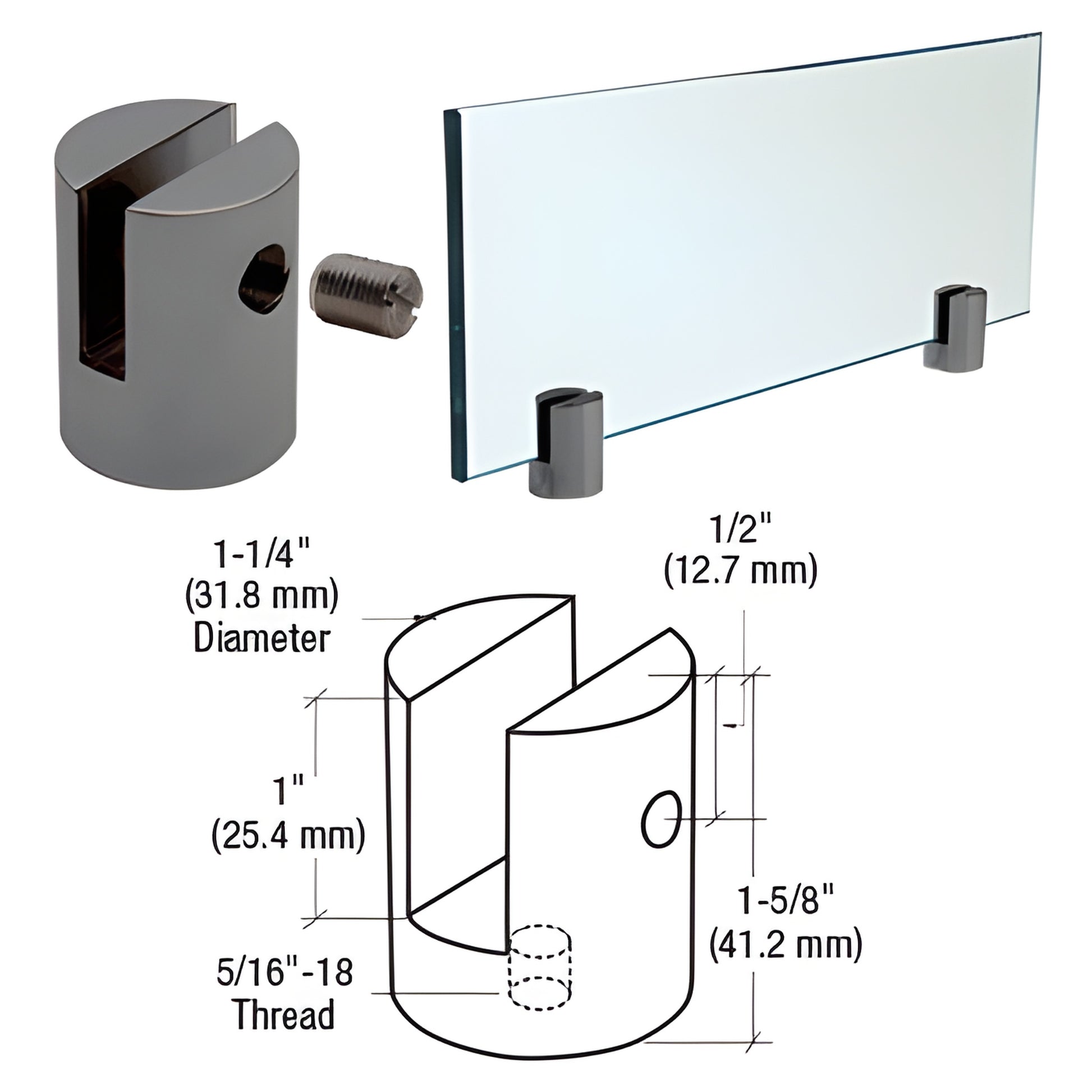

CRL Slot Mount Standoffs (SKU: SM14GM) are engineered for vertical or horizontal mounting to install partition panels, shelving, or signage without drilling holes in the material. Nylon-tip set screws secure panels without chipping or damaging glass or other panel materials. This 1-1/4" (32 mm) diameter slot mount standoff accepts 1/4" (6 mm) thick panels and is suitable for glass signage and thin-panel shelving applications. Maximum recommended shelf projection from the wall is 5" (127 mm) when the standoff is anchored to a wall stud.

Slot mount standoffs can be used independently or paired with Standard Standoff Bases. Available slot widths: 1/4" (6 mm), 3/8" (10 mm) and 1/2" (12.7 mm). Useful long-tail search phrases: "slot mount standoff for 1/4 inch glass," "no-drill standoff for tempered glass signage," and "architectural finish glass standoffs."

Slot Mount Standoff Assemblies consist of:
1 Each Standoff
1 Each Nylon Tip Set Screw
1 Each Clear Gasket

Product Warning:
Due to diverse applications, weight limits for standoff systems depend on wall or substrate anchoring and material strength. Verify substrate strength and anchoring method before installation.


Call to action: Add SKU SM14GM to your cart or contact CRL Customer Service to confirm fit and finishes.
