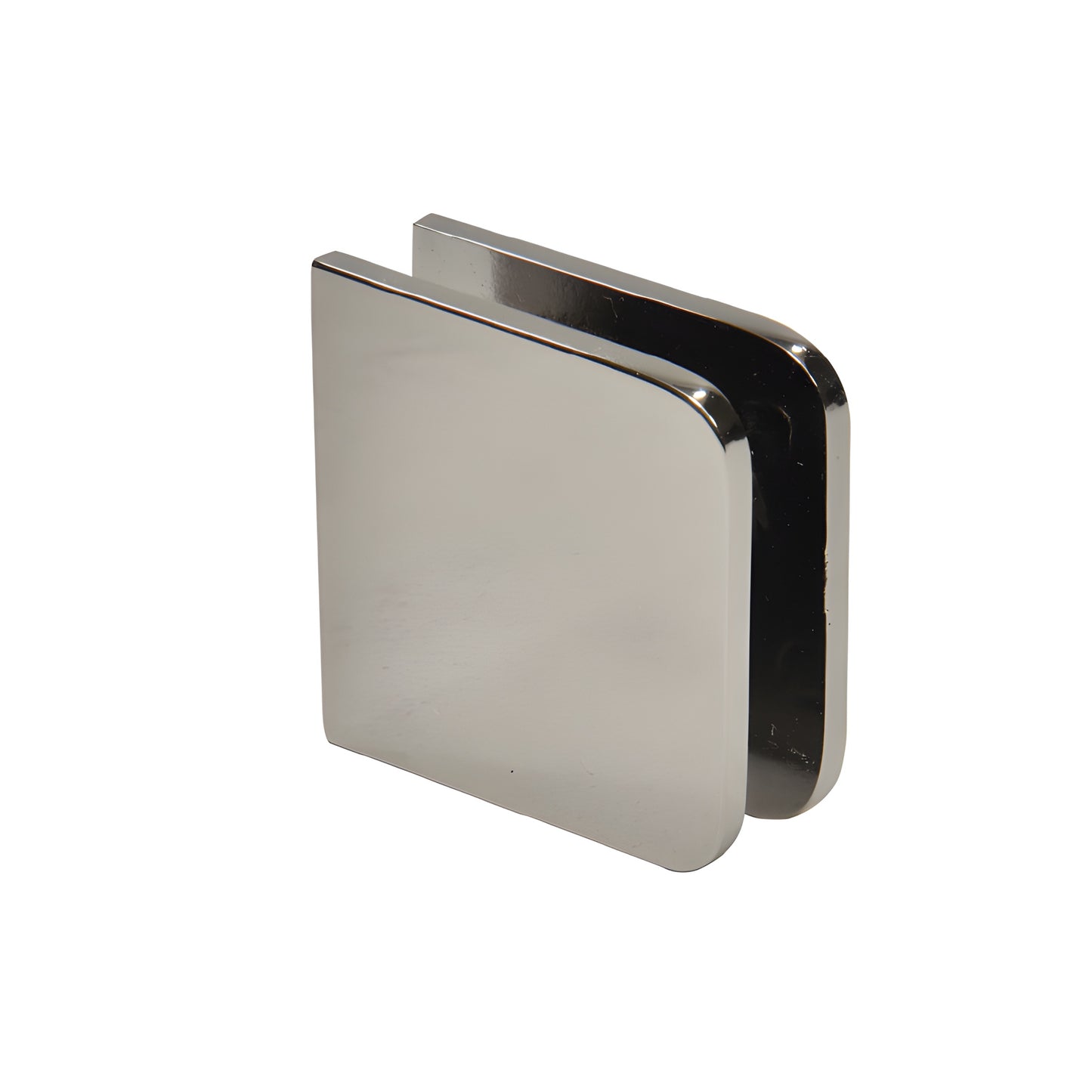

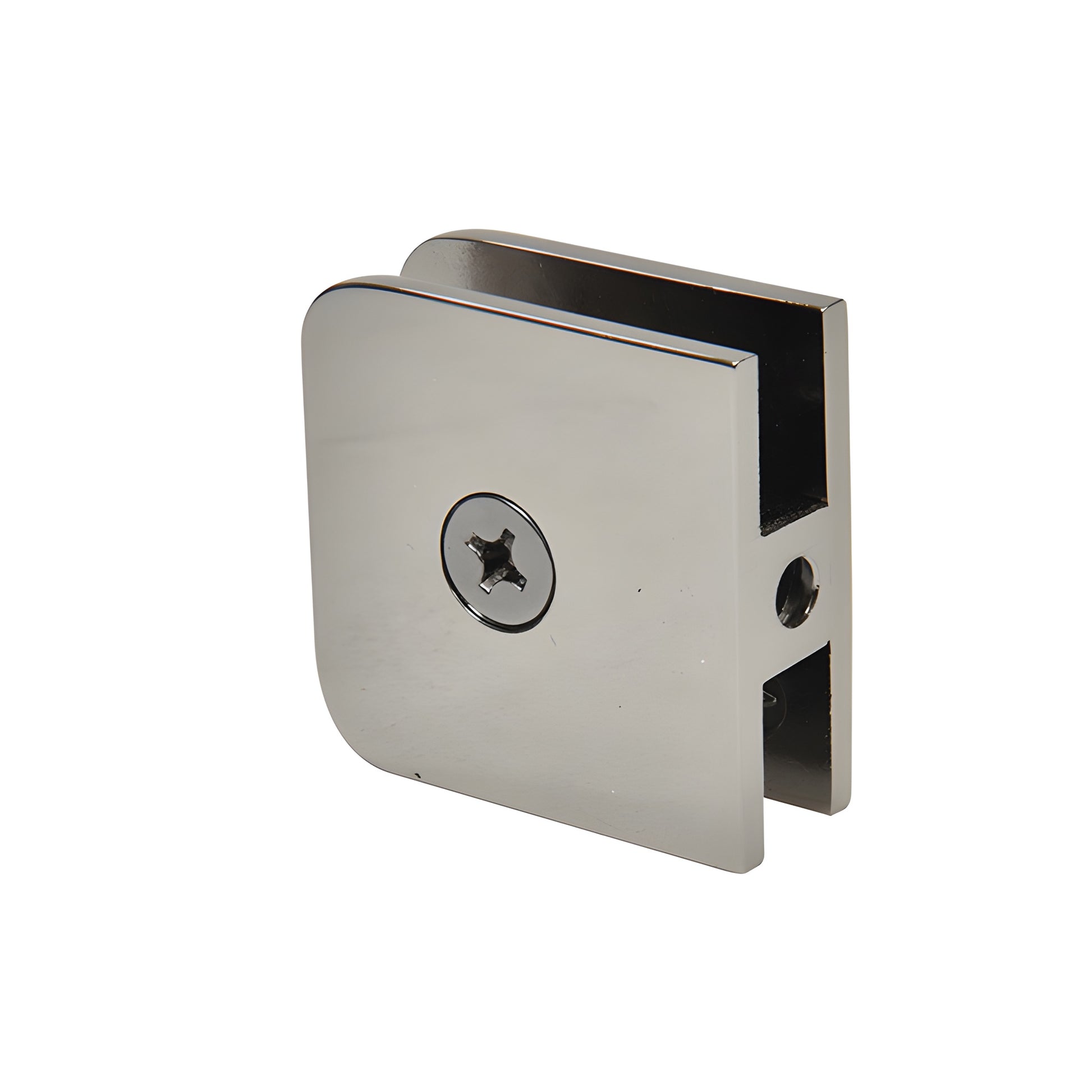

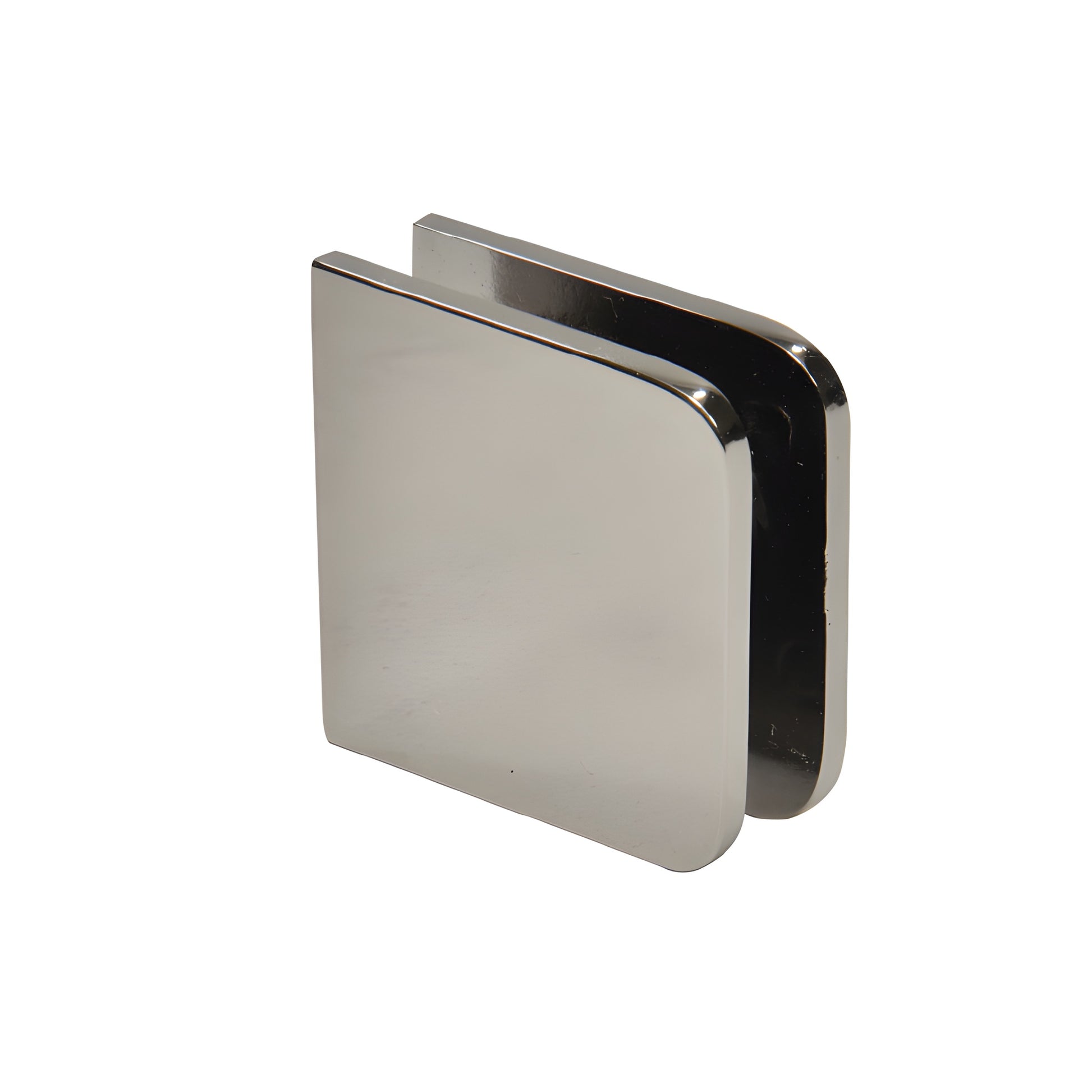

CRL Gunmetal Traditional U-Clamp for Fixed Shower Glass Panel
CRL Gunmetal Traditional U-Clamp for Fixed Shower Glass Panel
Regular price
$40.08 CAD
Regular price
Sale price
$40.08 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# UC77GM
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 3.2 Ounces
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Finish/Color
Gun Metal

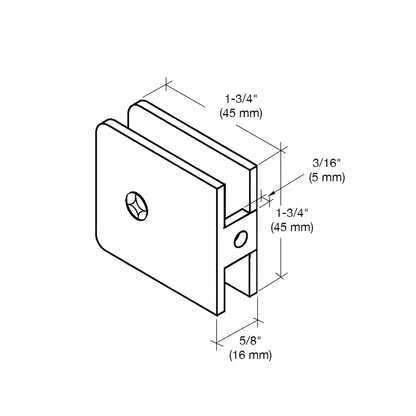

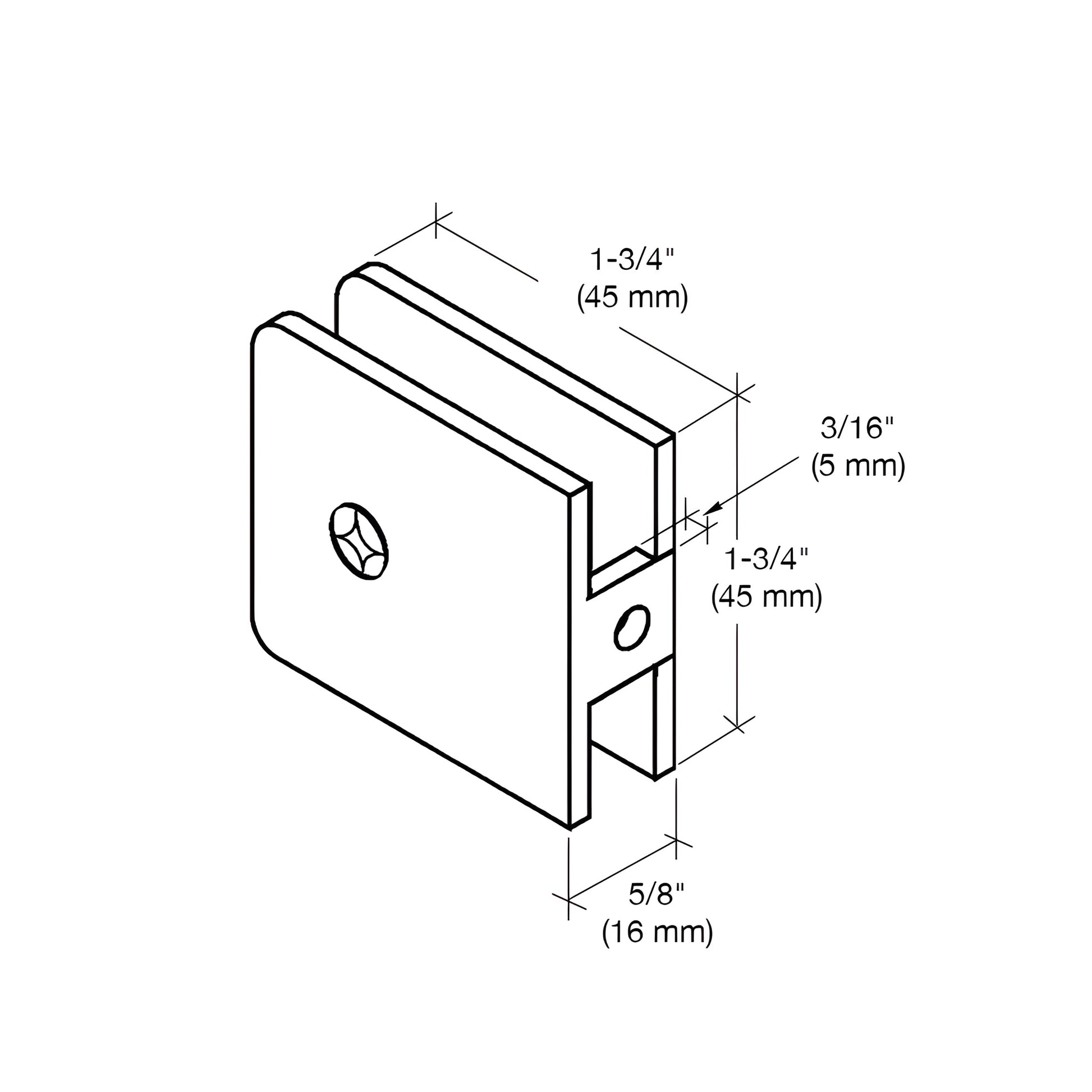

Glazing Thickness
5/16 in. To 1/2 in. (8 mm To 12 mm)
Height
1-3/4 in. (44 mm)
Length
1-3/4 in. (44 mm)
Material
Brass
Mounting Type
Wall Mount
Overview
- For 5/16" to 1/2" (8 to 12 mm) thick glass
- Secures fixed panels of glass for frameless shower enclosures
- Solid brass construction
- Alternative to U-channel for a more "all-glass" appearance
- Glass fabrication required to accommodate clamps
- Use monolithic tempered glass
CRL Standard Fixed Panel U-Clamps (SKU: UC77GM) mount directly to the wall, ceiling, or floor to secure vertical fixed glass panels in frameless shower glass installations. Clearance between the glass and wall is 5/32" to 3/16" (4 to 5 mm); clear silicone can be used to seal the gap for a clean, water-resistant finish. These traditional glass clamps provide a flush, contemporary look compared with U-channel and are ideal when you want a frameless shower glass clamp that minimizes visible metal hardware.
Our solid brass Traditional Glass Clamps are available in finishes that match our shower door hinges. Each clamp includes appropriate mounting screws (for wall clamps) and one set of clear gaskets. Extra Cat. No. UCG77 clear gaskets may be ordered separately.
SPECIFICATIONS:
Material: Solid Brass
Glass Thickness Range: 5/16" to 1/2" (8 to 12 mm)
Hole Diameter Required: 5/8" or 3/4" (16 or 19 mm)
Includes: Mounting screws (for wall clamps) and clear gaskets
NOTE: An additional set of clear gaskets (Cat. No. UCG77) is required for 5/16" (8 mm) glass.
Order UC77GM solid brass frameless shower glass clamps today to finish your contemporary shower enclosure with a clean, all-glass look.
