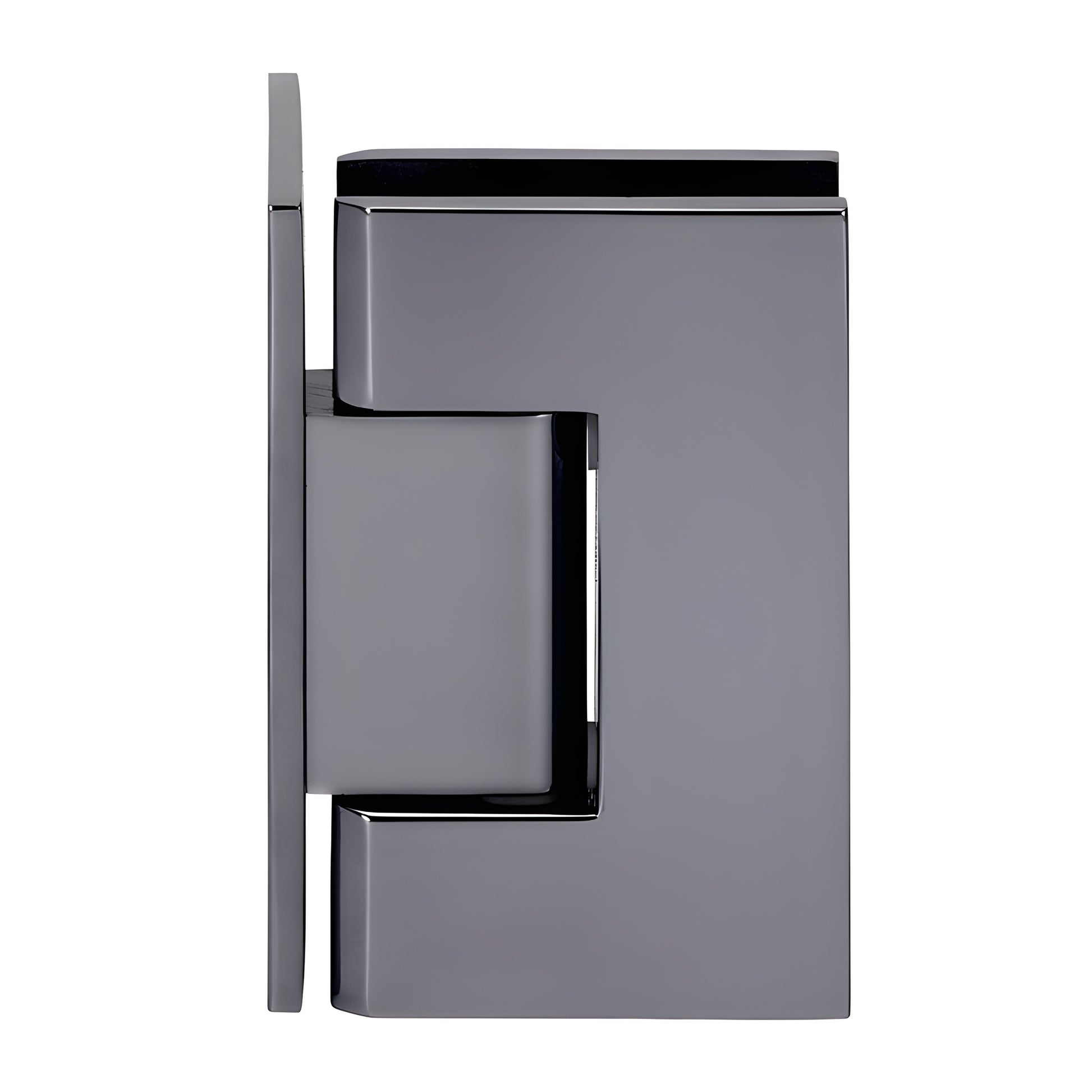

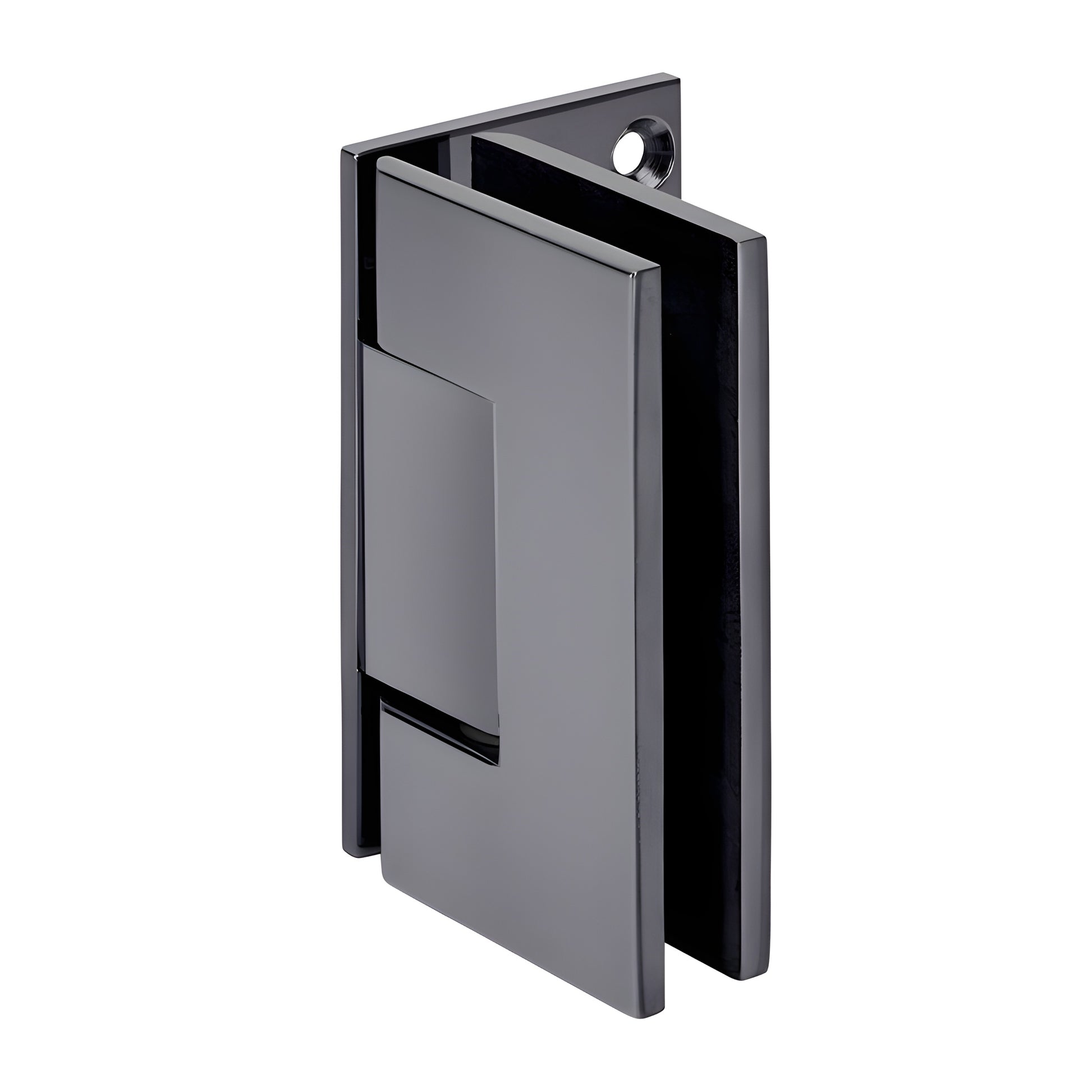

CRL Vienna 044 Gun Metal Offset Wall-Mount Backplate Hinge for Glass

• Accommodates 3/8" to 1/2" (10 to 12 mm) tempered safety glass
• Available in several beautiful finishes; custom finishes available on request
• 3 Year Warranty

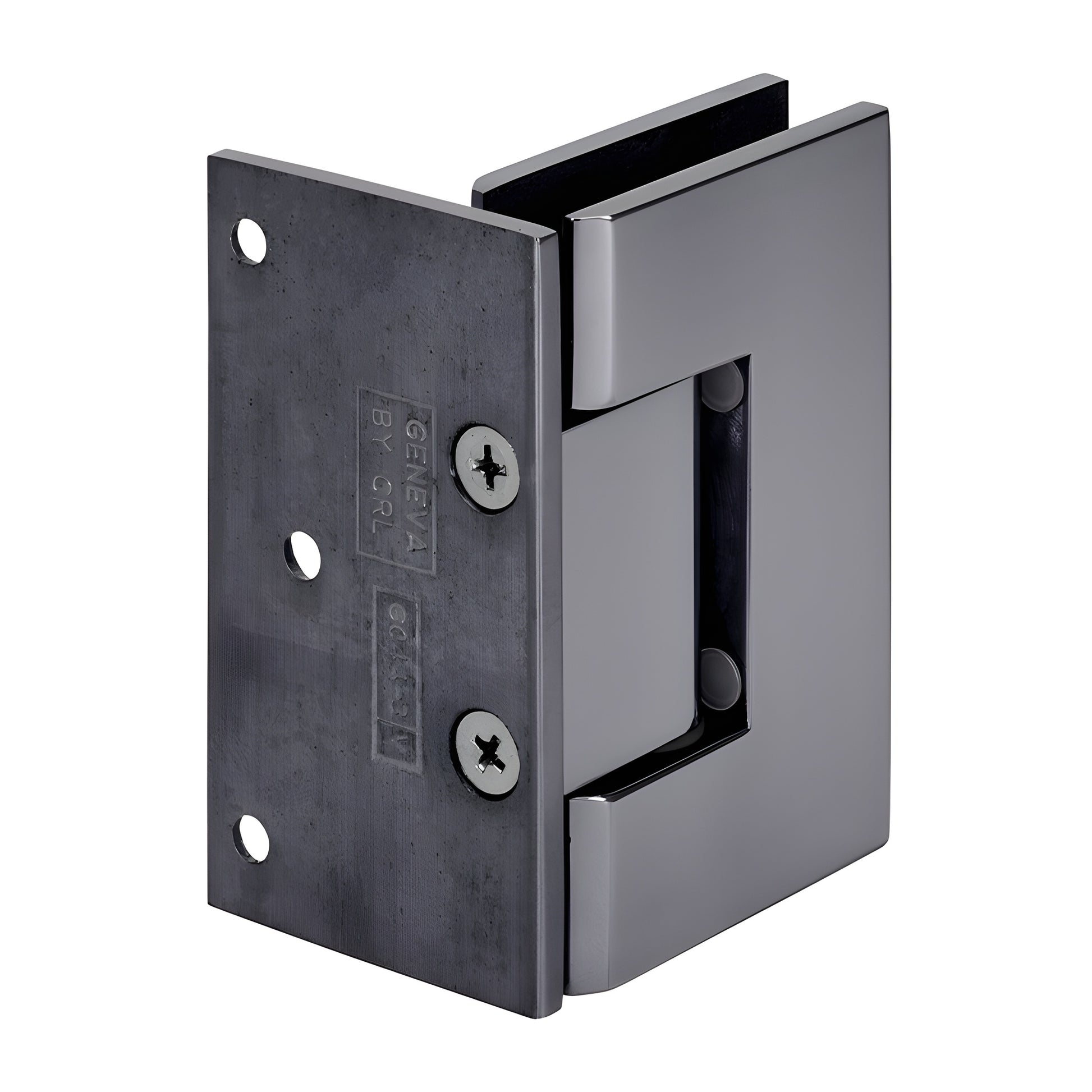

• Wall mount offset back plate — standard model
• Use with monolithic tempered glass

CRL Vienna Hinges are heavy-duty shower door hinges engineered for wider, heavier frameless glass doors where traditional hinges fall short. Solid brass construction and internal dual steel pins provide two template options: leave the pins in place for CRL "mouse-ears" cut-outs or remove them for increased adjustability and compatibility with CRL or some competitive rectangular, square-corner cut-outs.

Standard Reversible Pivot Pin: Each hinge includes a reversible pivot pin with two settings — 90° (standard) and 85° (pre-set option available for a tighter 5° closure into the shower). Rotate the pin (do not flip) to select the other angle.

Custom Pivot Pins: Specify a custom pivot pin up to 45° for off-angle walls or non-90° installations to achieve the desired closing position.

Load Capacities:

• Two hinges with 3/8" (10 mm) glass: holds up to 100 lb (45 kg); max door width 34" (864 mm)
• Two hinges with 1/2" (12 mm) glass: holds up to 100 lb (45 kg); max door width 32" (813 mm)
• Three hinges with 3/8" (10 mm) glass: holds up to 130 lb (59 kg); max door width 34" (864 mm)
• Three hinges with 1/2" (12 mm) glass: holds up to 130 lb (59 kg); max door width 32" (813 mm)

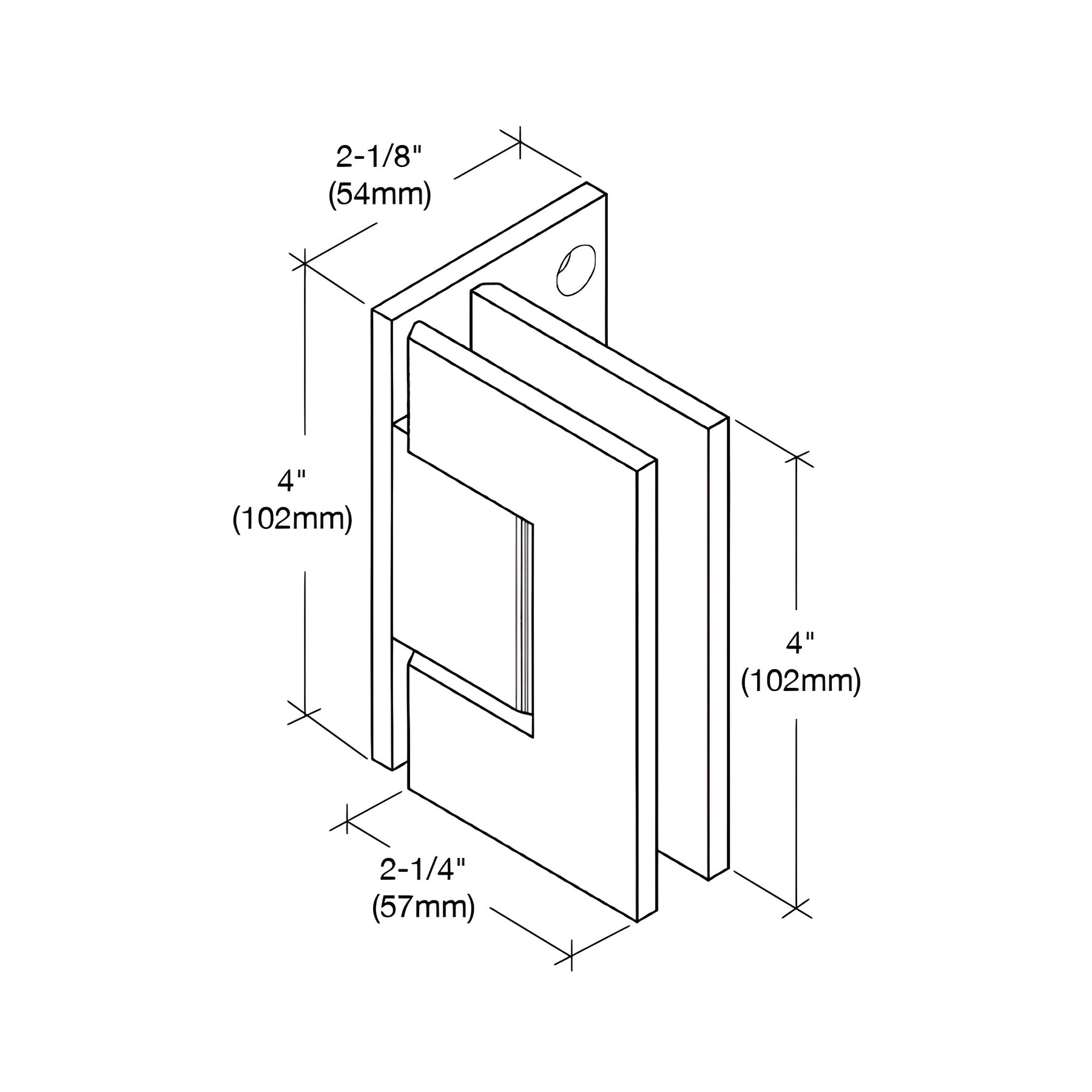

SPECIFICATIONS:
Glass Thickness: 3/8" (10 mm) to 1/2" (12 mm) tempered safety glass
Construction: Solid brass — corrosion resistant, durable for shower door hardware
Hinge Swings: 90° in and 90° out
Closing Type: Self-centering when within 15° of closed position
Cut-Out Required: Except V1E092 which requires cut-out for door and two holes for fixed panel
Includes: Gaskets, screws, and glass
