CRL Concealed Overhead Door Closer 105° Hold Open 3/4" Spindle
CRL Concealed Overhead Door Closer 105° Hold Open 3/4" Spindle
Regular price
$143.42 CAD
Regular price
Sale price
$143.42 CAD
Shipping calculated at checkout.
Quantity
Couldn't load pickup availability
Item# CRL9270
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Shipping Weight: 9.17 Pounds
Shipping Limitations: None
Minimum Order Quantity: 1
Unit of Measure: each
Compliance and Restrictions
Warning: Reproductive Harm
www.p65warnings.ca.gov
Description
Body Height
1-11/16
Body Length
11-5/8
Body Width
3-11/16
Case Quantity
6
Closer Type
Overhead Concealed
Door Height
96
Handing
Double Acting
Hold Open
105°
Includes
CRL8010FS
Maximum Door Weight
200
Recommended Door Type
Aluminum, Hollow Metal
Spindle
3/4
Spring Size
Heavy-Duty
UL Listed
Yes
Overview
- Interchangeable with all Jackson®-style overhead concealed door closers and similar brands
- Extended 3/4" (19 mm) long spindle for patch fittings, door rail hardware, or extra reach
- Adjustable models available: 90º hold-open, 105º hold-open, and no hold-open
- UL Listed for code-compliant installations
- Conveniently packaged with mounting clips, templates, and installation instructions

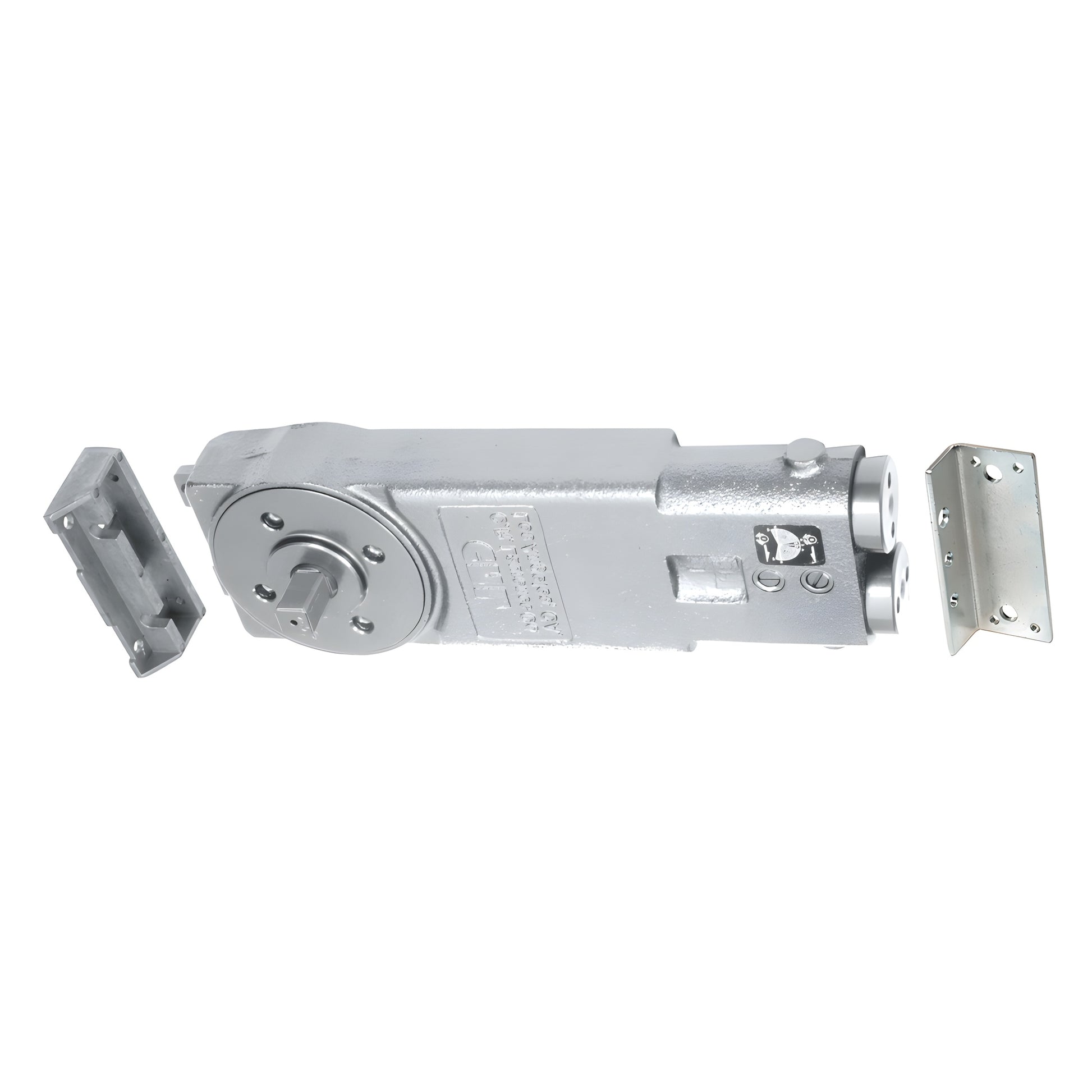

This CRL Overhead Concealed Closer for Patch Fittings and Door Rails (SKU CRL9270) features an extended 3/4" (19 mm) spindle—the preferred length for patch hardware and door rails. The closer includes dual independent adjustment valves (separate closing and latching speed controls) and special retaining rings to prevent valve screws from backing out. Mounting clips, templates, and instructions are included for faster installation.

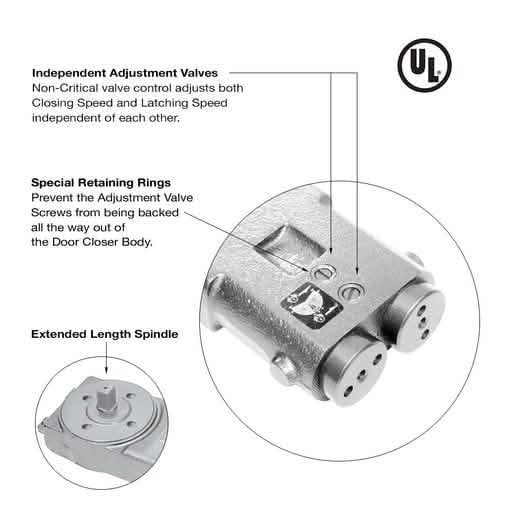

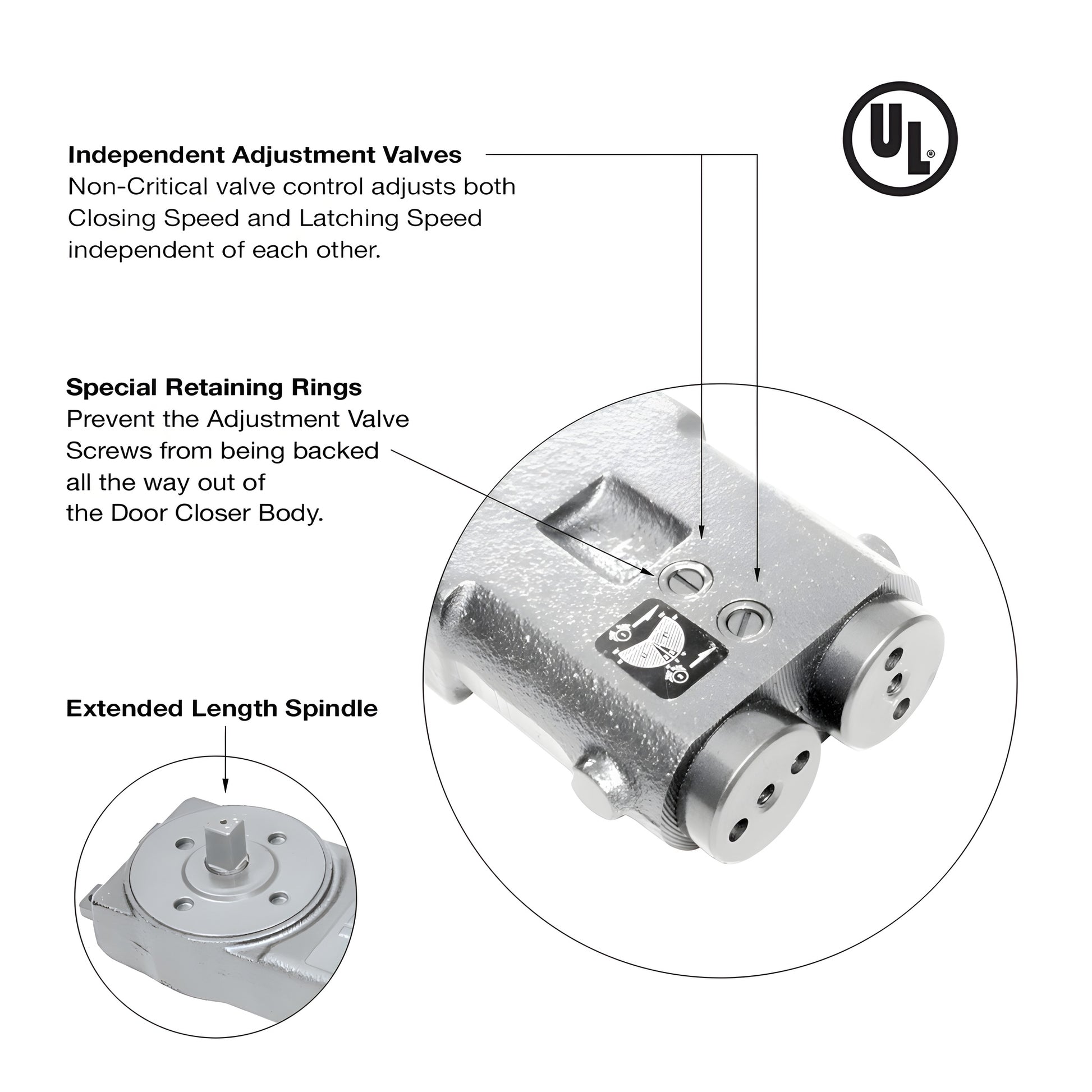

Extended Length Spindle
3/4" (19 mm) spindle for use with patch fittings, door-rail hardware, or when extra reach is required.
Independent Adjustment Valves
Non-critical valve controls let you set closing speed and latching speed independently for precise door control.
Special Retaining Rings
Designed to prevent adjustment valve screws from being fully backed out of the closer body.
Weight and Size Limitations
Door Weight: 200 lbs (91 kg)
Exterior Door Width: 42" (1.07 m)
Interior Door Width: 48" (1.22 m)
Maximum Door Height: 96" (2.44 m)
For code-compliant, concealed overhead door closer solutions compatible with patch fittings and door rails, choose CRL9270 — order now or contact us for volume pricing and installation support.
